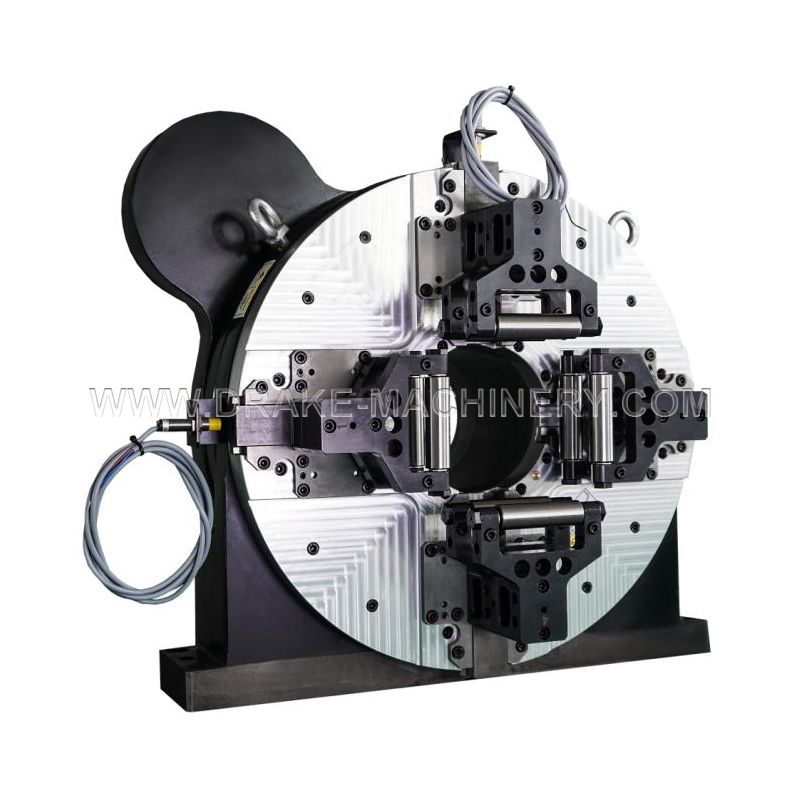

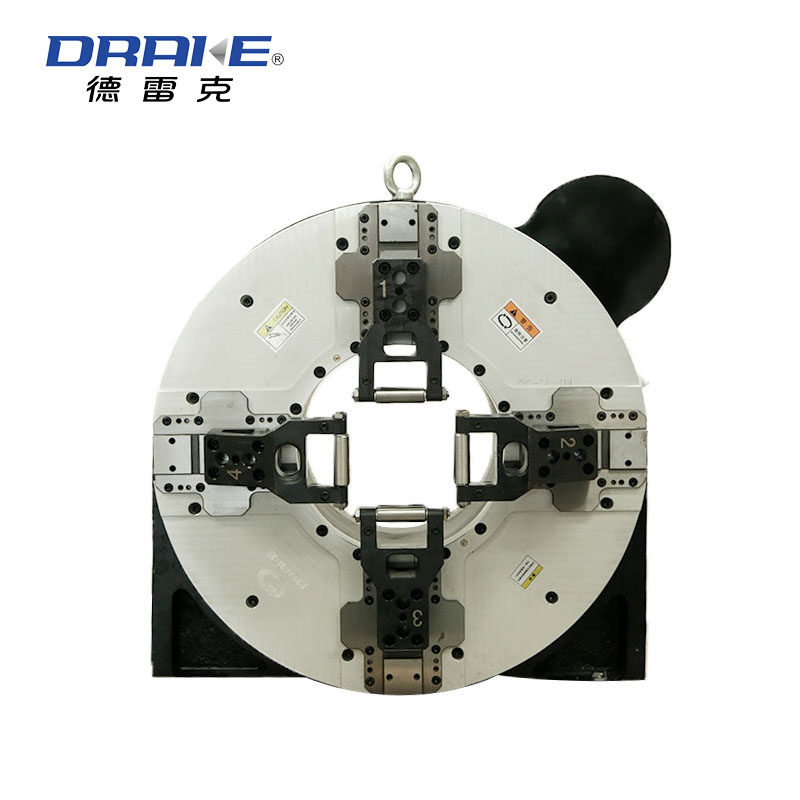

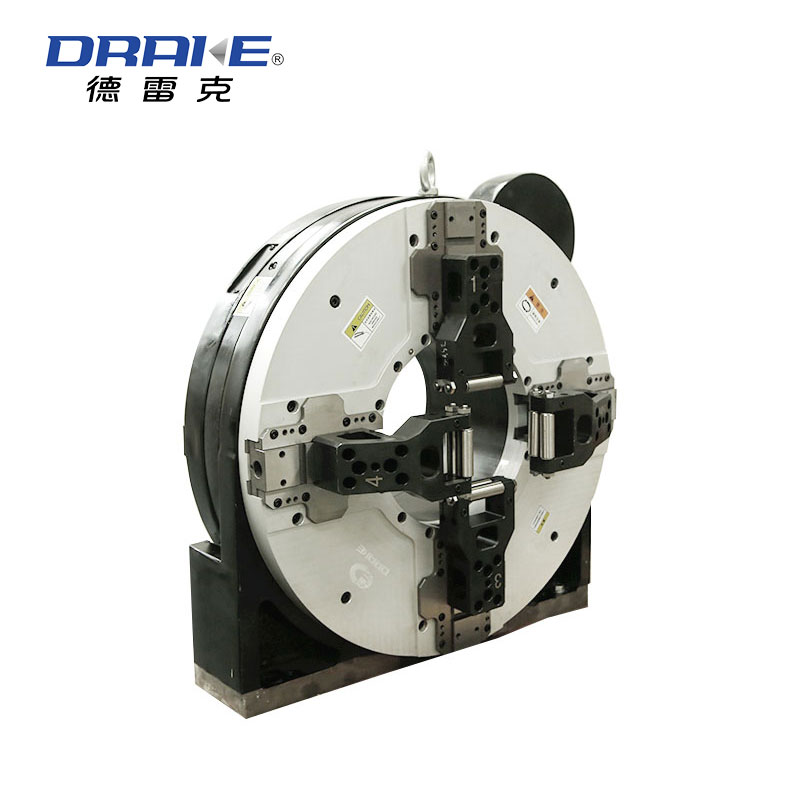

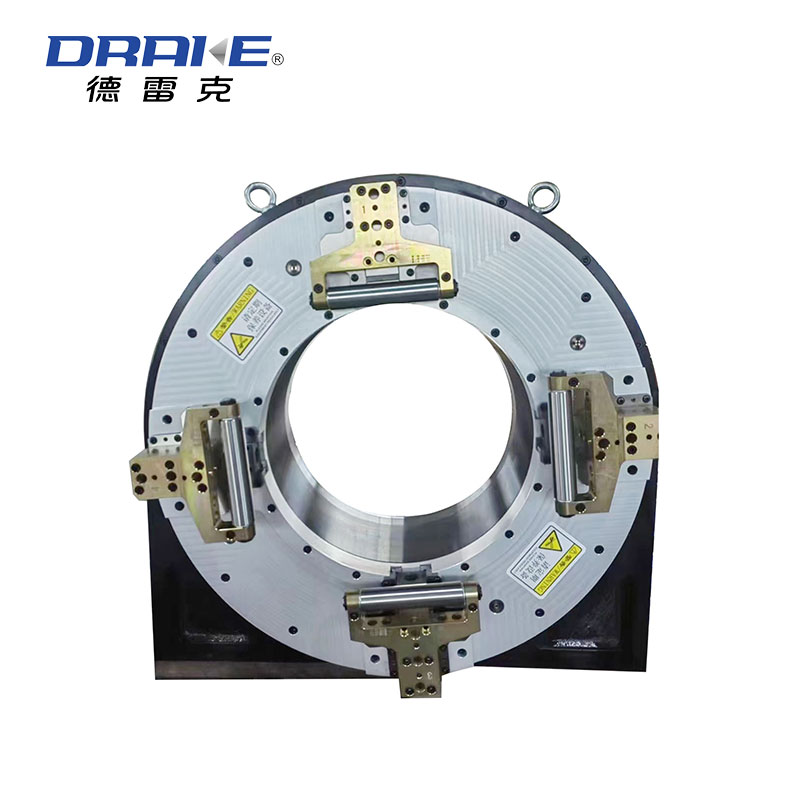

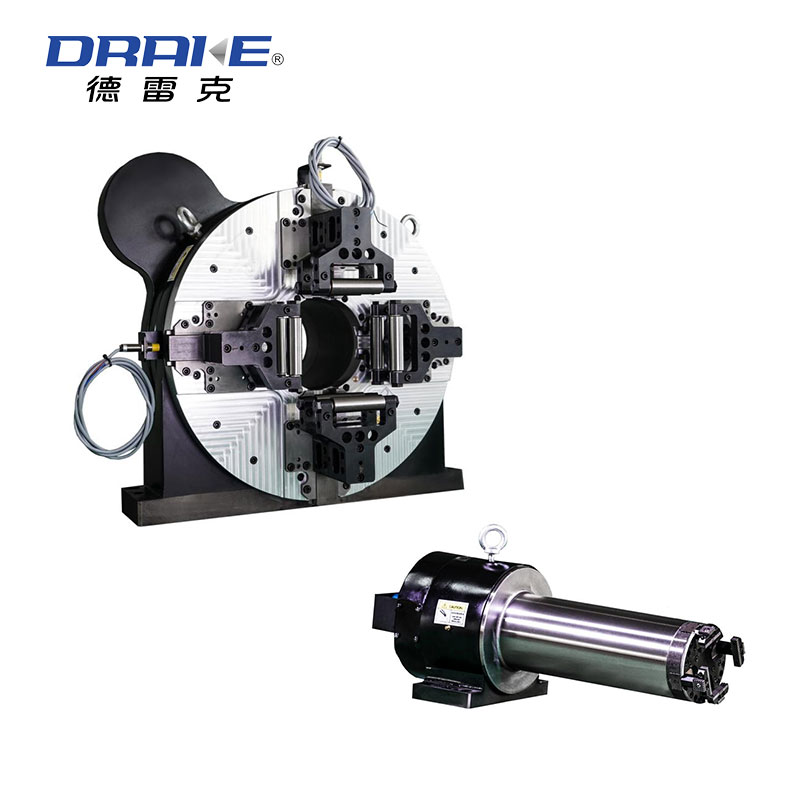

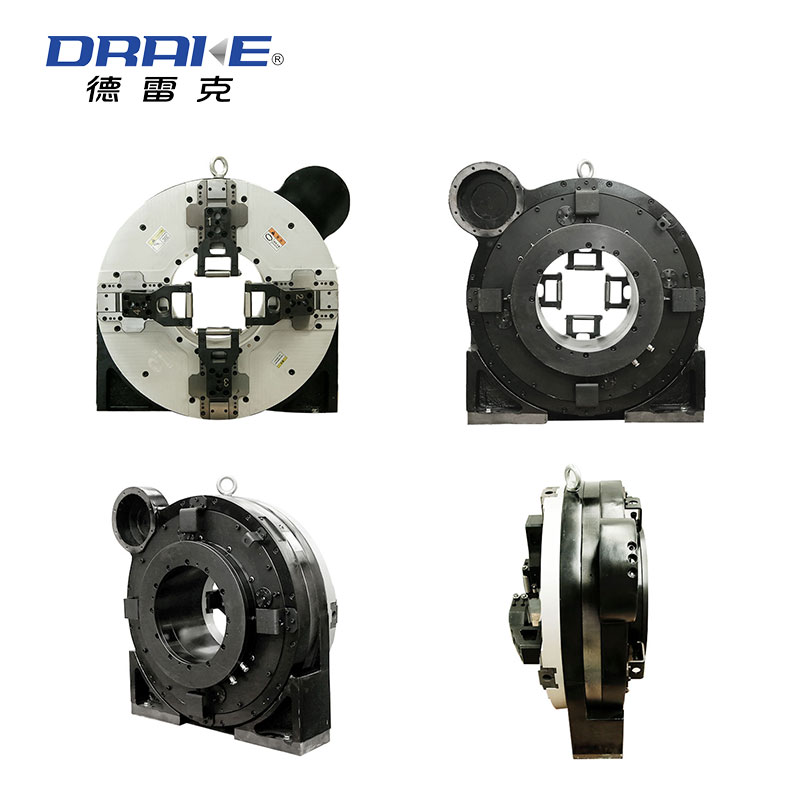

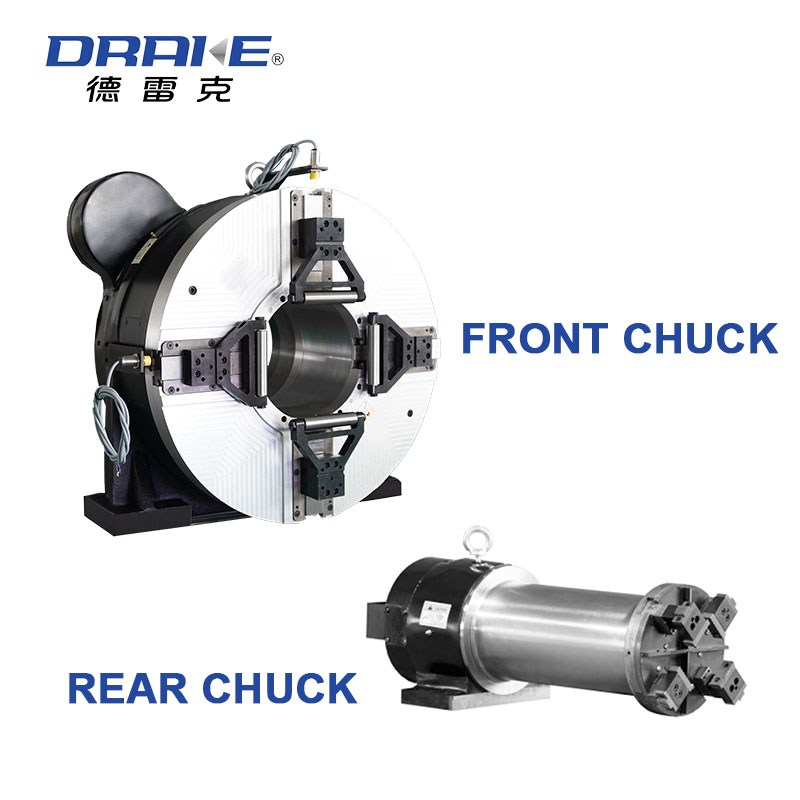

RY130 front chuck

Inquire Now Next

Product Details

Optional chuck claw:

（1） Standard claw;(2) I-beam and Channel steel jaw;(3) Double roller jaws;

（2） Claw clamping range:5-130mm

Recommended gear:

Driven gear: RY130-00-0030 driven gear (Mn2.5Z171)

Drive gear: RY130-00-0300 drive gear (Mn2.5Z57), the drive gear can be custom made.

Recommended speed reducer and motor power:

Recommended reducer: Xinbao VRT-110, reducer speed ratio: 5,7

Recommended motor power: 2.9KW (reducer speed ratio 5),1.8KW (reducer speed ratio 7)

Structural features:

1. One-piece fully enclosed helical gear transmission structure: higher dustproof performance and operational stability, longer service life and better user experience;

2. Convenient concentricity debugging and locking components: allow end users to easily correct the rotational concentricity of the whole machine, and enhance the accuracy and stability of the whole machine;

3. Standard claw opening in-position induction detection: The short tail cutting mode is safer, realizes automatic short tail cutting, and reduces the risk of collision of the whole machine;

4. Structural design of automatic chip removal and ash removal of the slider: automatic chip removal when the chuck is clamped, reducing the possibility of jamming and reducing the need for manual cleaning and maintenance;

5. Aluminum body surface oxidation process treatment: better dirt resistance and lower moment of inertia.

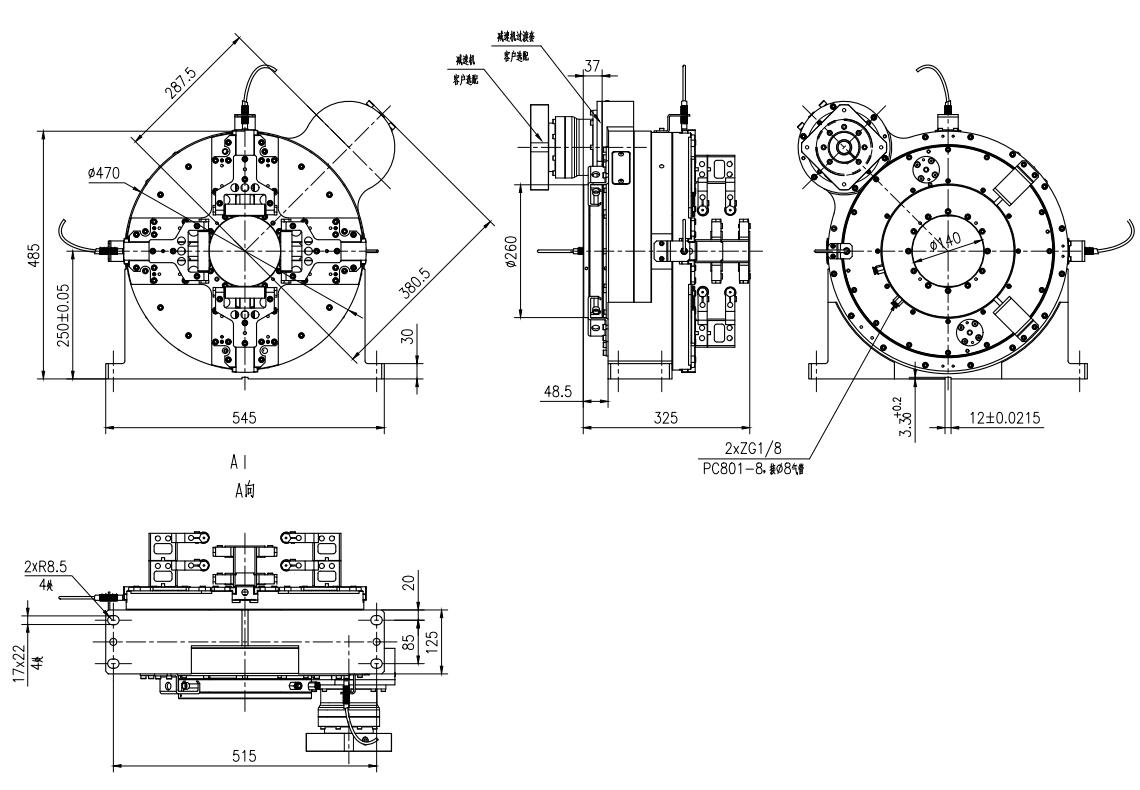

Product Size


Product Parameters

Performance Parameters
Specification	Outer Diameter( mm)	Spindle Bore(mm)	Centre-height (mm）	Total Weight （Kg）	Inertia (K g.cm ²)	Repeatability (mm)	Rotary precision (mm)


	Φ470	Φ140	250±0.05	140	200000	≤0.05	≤0.05
RY130-00-00 00	Single jaw stroke( mm)	Single Claw thrust(KN)	Processing Range(mm)	Permissible pressure (M pa)	Rated speed (rpm)	Holdup Time (h)	IP Grade
	67.5	1.5±10%	Φ5-φ130	0.3-0.9	150	12	/

Appropriative jaws can be customized according to pipe fittings
Standard option	GB / T3094-2000 Cold drawn special-shaped steel pipe, GB / T706-2008 Hot-rolled Steel, GB / T17395-2008 Seamless Steel Pipe Size, shape, weight and allowable deviation

Chuck model	RY130 Front chuck
Clamping range	5-130mm (the specification is within the allowable load-bearing range)

Standard jaw roller length	78mm
Lengthen jaws	108mm
Round Tube	5-130mm
Square Tube	The circumscribed circle is less than 130mm square tube (the maximum square tube is 92mm)

Rectangular Tube	The minimum short side is 5mm, and the circumscribed circle is less than 130mm rectangular tube (maximum size 110x75)
Oval Tube/Flat Oval Tube	The minimum short axis is 5mm, and the long axis is less than 130mm oval tube

I-beam	With standard jaws：
	With Lengthen jaws：Holds up to 10 gauge I-beams
Channel steel	With standard jaws：Maximum clamping 6.3 channel steel
Equilateral angle steel	With standard jaws：Maximum clamping equilateral angle steel No. 7
	Other specifications customization
Unequal angle steel	With extended jaws：Maximum clamping 10/6.3 unequal angle steel
	Other specifications customization
