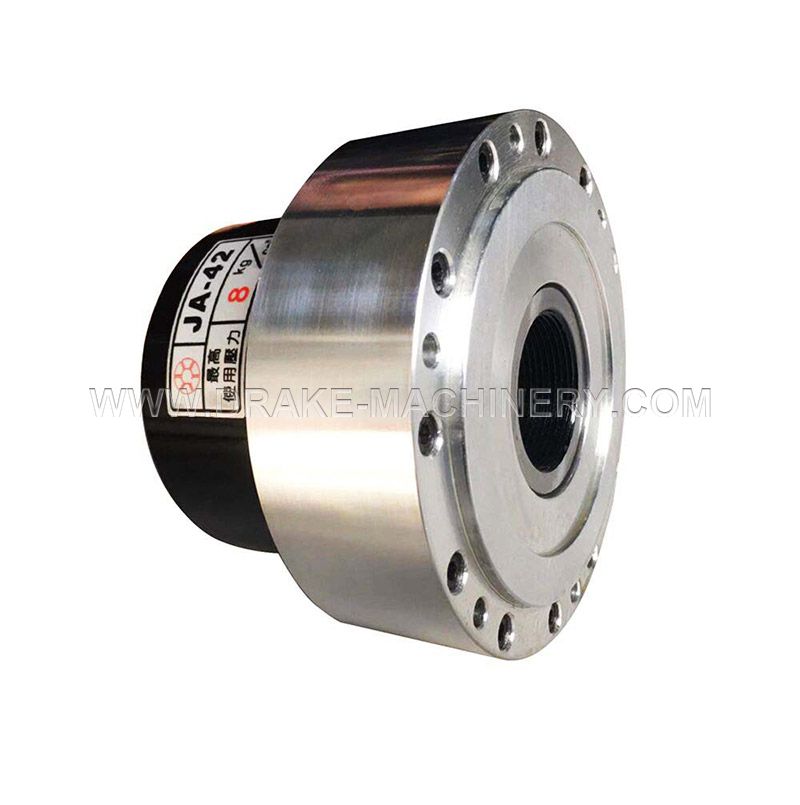

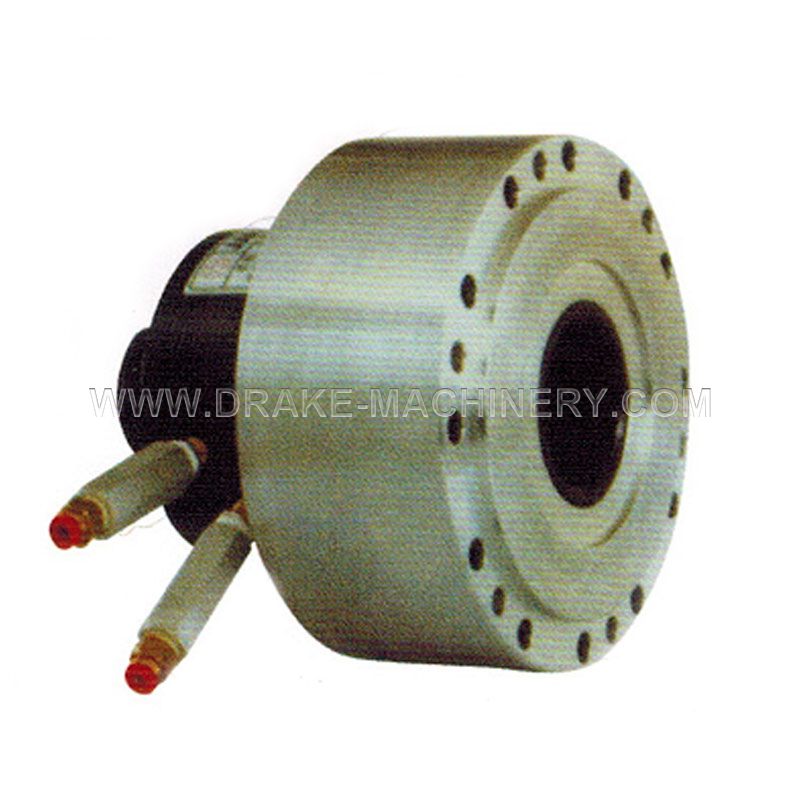

● JA series air pressure hollow rotary cylinder is high-performance double piston rotary cylinder product
● With a small amount of air leakage to Provide powerful double piston thrust and pull. Specially designed for the Three-jaw chuck and collet chuck of drive CNC lathe.
● JA Rotary cylinder drives front passive chuck by compressing air. Two forms of work: thrust and pull.
● Cylinder block does not produce heat when the pneumatic rotary cylinder works.
● The work piece does not fall off when the air source interrupted, with Spring lock inside.

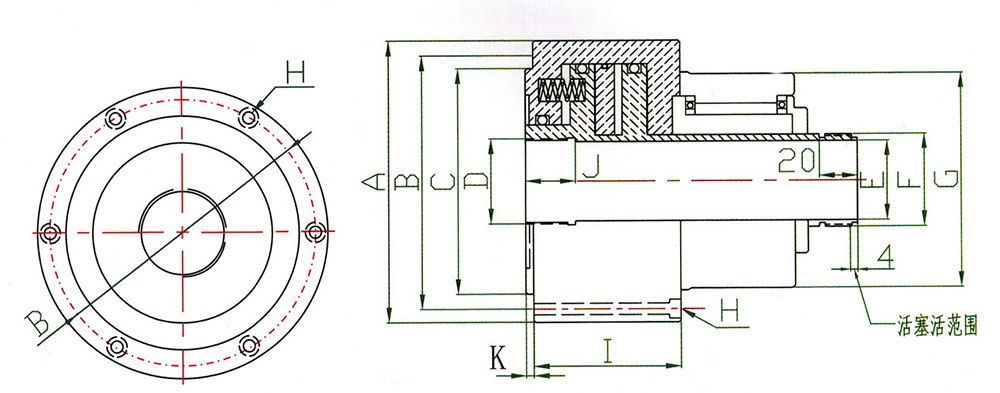

Product Size
Product Parameters
Rotary air pressure high speed collet | A | B | C | D | E | F | G | |
JA42D(P) | φ175 | φ159 | φ140 | M55×2.0 | φ42.2 | M49×1.5 | φ114 | |
JA42D(P)-150S | φ150 | φ136 | φ120 | M45×2.0 | φ42.2 | M49×1.5 | φ114 | |
Rotary air pressure high speed collet | H | I | J | K | Maximum pulling force | Air pressure used | Maximum speed | Weight |
JA42D(P) | φ8.5/φ14 | 77 | 28 | 5 | 2000 | 3-8 | 4000 | 8.5kg |
JA42D(P)-150S | φ7/φ11 | 77 | 26 | 4 | 1650 | 3-8 | 4000 | 7.6kg |
