Product Details
The segmented clamping arbors with hardened steel segments are particularly suitable for clamping workpieces with internal geometries. Main applications are turning, stock removal,
milling, tool cutting, balancing, centering, drilling, etc.

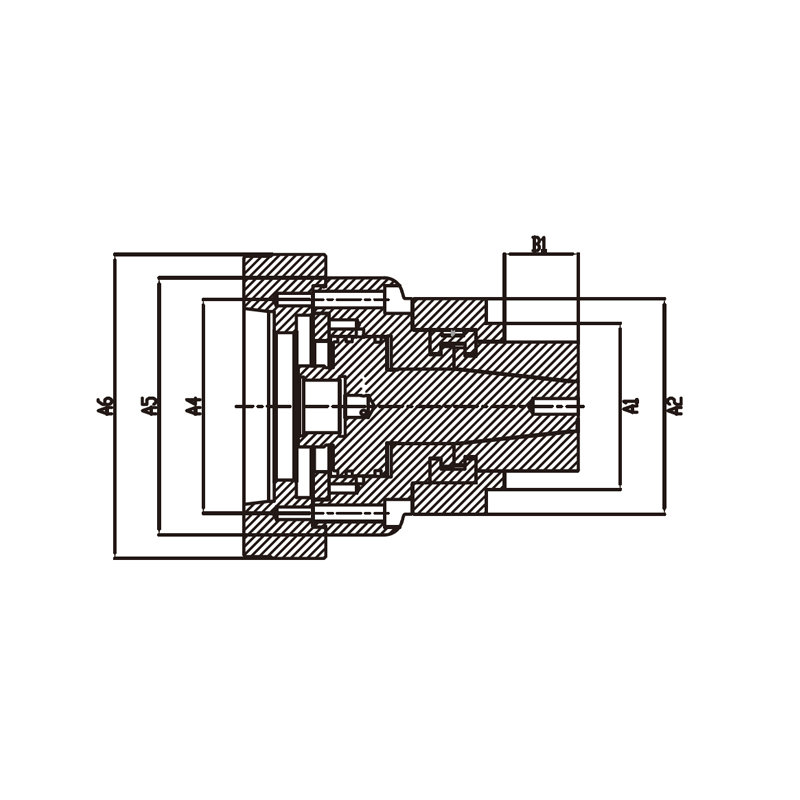

Product Size
Product Parameters
Type | Clamping(mm) | Clamp forc | Max RPM(r/min) | A1 | A2 | A3 | A4 | A5 | B1 |
T812-XXS | 8-13 | 60 | 6000 | 41 | 65 | 106 | Change with different connection flanges | 145 | 8 |
T812-XS | 13-19 | 70 | 6000 | 42 | 65 | 106 | 144-165 | 14 | |
T812-S | 16-21 | 85 | 6000 | 45 | 70 | 106 | 144-165 | 15 | |
T812-0 | 20-28 | 100 | 6000 | 54 | 90 | 139 | 144-165 | 21 | |
T812-1 | 26-38 | 110 | 6000 | 62 | 90 | 139 | 144-165 | 25 | |
T812-2 | 36-54 | 140 | 6000 | 76 | 104 | 139 | 160-210 | 40 | |
T812-3 | 50-80 | 150 | 5500 | 105 | 120 | 139 | 160-210 | 44.5 | |
T812-4 | 69-100 | 150 | 5500 | 124 | 138 | 143 | 160-210 | 52.5 | |
T812-5 | 100-130 | 150 | 4500 | 160 | 195 | 230 | 160-210 | 48 | |
T812-6 | 130-160 | 150 | 3500 | 184 | 226 | 230 | 179-280 | 56 | |
T812-7 | 160-200 | 150 | 3500 | 226 | 276 | 260 | 235-280 | 65 |
