Product Details

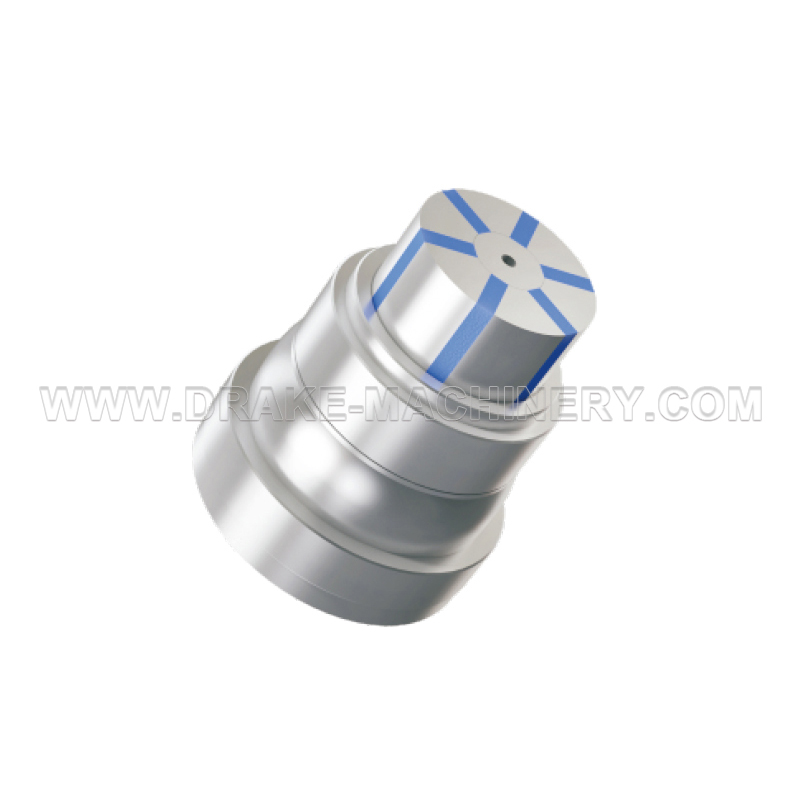

Segmented clamping mandrels with hardened steel
segments are particularly suitable for clamping
workpieces with internal geometries.
Main applications are turning, grinding, chipping, tool
cutting, balancing, centering, drilling, etc.

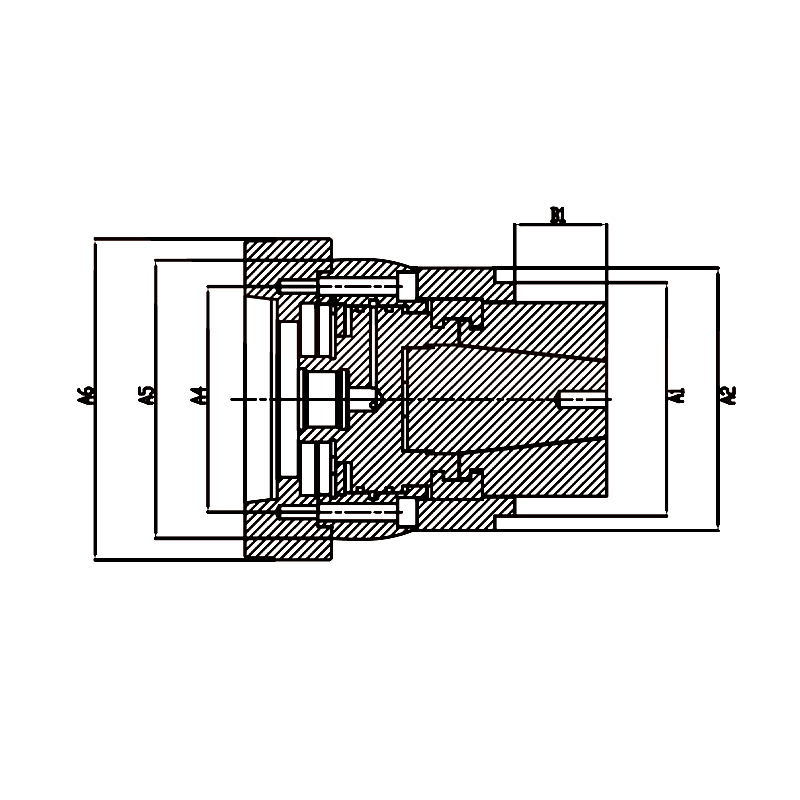

Product Size
Product Parameters
Type | Clamping(mm) | Clamp forc | Max RPM(r/min) | A1 | A2 | A3 | A4 | A5 | B1 |
T212-XXS | 8-13 | 60 | 6000 | 41 | 65 | 106 | Change with different connection flanges | 145 | 8 |
T212-XS | 13-19 | 70 | 6000 | 42 | 65 | 106 | 144-165 | 14 | |
T212-S | 16-21 | 85 | 6000 | 45 | 70 | 106 | 144-165 | 15 | |
T212-0 | 20-28 | 100 | 6000 | 54 | 90 | 139 | 144-165 | 21 | |
T212-1 | 26-38 | 110 | 6000 | 62 | 90 | 139 | 144-165 | 25 | |
T212-2 | 36-54 | 140 | 6000 | 76 | 104 | 139 | 160-210 | 40 | |
T212-3 | 50-80 | 150 | 5500 | 105 | 120 | 139 | 160-210 | 44.5 | |
T212-4 | 69-100 | 150 | 5500 | 124 | 138 | 143 | 160-210 | 52.5 | |
T212-5 | 100-130 | 150 | 4000 | 160 | 195 | 230 | 160-210 | 48 | |
T212-6 | 130-160 | 150 | 3500 | 184 | 226 | 230 | 179-280 | 56 | |
T212-7 | 160-200 | 150 | 3500 | 226 | 276 | 230 | 235-280 | 65 |
