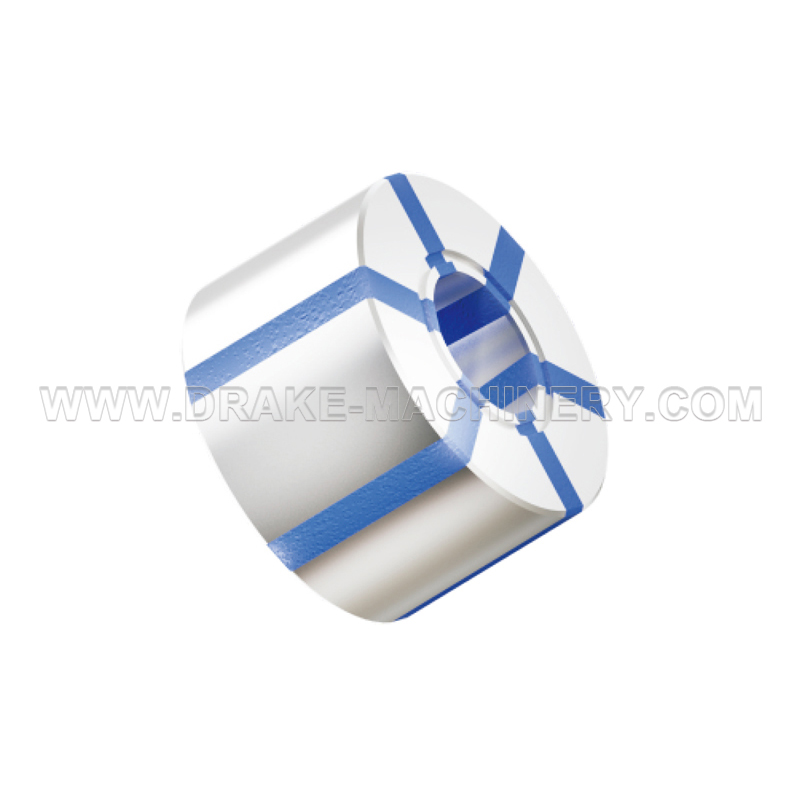

Product Details
The repeatability can reach <0.01mm.
It has parallel clamping, optimal force conversion,
strong, high clamping force, and wear resistance.

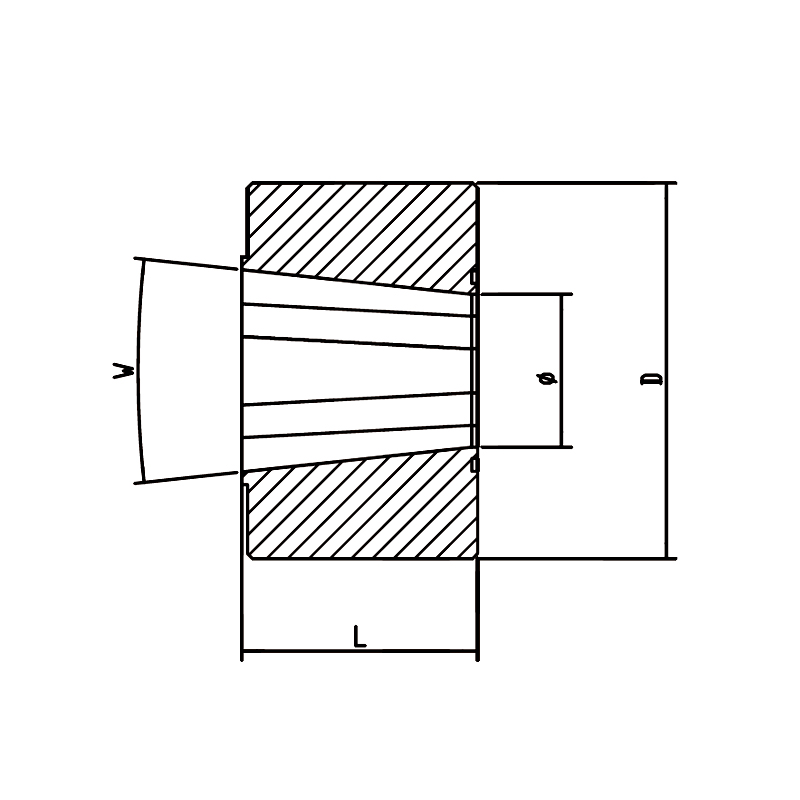

Product Size
Product Parameters
| Rubber-elastic collets T211-0 | ||||||
| Type | Taper | Slot | Groove width(mm) | Clamping dia(mm) | L(mm) Length | Clamping stroke(mm) |
| T211-0 | 12° | 3 | 6 | 20-28 | 24 | ±0.25 |
| Rubber-elastic collets T211-1 | ||||||
| Type | Taper | Slot | Groove width(mm) | Clamping dia(mm) | L(mm) Length | Clamping stroke(mm) |
| T211-1 | 12° | 3 | 6 | 26-38 | 28 | ±0.25 |
| Rubber-elastic collets T211-2 | ||||||
| Type | Taper | Slot | Groove width(mm) | Clamping dia(mm) | L(mm) Length | Clamping stroke(mm) |
| T211-2 | 12° | 6 | 6 | 36-54 | 44 | ±0.35 |
| Rubber-elastic collets T211-3 | ||||||
| Type | Taper | Slot | Groove width(mm) | Clamping dia(mm) | L(mm) Length | Clamping stroke(mm) |
| T211-3 | 12° | 6 | 8 | 50-80 | 50 | ±0.35 |
| Rubber-elastic collets T211-4 | ||||||
| Type | Taper | Slot | Groove width(mm) | Clamping dia(mm) | L(mm) Length | Clamping stroke(mm) |
| T211-4 | 12° | 6 | 10 | 69-100 | 60 | ±0.40 |
| Rubber-elastic collets T211-5 | ||||||
| Type | Taper | Slot | Groove width(mm) | Clamping dia(mm) | L(mm) Length | Clamping stroke(mm) |
| T211-5 | 12° | 6 | 10 | 100-130 | 78 | ±0.50 |
| Rubber-elastic collets T211-6 | ||||||
| Type | Taper | Slot | Groove width(mm) | Clamping dia(mm) | L(mm) Length | Clamping stroke(mm) |
| T211-6 | 12° | 6 | 10 | 130-160 | 86 | ±0.50 |
| Rubber-elastic collets T211-7 | ||||||
| Type | Taper | Slot | Groove width(mm) | Clamping dia(mm) | L(mm) Length | Clamping stroke(mm) |
| T211-7 | 12° | 8 | 12 | 160-200 | 91 | ±0.50 |
-
