Product Details

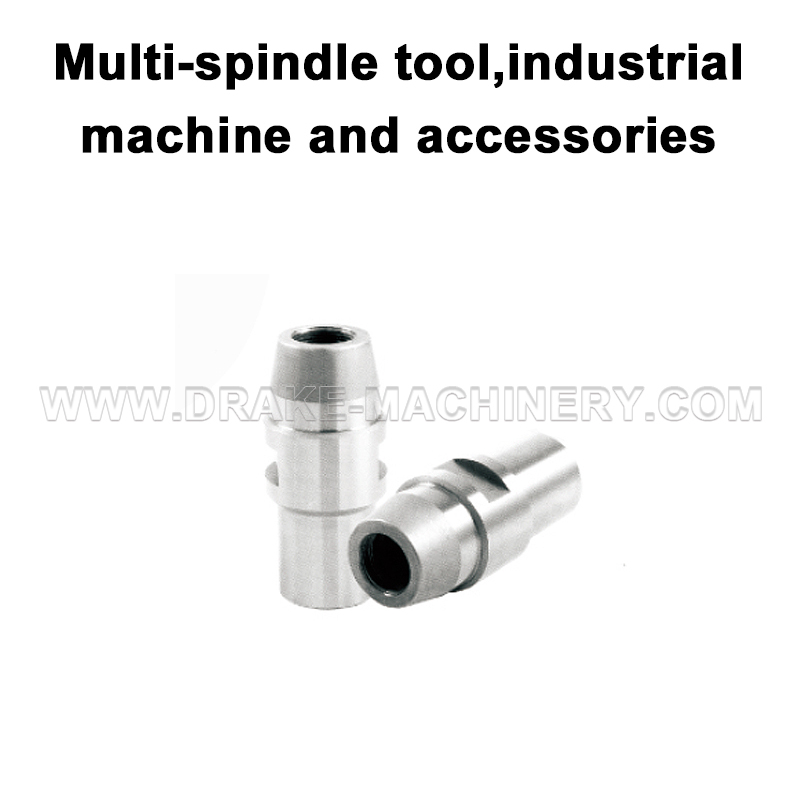

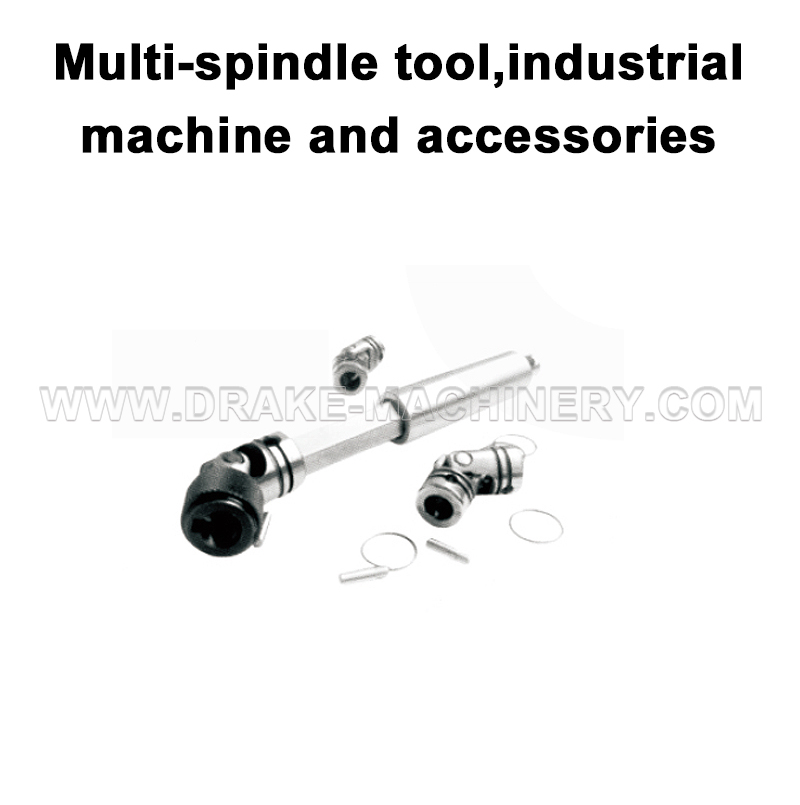

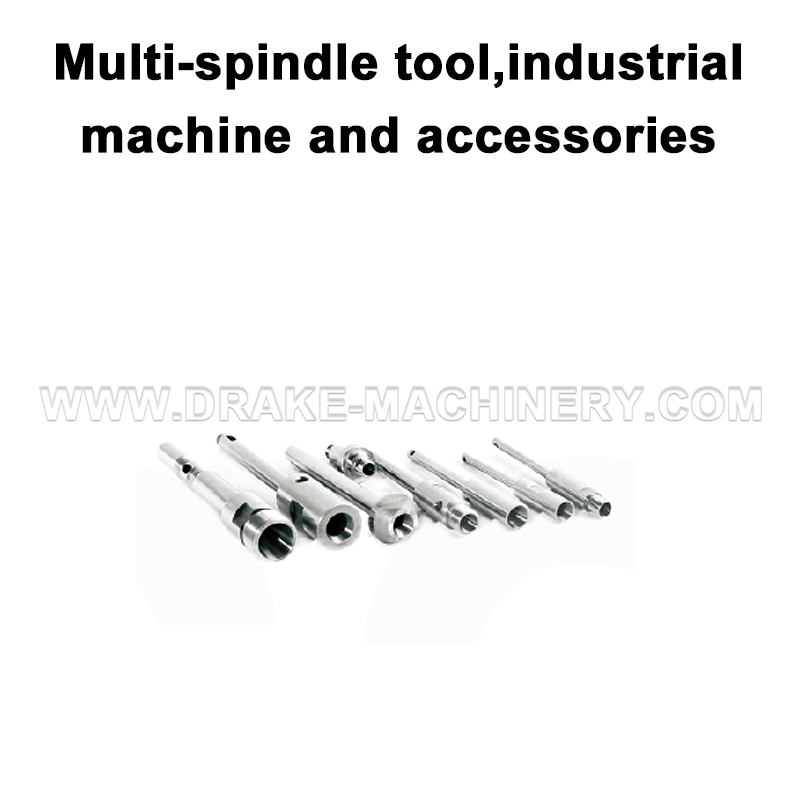

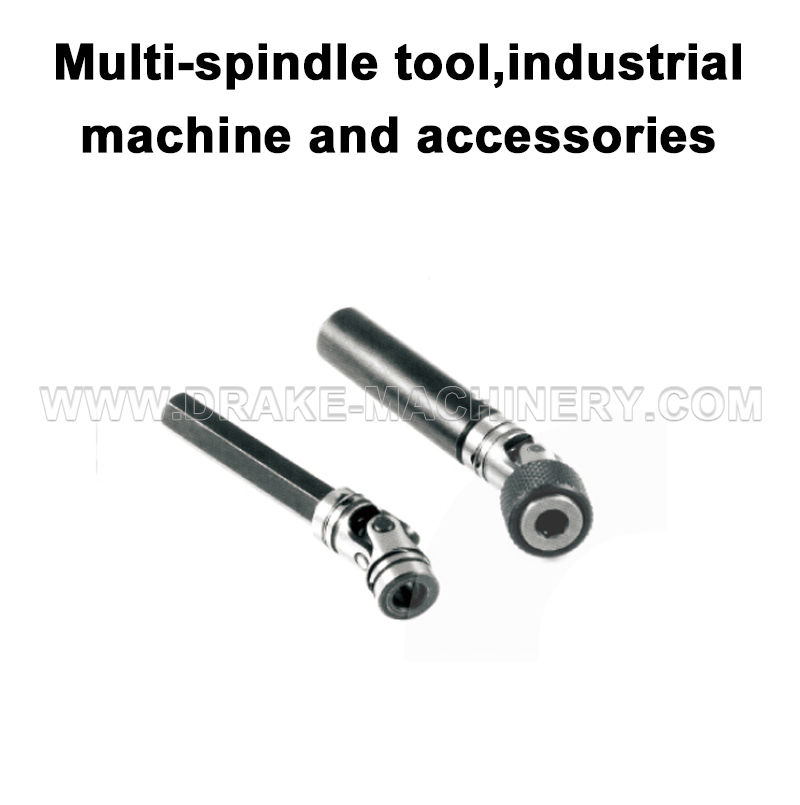

Multi-spindle tool ,industrial machine
and accessories
Product Size
None
Product Parameters
| Type | Applicable models | φD(mm) | L(mm) | Maximum clamping capacity | Collet Type |
| STAR RNC-16# | RNC16 SE16 SH16 SR16 | φ20 | 67 | φ16 | Steel/Cemented Carbide |
| STAR JNC-16# | JNC20 SR20 VNC20 SV20 | φ26 | 67 | φ20 | Steel/Cemented Carbide |
| STAR JNC-32# | JNC32 JNC25 KNC25 KNC32 | φ37 | 92 | φ32 | Steel/Cemented Carbide |
| TORNOS M7 | M7 MS7 | φ10 | 45 | φ7 | Steel/Cemented Carbide |
| TORNOS R-10 | R10 M10 DECO2000-10 | φ15 | 64 | φ10 | Steel/Cemented Carbide |
| TORNOS R-16 | R16 | φ20 | 67 | φ16 | Steel/Cemented Carbide |
| TORNOS R-20 | ENC163 DECO2000-20 Hanwha20# | φ25 | 77 | φ20 | Steel/Cemented Carbide |
| TORNOS MR-32 | MR-32 | φ37 | 92 | φ30 | Steel/Cemented Carbide |
| DECO2000-13/16 | ENC162 | φ20 | 54 | φ16 | Steel/Cemented Carbide |
-
