Product Details

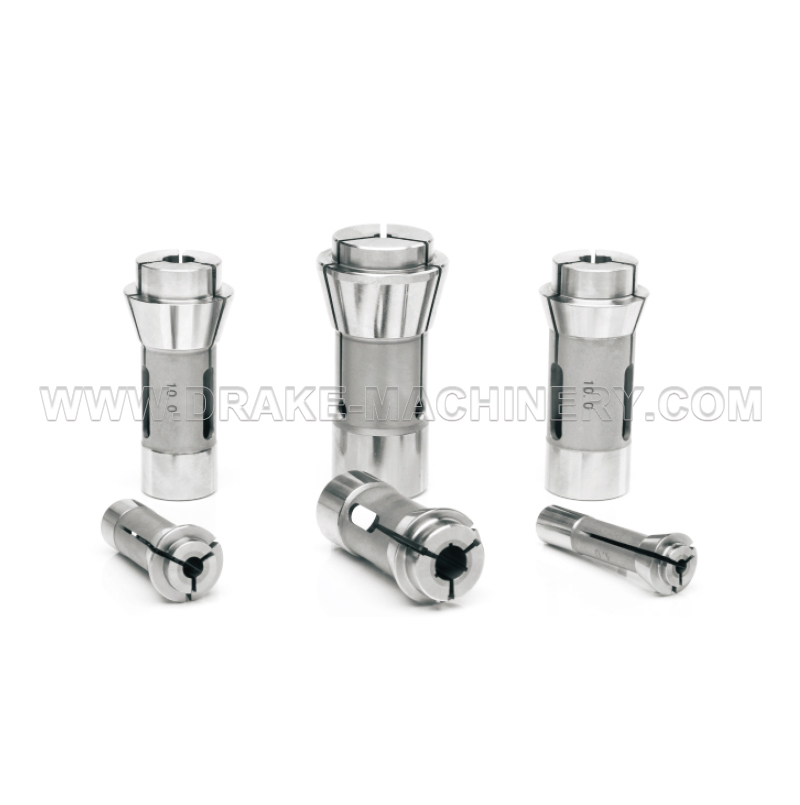

CNC lathe chuck series 01
Product Size
None
Product Parameters
| Type | Applicable models | φD(mm) | L(mm) | Maximum clamping capacity | Collet Type |
| NOMURA P8# | NSP8410 NSP8420 King Lord | φ12 | 58 | φ8 | Steel/Cemented Carbide |
| NOMURA P10# | NSP1053 TsugamiBO12 King Lord | φ16 | 50.5 | φ10 | Steel/Cemented Carbide |
| NOMURA P16# | NSP1653 TsugamiBO12 King Lord | φ20 | 67 | φ16 | Steel/Cemented Carbide |
| NOMURA P20# | NH-20KF | φ26 | 67 | φ20 | Steel/Cemented Carbide |
| NOMURA P25# | NH-25K NHC-P2553 | φ32 | 84.5 | φ25 | Steel/Cemented Carbide |
| TSUGAMI 7# | T7 B007 BM07 | φ10 | 46 | φ7 | Steel/Cemented Carbide |
| TSUGAMI L-10# | L-10 NP-11 NT-11 | φ14 | 47 | φ10 | Steel/Cemented Carbide |
| TSUGAMI NP17# | NP17 NT17 NP16 NT16 | φ23.8 | 62 | φ17 | Steel/Cemented Carbide |
| TSUGAMI BS-20# Tsugami（BO18)A axis | BO18 S20 BS18 | φ28 | 77 | φ20 | Steel/Cemented Carbide |
| TSUGAMI BS-20# Tsugami（BO18)B axis | BO18 S20 BS18 | φ25 | 77 | φ20 | Steel/Cemented Carbide |
| TSUGAMI BS-26# A AXIS | BS26 S25 | φ33 | 80 | φ25 | Steel/Cemented Carbide |
| TSUGAMI BS-26# B AXIS | BS26 S25 | φ30 | 80 | φ25 | Steel/Cemented Carbide |
| CITIZEN B-12# | B-12 TsugamiBO12 Hanwha12# | φ16 | 62 | φ12 | Steel/Cemented Carbide |
| CITIZEN SB16# | L16 L20 F16 F20 | φ20 | 67 | φ16 | Steel/Cemented Carbide |
| CITIZEN BL-20# | BL20 | φ33 | 100 | φ25 | Steel/Cemented Carbide |
| CITIZEN L-20# | L20 M16 G20 E20 | φ26 | 67 | φ20 | Steel/Cemented Carbide |
| CITIZEN F-25# | L25 F25 E25 | φ30 | 78 | φ25 | Steel/Cemented Carbide |
| CITIZEN VNC-32# | VNC-32# Qifeng | φ37 | 92 | φ30 | Steel/Cemented Carbide |
| STAR SJ-8R | SJ-8R | φ12 | 51 | φ8 | Steel/Cemented Carbide |
| STAR SNC10# | JNC10 SNC10 RNC10 | φ15 | 64 | φ10 | Steel/Cemented Carbide |
| STAR SE-12# | S13 VNC12 SJ15 | φ18 | 67 | φ14 | Steel/Cemented Carbide |
-
