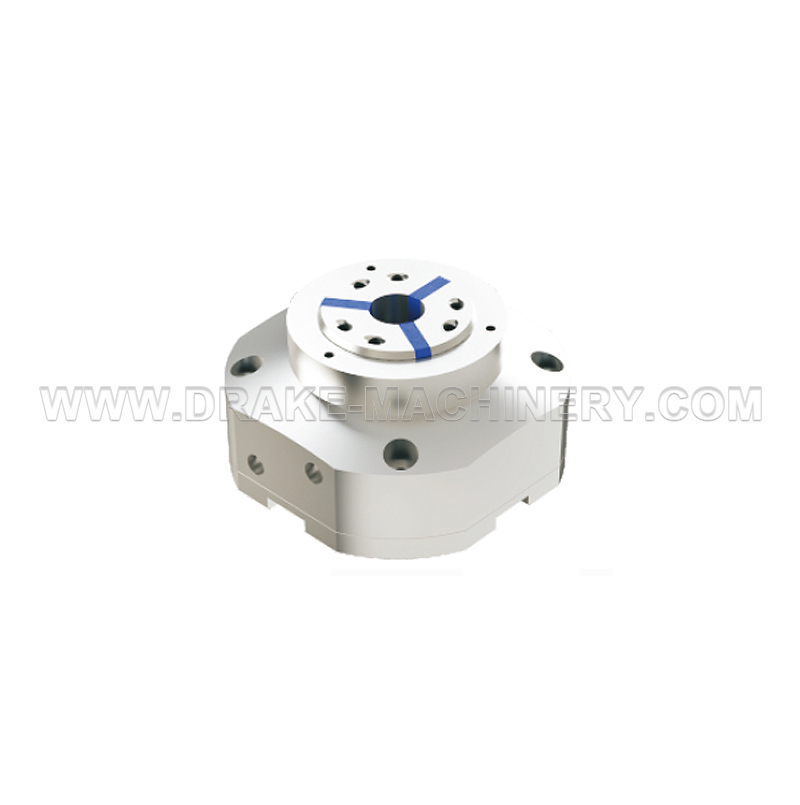

Product Details
Suitable for drilling machines, milling machines or cutting centers
High precision and high rigidity structure
No need to use a separate vertical hydraulic cylinder
Easy to install, just connect the pipes and start processing.
Equipped with RG system rubber clamps, mold change is simple and fast
Provides two oil supply modes: side pipes and bottom oil plate.

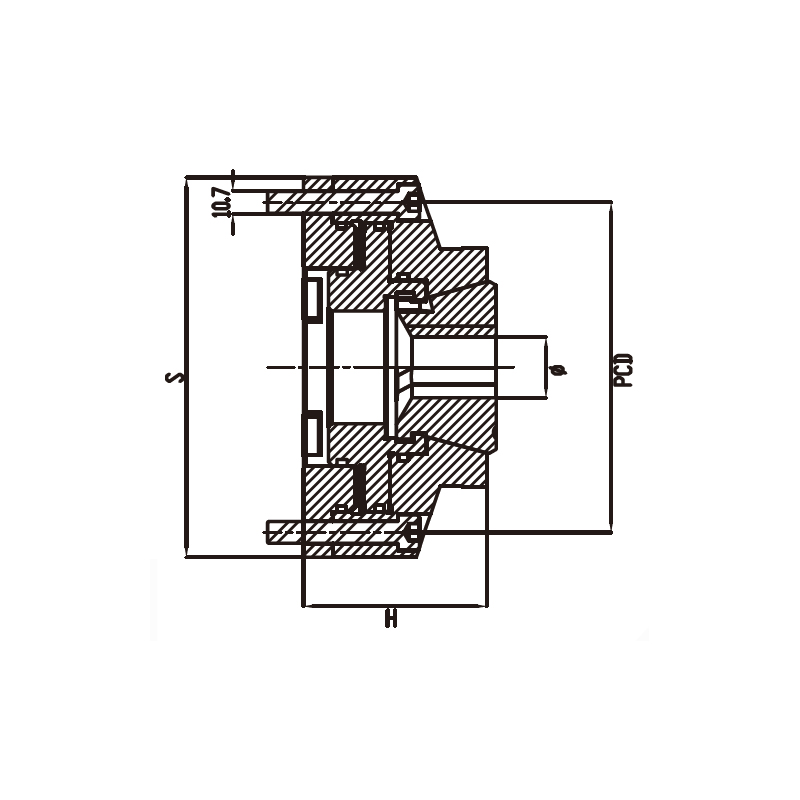

Product Size
Product Parameters
| Type | Clamping(mm) | Clamp forc | S | H | PCD | M |
| L-SK42 | 4-42 | 80 | 154 | 120 | 157 | 8*M8 |
| L-SK52 | 4-52 | 105 | 154 | 120 | 157 | 8*M8 |
| L-SK65 | 4-65 | 105 | 174 | 130 | 180 | 8*M8 |
| L-SK80 | 5-80 | 110 | 186 | 130 | 194 | 8*M8 |
| L-SK100 | 16-100 | 130 | 229 | May-00 | 240 | 8*M8 |
-
