Product Details

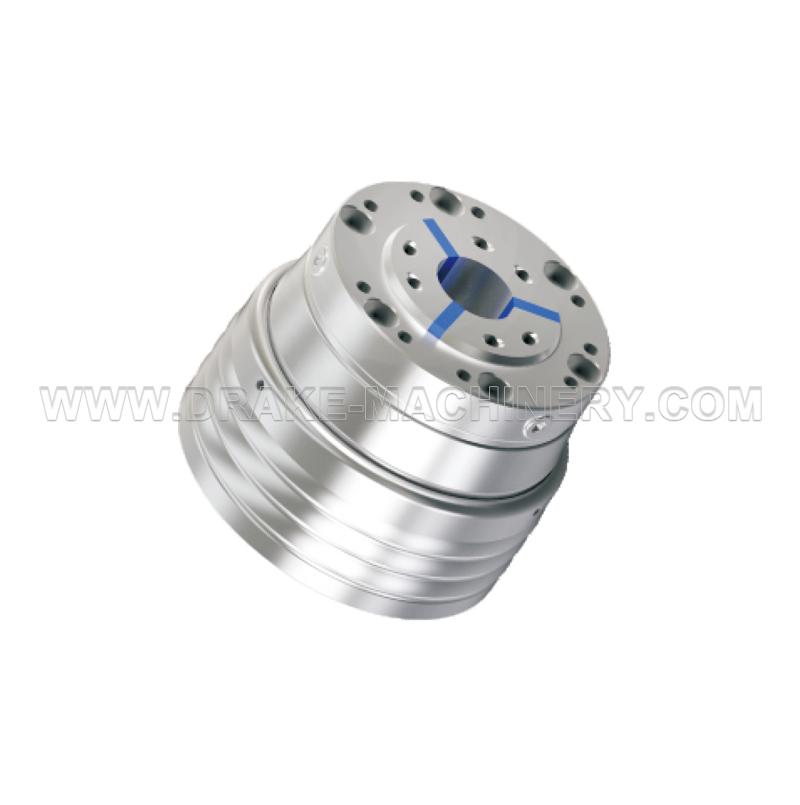

Pull-back chuck with through hole for bar processing: The clip is pulled into the chuck during clamping, providing high
clamping force and high rigidity. The chuck works very
precisely Easy to set up, high running accuracy.

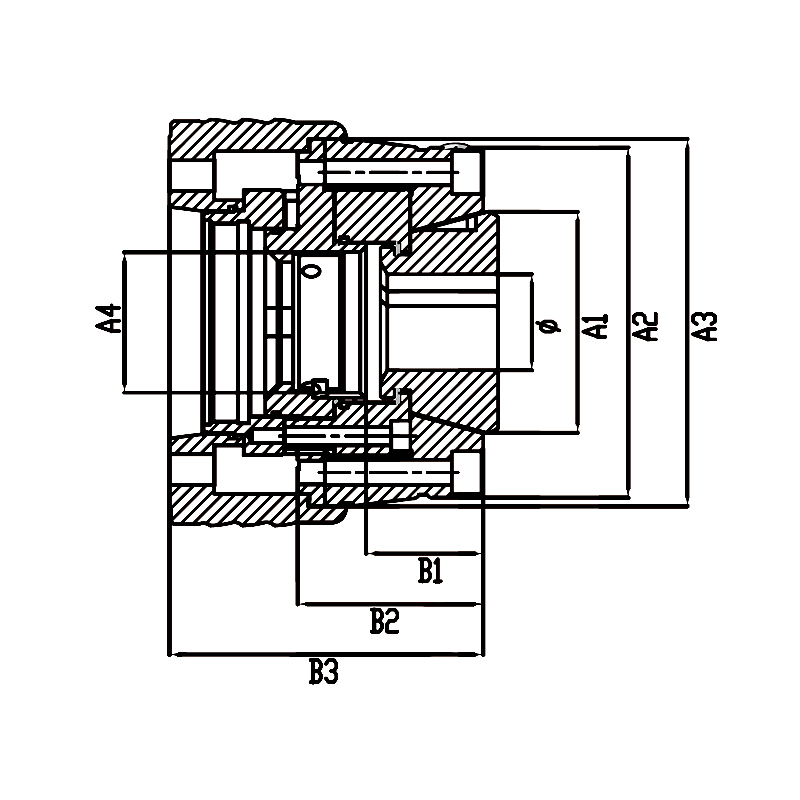

Product Size
Product Parameters
| Type | Clamping(mm) | Clamp forc | Max RPM(r/min) | A1 | A2 | A3 | A4 | A5 | B1 | B2 | B3 |
| SK32 | 4-32 | 60 | 7000 | 108 | 145 | Change with different connection flanges | M60*2 | 34 | 45 | 75 | 110 |
| SK42 | 4-42 | 70 | 6000 | 108 | 145 | M60*2 | 45 | 45 | 75 | 110 | |
| SK52 | 4-52 | 85 | 6000 | 108 | 145 | M60*2 | 53 | 45 | 75 | 110 | |
| SK65 | 4-65 | 100 | 6000 | 135 | 170 | M75*2 | 66 | 56 | 87 | 120 | |
| SK80 | 5-80 | 110 | 5000 | 135 | 170 | M75*2 | 81 | 56 | 87 | 120 | |
| SK100 | 16-100 | 140 | 4500 | 175 | 217 | M80*2 | 104.5 | 65 | 105 | 142 | |
| SK120 | 20-120 | 150 | 4000 | 235 | 246 | M85*2 | 125 | 28 | 103 | 142 | |
| SK125 | 20-125 | 150 | 4000 | 235 | 246 | M85*2 | 130 | 28 | 103 | 142 |
-
