Product Details

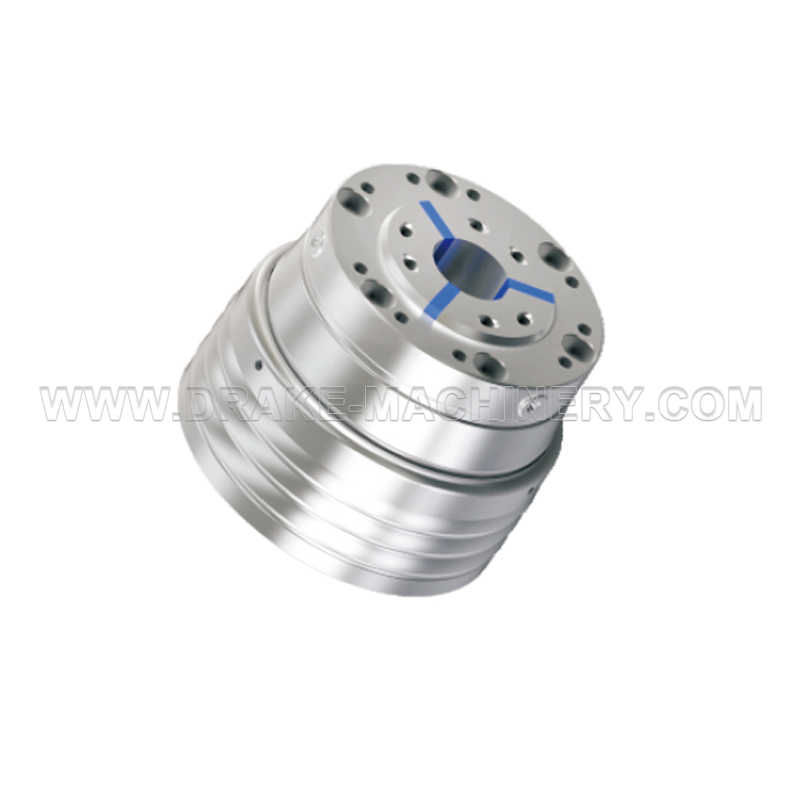

Same as KSKF, but with an additional stop in the chuck body to provide high clamping force and high rigidity. Due to the axial pulling action, the workpiece is pulled towards the stop to provide additional workpiece support. Therefore, KSKF-A type is suitable for short clamping work.

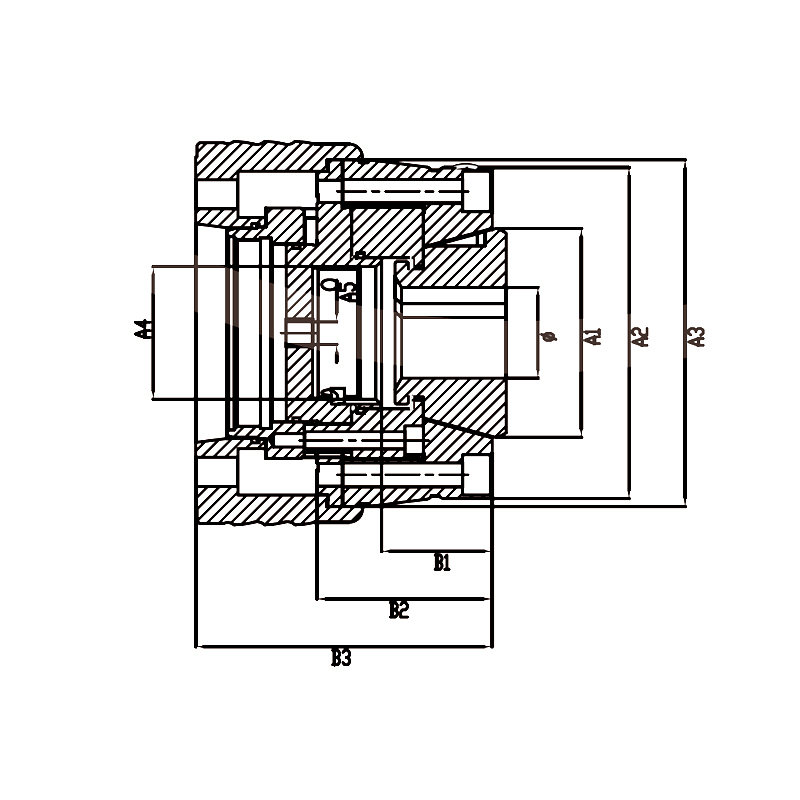

Product Size
Product Parameters
| Type | Clamping(mm) | Clamp forc | Max RPM(r/min) | A1 | A2 | A3 | A4 | A5 | B1 | B2 | B3 |
| SK32 | 4-32 | 60 | 7000 | 108 | 145 | Change with different connection flanges | M60*2 | M10 | 45 | 75 | 110 |
| SK42 | 4-42 | 70 | 6000 | 108 | 145 | M60*2 | M10 | 45 | 75 | 110 | |
| SK52 | 4-52 | 85 | 6000 | 108 | 145 | M60*2 | M10 | 45 | 75 | 110 | |
| SK65 | 4-65 | 100 | 6000 | 135 | 170 | M75*2 | M12 | 56 | 87 | 120 | |
| SK80 | 5-80 | 110 | 5000 | 135 | 170 | M75*2 | M12 | 56 | 87 | 120 | |
| SK100 | 16-100 | 140 | 4500 | 175 | 217 | M80*2 | M12 | 65 | 105 | 142 | |
| SK120 | 20-120 | 150 | 4000 | 235 | 246 | M85*2 | M16 | 28 | 103 | 142 | |
| SK125 | 20-125 | 150 | 4000 | 235 | 246 | M85*2 | M16 | 28 | 103 | 142 |
-
