Product Details

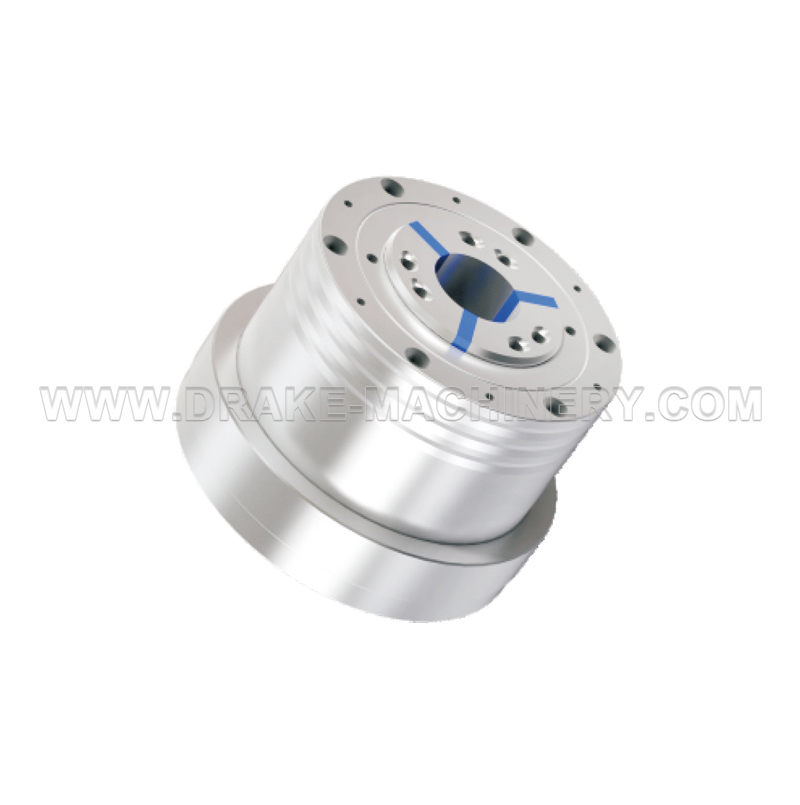

The KSKF-AF type is equipped with a fixed collet and can be used for through-hole and stop clamping. The pressure sleeve is pushed through the axially fixed collet. The clamping force of the KSKF-AF type is less than that of the KSKF and KSKF-A types.

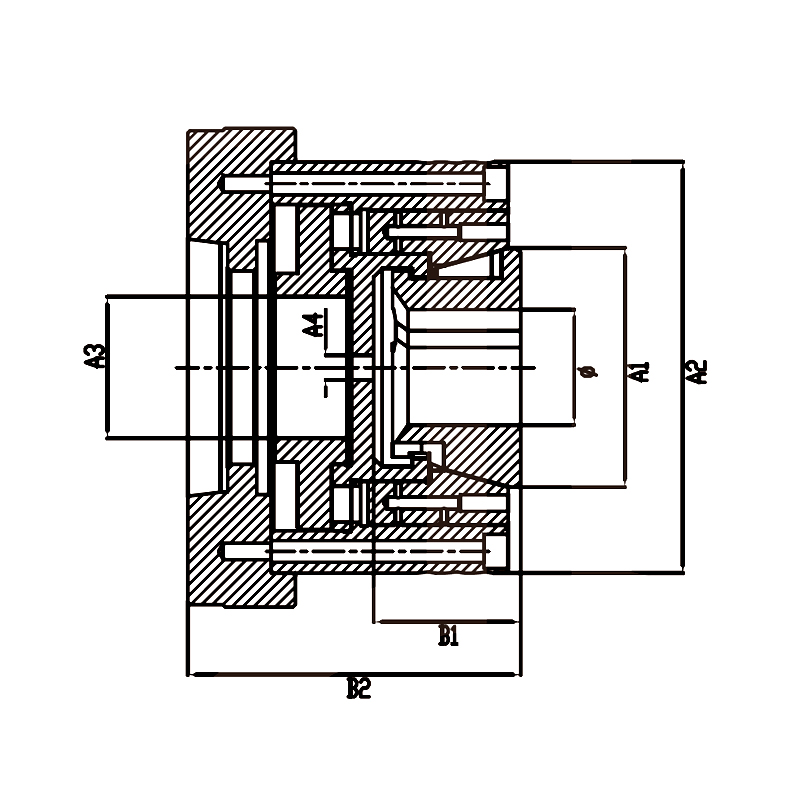

Product Size
Product Parameters
Type | Clamping(mm) | Clamp forc | Max RPM(r/min) | A1 | A2 | A3 | A4 | B1 | B2 |
SK32 | 4-32 | 60 | 7000 | 108 | 145 | M60*2 | M10 | 60 | 120 |
SK42 | 4-42 | 70 | 6000 | 108 | 144-165 | M60*2 | M10 | 61.5 | 115-122 |
SK52 | 4-52 | 85 | 6000 | 108 | 144-165 | M60*2 | M10 | 61.5 | 115-122 |
SK65 | 4-65 | 100 | 6000 | 135 | 160-210 | M75*2 | M12 | 66 | 115-122 |
SK80 | 5-80 | 110 | 5000 | 135 | 179-210 | M75*2 | M12 | 71.5 | 145 |
SK100 | 16-100 | 140 | 4500 | 175 | 235-280 | M80*2 | M12 | 78.5 | 155-165 |
SK120 | 20-120 | 150 | 4000 | 235 | M85*2 | M16 | |||
SK125 | 20-125 | 150 | 4000 | 235 | M85*2 | M16 |
