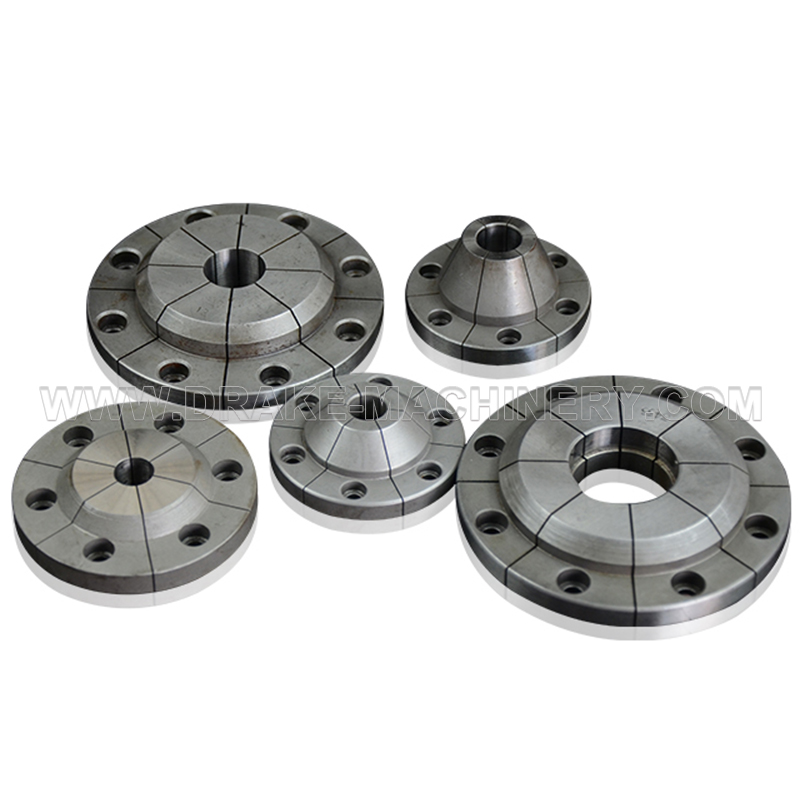

JD Ultra Precision Diaphragm Collet

Inquire Now Next

Product Details

Product Features:

Repeatability is 1μ or less.

Clamping accuracy of up to 2μ.

The one-piece structure has a permanent precision life.

There are two ways of internal clamping and external clamping.

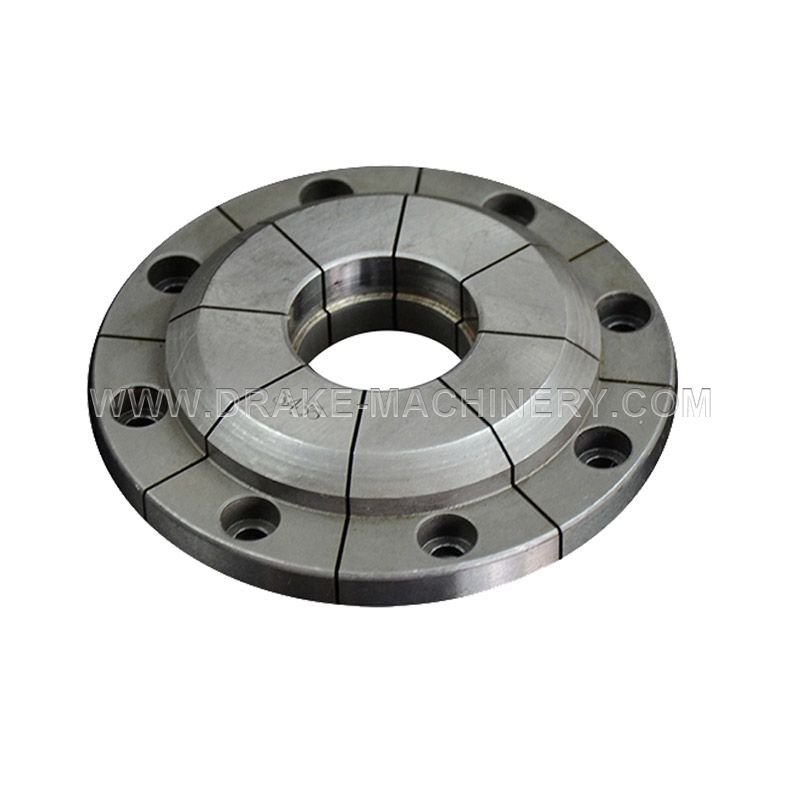

Ultra Precision Diaphragm Collets are specialized workholding devices used in high-precision machining applications. They are designed to securely grip delicate or precise workpieces with exceptional accuracy and repeatability. These collets are commonly utilized in industries such as aerospace, medical devices, and precision instrument manufacturing, where maintaining tight tolerances is crucial.

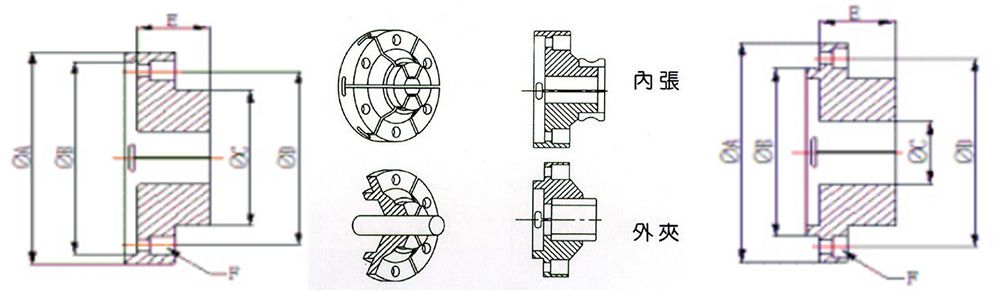

Product Size

JD Ultra Precision Diaphragm Collet

Product Parameters

Discover the CNC collet chuck model that suits your requirements from the following parameters. As a leading collet chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!

Model/Spec.	JD-60		JD-70		JD-100		JD-150
Clamping method	External type	Internal type	External type	Internal type	External type	Internal type	External type	Internal type
A	65	70	75	80	105	110	155	160
B	45	60	50	70	80	100	120	150
C	2-60	6-80	3-100	6-140	3-150	6-170	5-200	10-220
D	52	52	60	60	90	90	135	135
E	20	20	22	22	29	29	35	35
F	6-M4	6-M4	6-M5	6-M5	8-M5	8-M5	8-M6	8-M6
★The above product data is for reference only, can be changed according to the needs of the workpiece, and can be customized according to the workpiece and processing requirements. ★ Product continuous improvement, please contact us if there are any changes to this catalogue parameter. Subject to final confirmation parameters!
