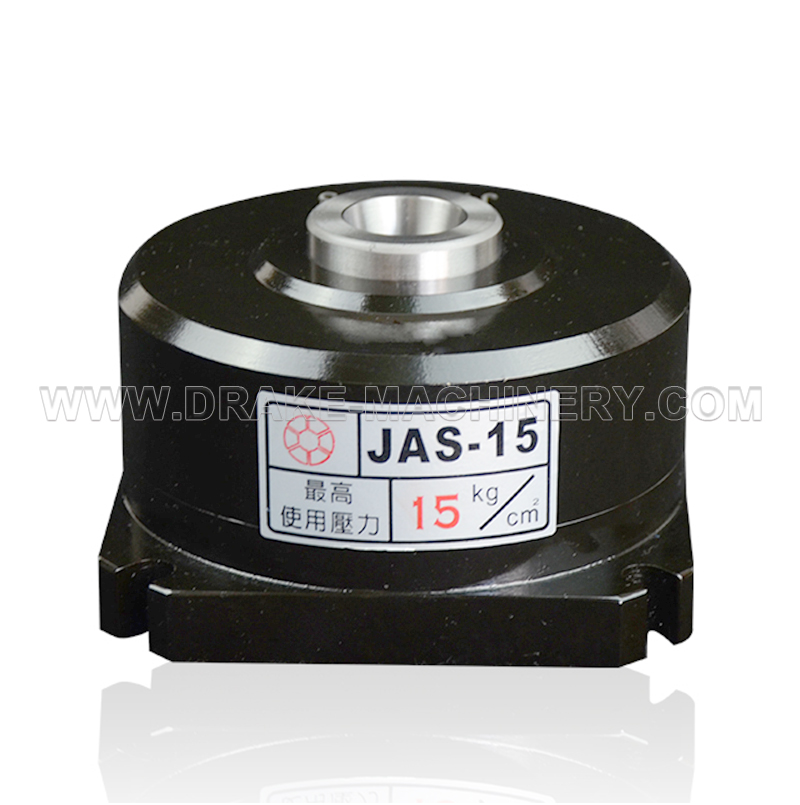

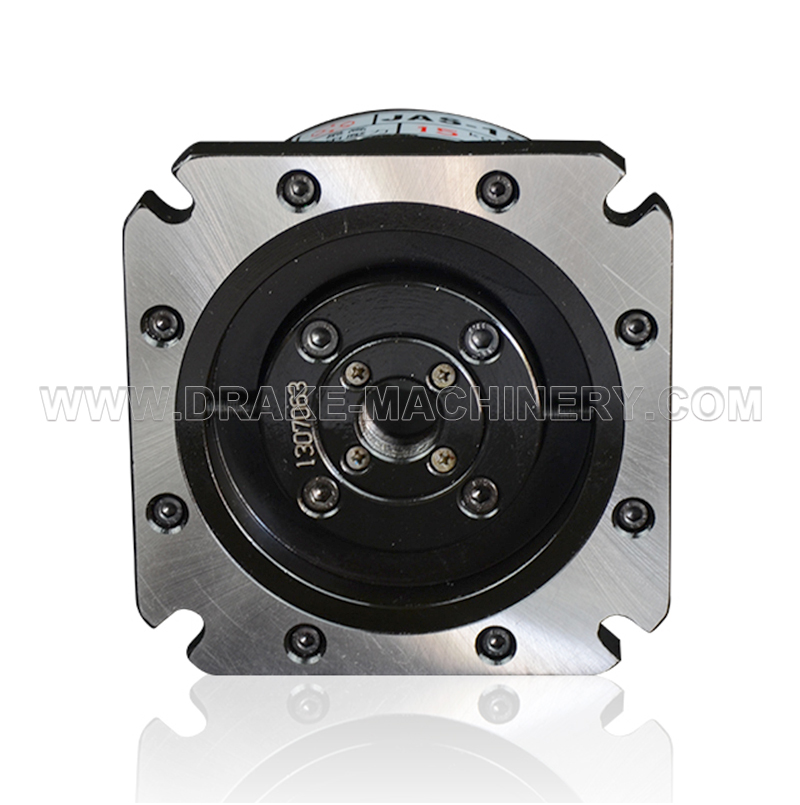

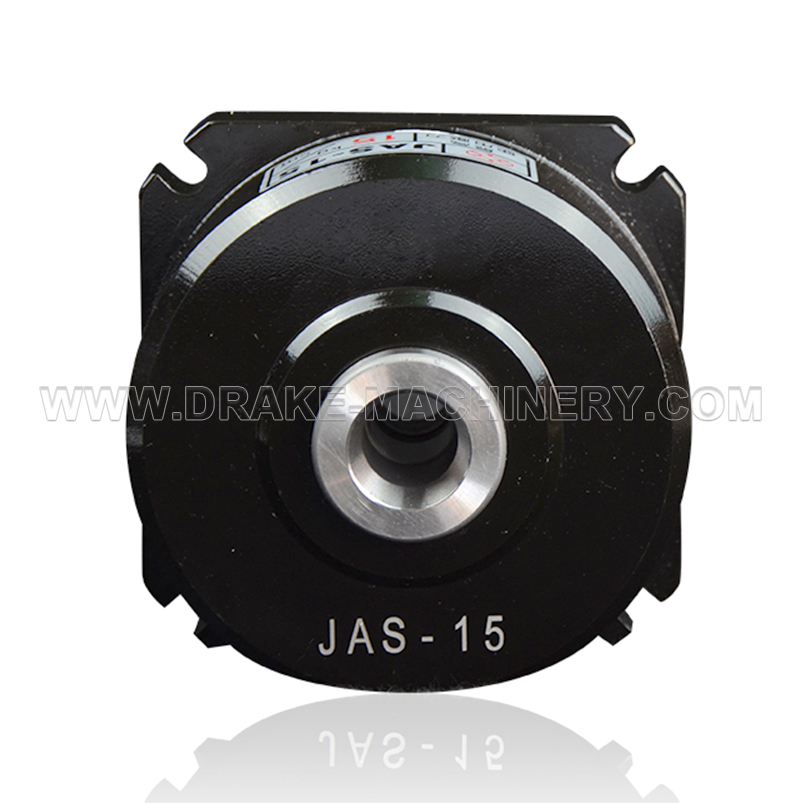

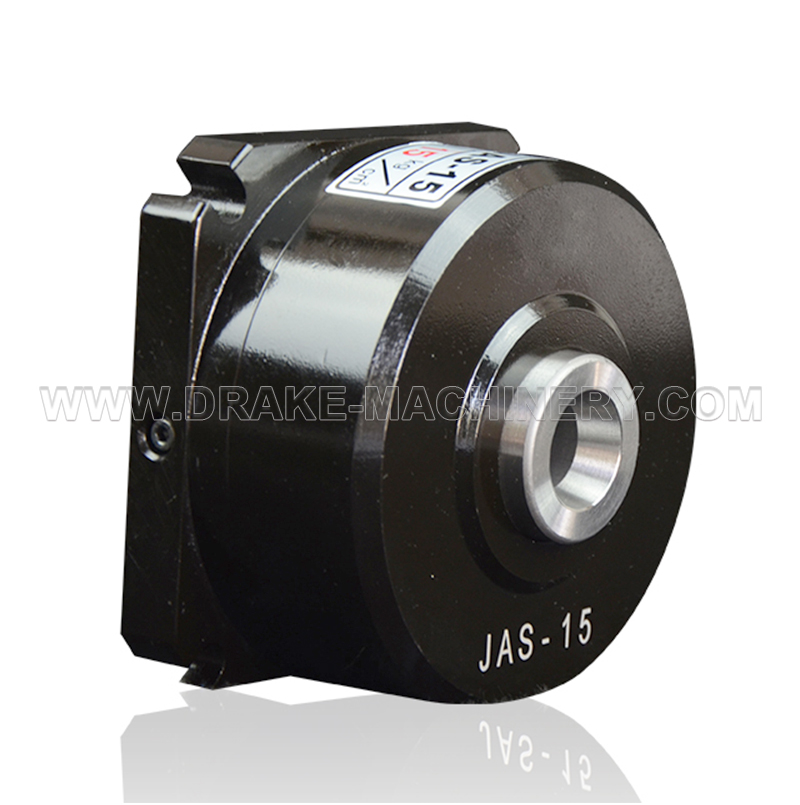

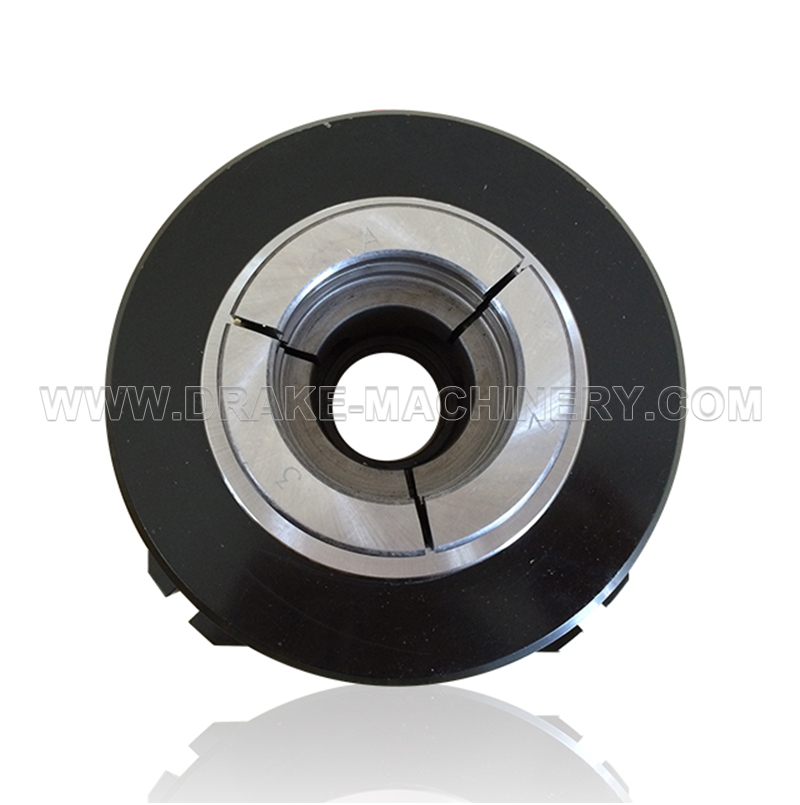

JAS Pneumatic Fixing Chuck

Inquire Now Next

Product Details

Product Features:

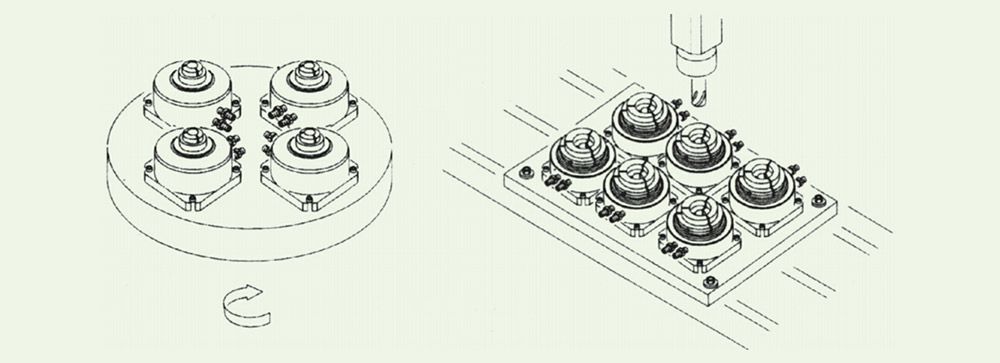

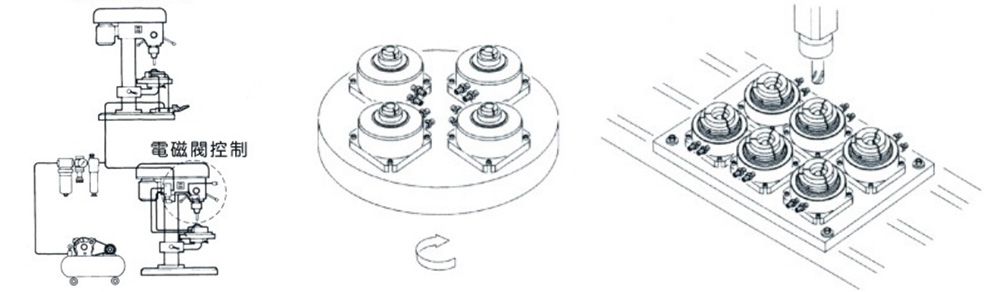

Suitable for drilling machines, tapping machines, iron beds, central processing machines, disc multi-station processing machines.

The JAS-15 uses the YB-15 collet and the JAS-25 uses the YB-25 collet (the two air hydraulics are common).

It is more convenient to use the interchangeable auxiliary claws and save the cost of the collet caused by product changes.

Product Size

JAS Pneumatic Fixing Chuck

Product Parameters

Discover the CNC collet chuck model that suits your requirements from the following parameters. As a leading collet chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!

Performace Parameters
Model/Spec.	Power source	Working pressure (kg/cm²)	Clamping torque	Max.chuck diameter	Through-hole aperture	Adapter fixture	Net weight (kg)
JAS-15"	Air/Oil pressure	3~15kg	5N.m	∮16	∮14	YB-15	5
JAS-25"	Air/Oil pressure	3~15kg	15N.m	∮28	∮24	YB-25	9

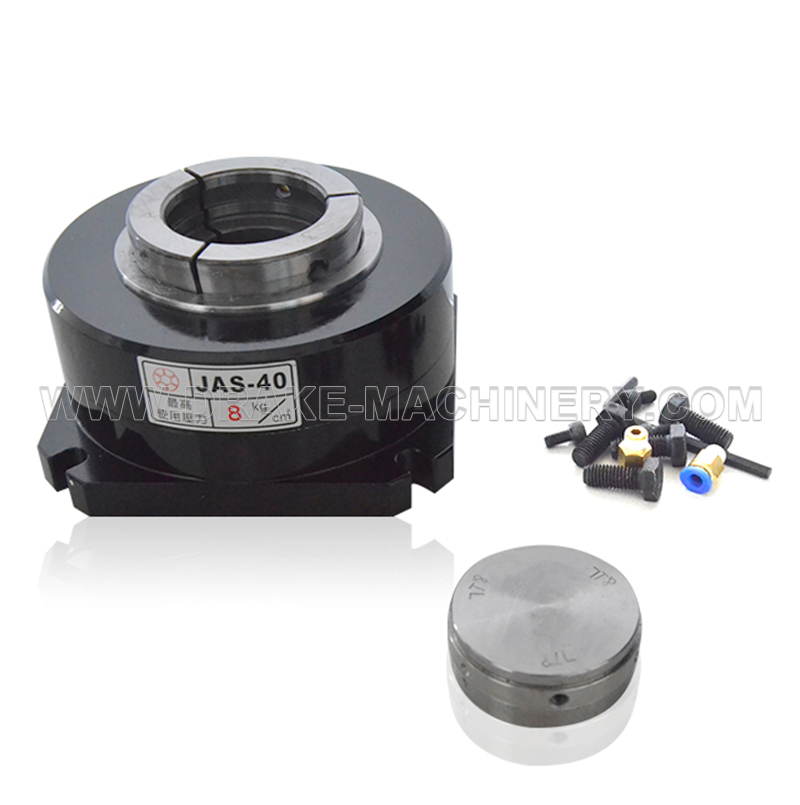

JAS-40"	Air compressor	3~8kg	30N.m	∮50	∮39	C-40	12.2

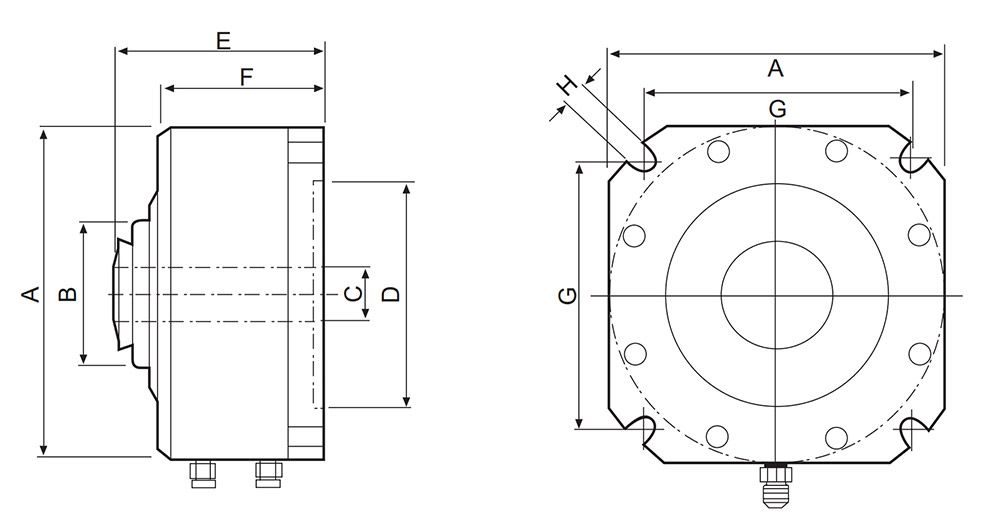

Size parameters
Model/Spec.	A	B	C	D	E	F	G	H
JAS-15"	118	40	14	90	76	64	98.3	9
JAS-25"	144	60	26	100	108	75	115.3	9
JAS-40"	168	110	40	100	98	77	136.5	11

★The above product data is for reference only, can be changed according to the needs of the workpiece, and can be customized according to the workpiece and processing requirements.

★ Product continuous improvement, please contact us if there are any changes to this catalogue parameter. Subject to final confirmation parameters!
