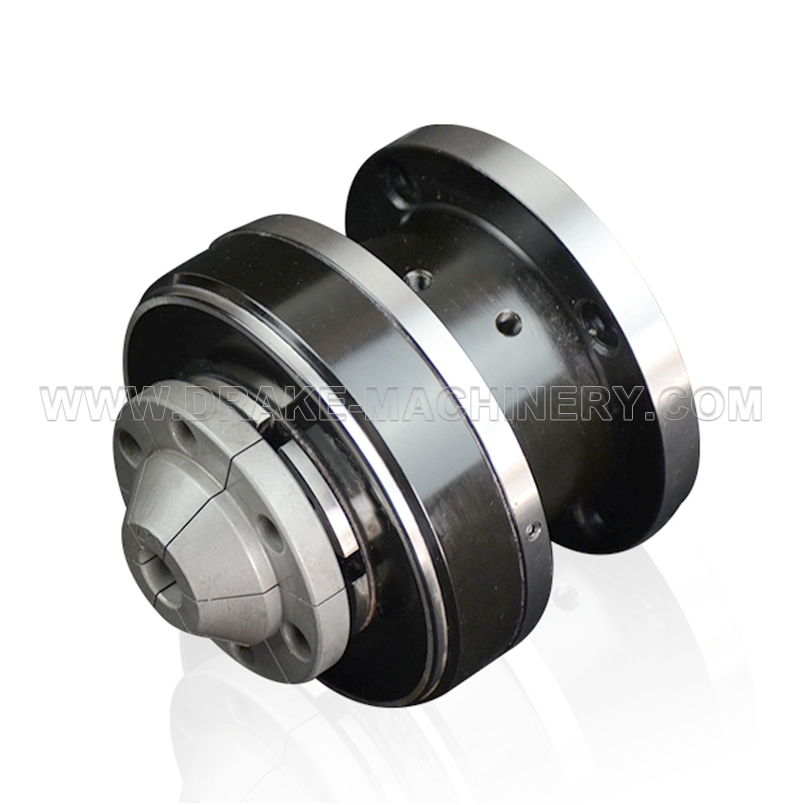

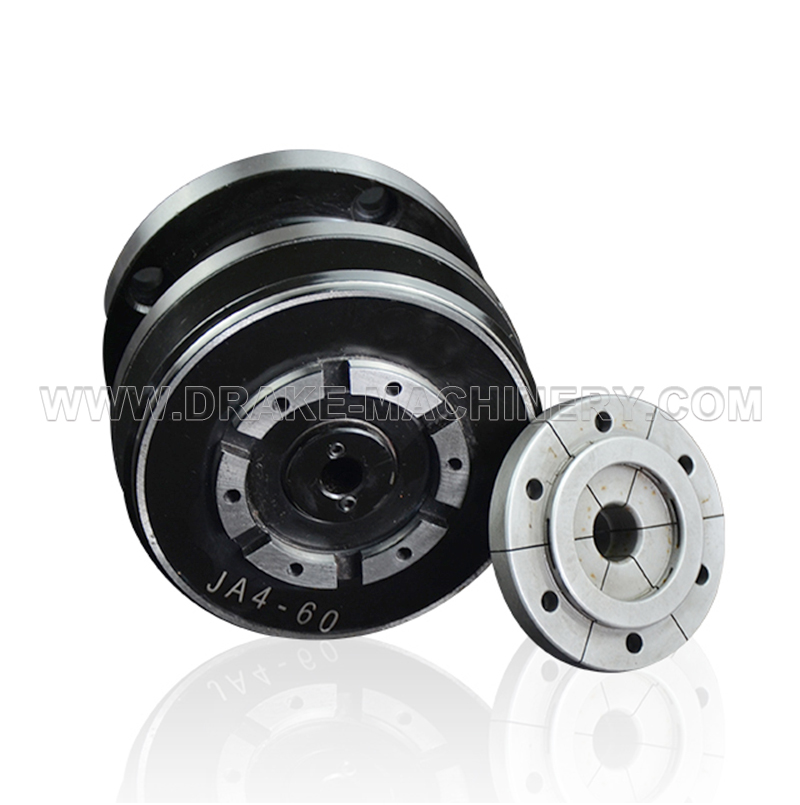

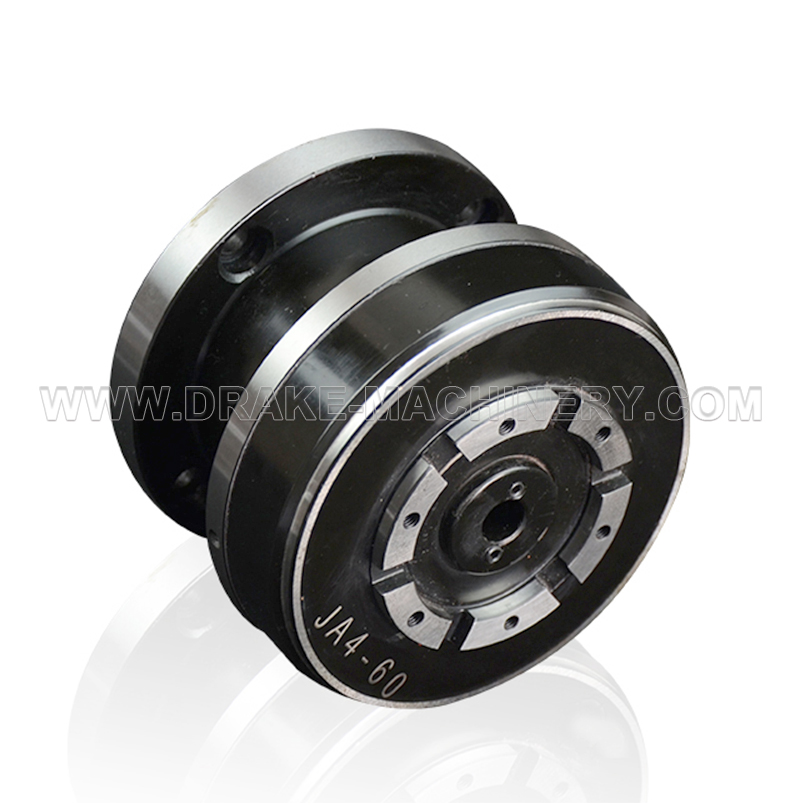

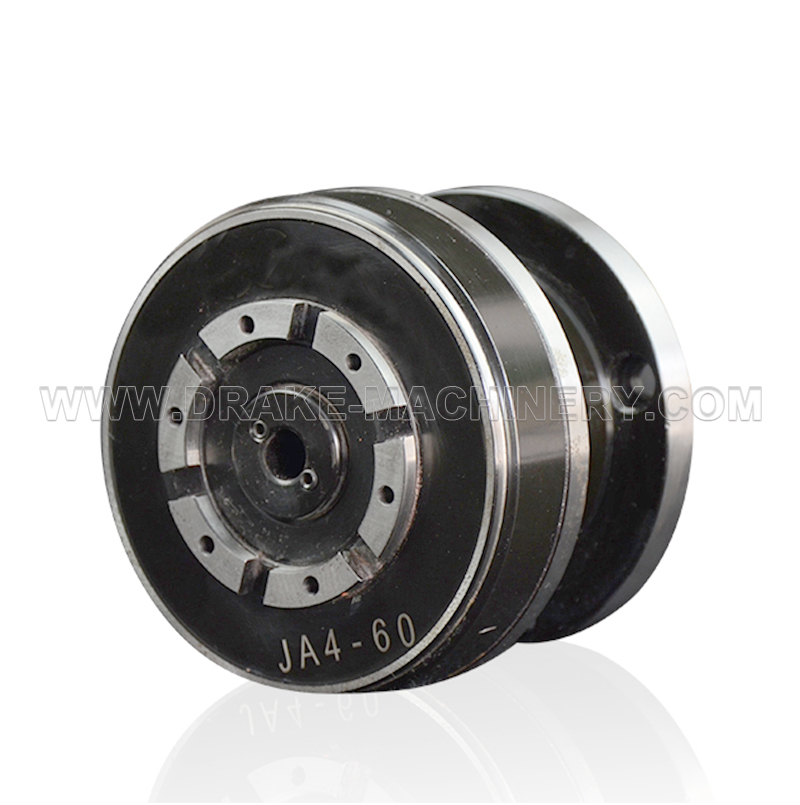

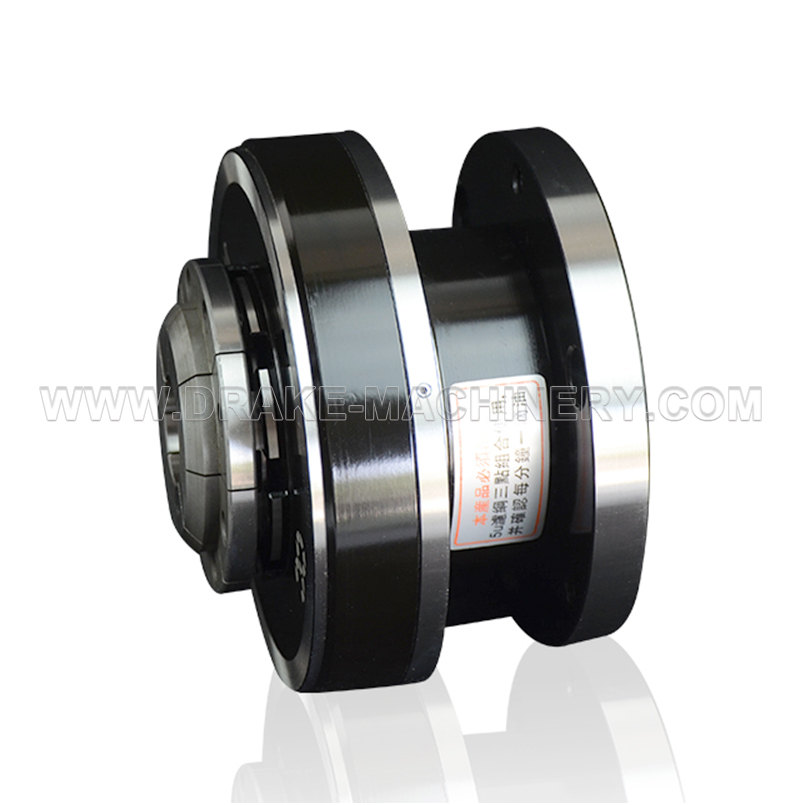

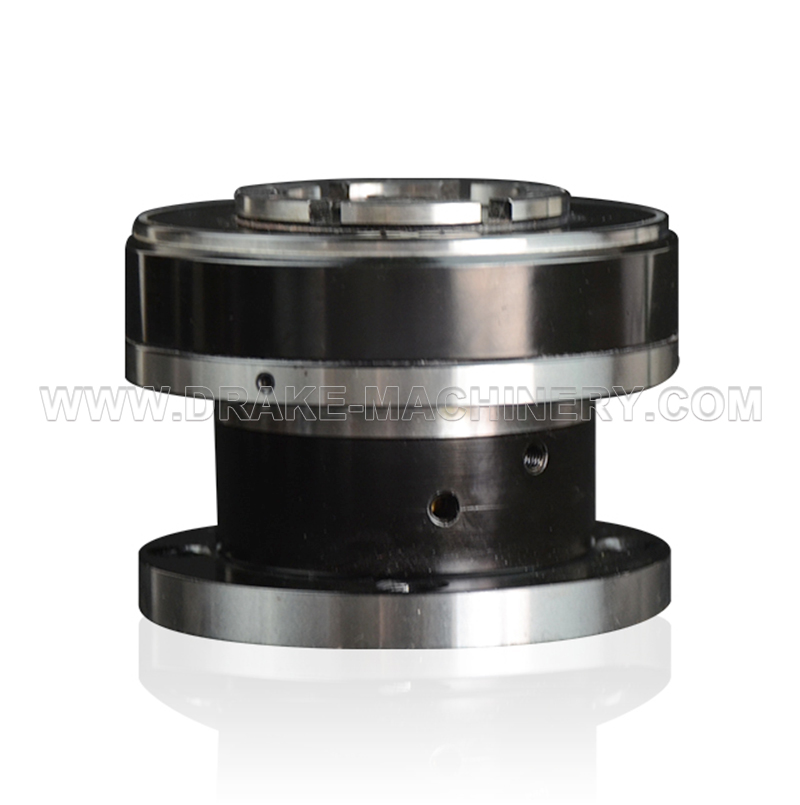

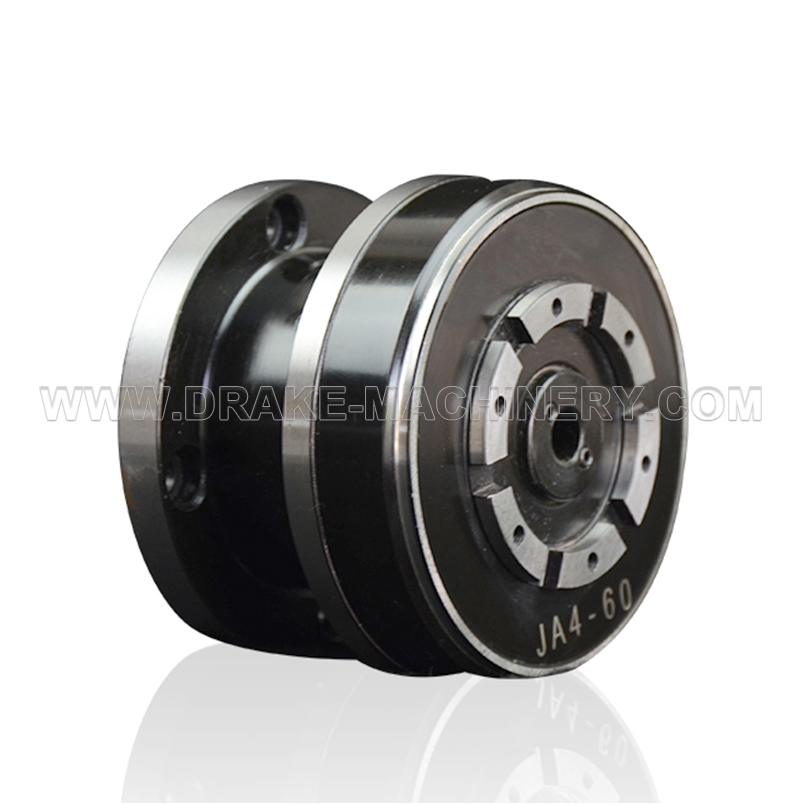

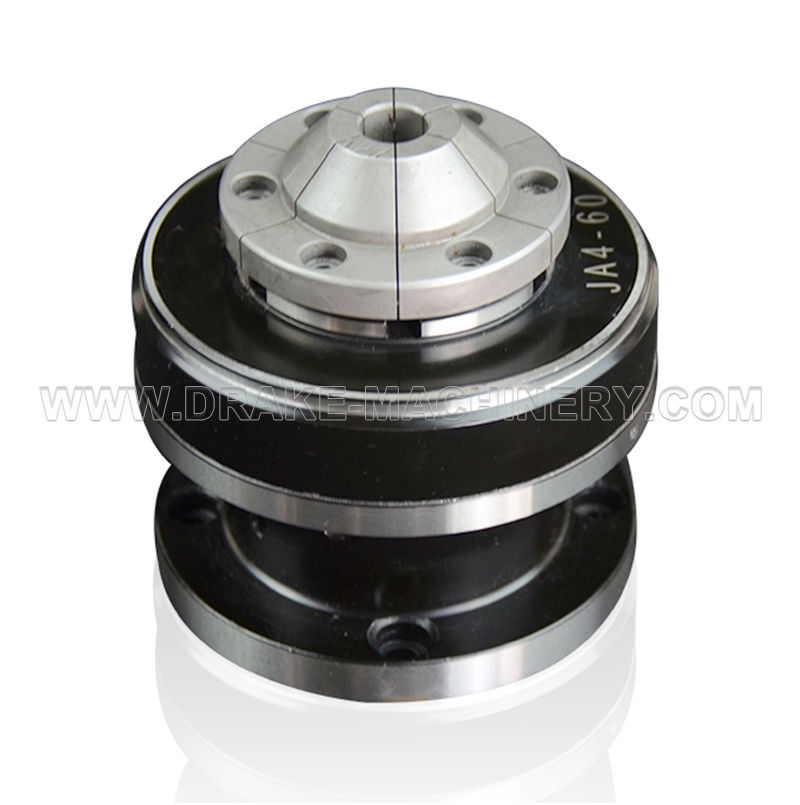

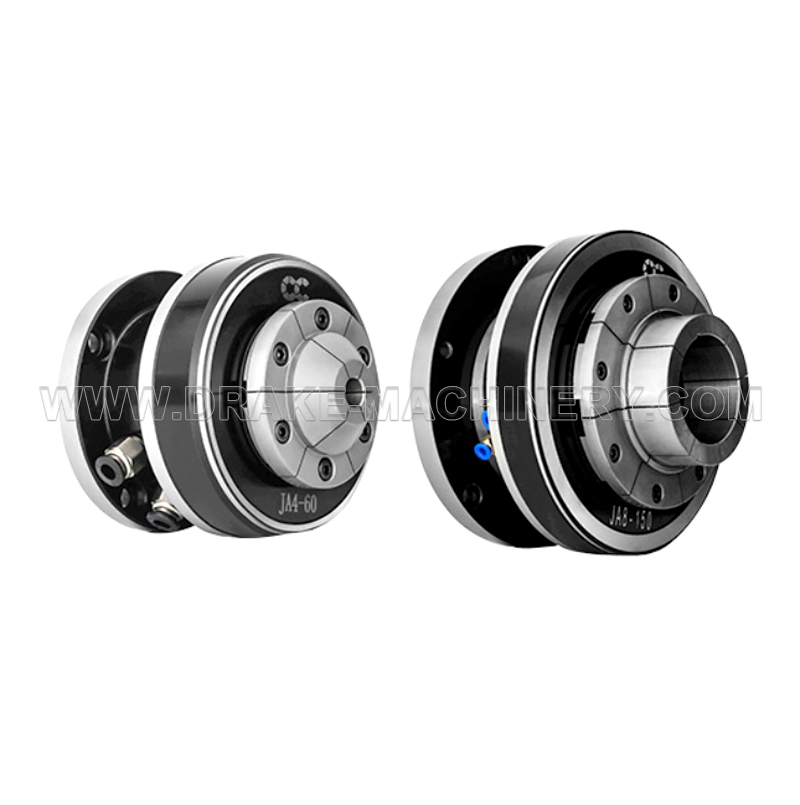

Product Details
Product Features:
● With diaphragm elastic technology, the repeatability is less than 3μ, and the clamping accuracy can reach 2μ.
● Permanent precision life.
● Highly sealed design, waterproof and dustproof.
● Easily control the concentricity and parallelism of both ends.
● Multi-stage size can be processed in several stages to reduce equipment costs.
● The single-action grinding machine replaces the CNC multi-stage simultaneous processing.
● The air compressor has a built-in direct drive.
● The three-point combination clamping force can be finely adjusted.
Product suitability:
● Precision machining of miniature bearings, motors and precision sets.
● It is suitable for the grinding and grinding of microelectronic products, optical parts, medical parts, light and high precision workpieces.
● Detection of precision components.

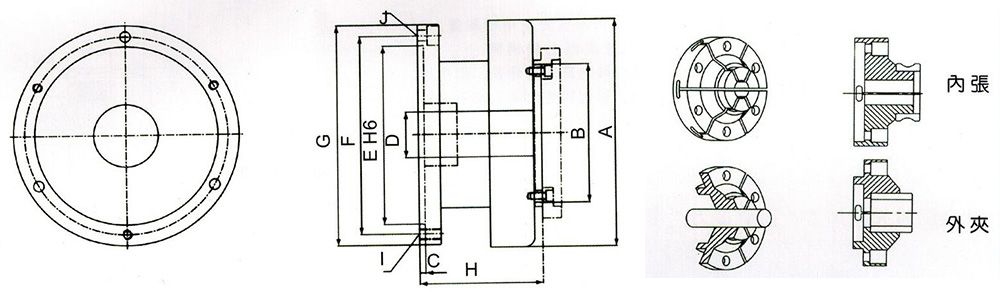

Product Size
Product Parameters
Discover the CNC collet chuck model that suits your requirements from the following parameters. As a leading collet chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!
| Size | JA4-60 | JA5-70 | JA6-100 | JA8-150 |
| A | 100 | 147 | 177 | 220 |
| B | 60 | 70 | 100 | 150 |
| C | 4 | 4 | 5 | 5 |
| D | 10 | 15 | 35 | 65 |
| E(H6) | 70 | 100 | 130 | 180 |
| F | 82 | 115 | 147 | 200 |
| G | 97 | 137 | 167 | 220 |
| H | 76 | 93 | 107 | 124 |
| I | 3-M8 | 3-M10 | 3-M10 | |
| J | 4-M6 | 3-M8 | 3-M10 | 3-M10 |
| Maximum speed (r.p.m) | 4000 | 3200 | 2500 | 2000 |
| Use pressure kg/cm² | 2~7 | 2~7 | 2~7 | 2~7 |
| Holding stroke (mm) | 0.1 | 0.3 | 0.3 | 0.3 |
| Net weight (Kg) | 2.8 | 7 | 11.5 | 15 |
| Matching jaw model | JD-60 | JD-70 | JD-100 | JD-150 |
| ★The above product data is for reference only, can be changed according to the needs of the workpiece, and can be customized according to the workpiece and processing requirements. ★ Product continuous improvement, please contact us if there are any changes to this catalogue parameter. Subject to final confirmation parameters! | ||||
-
