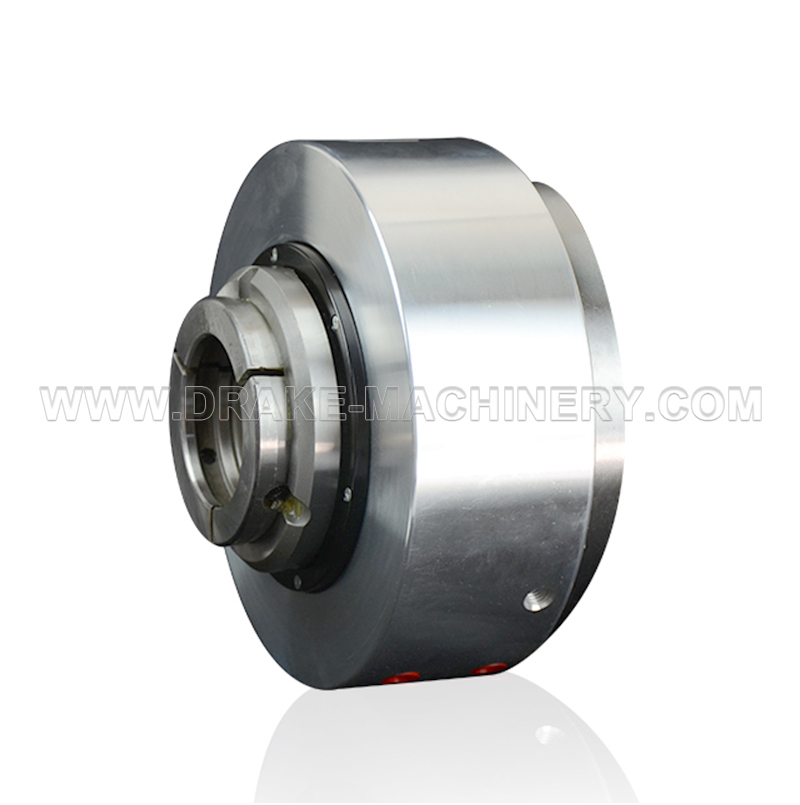

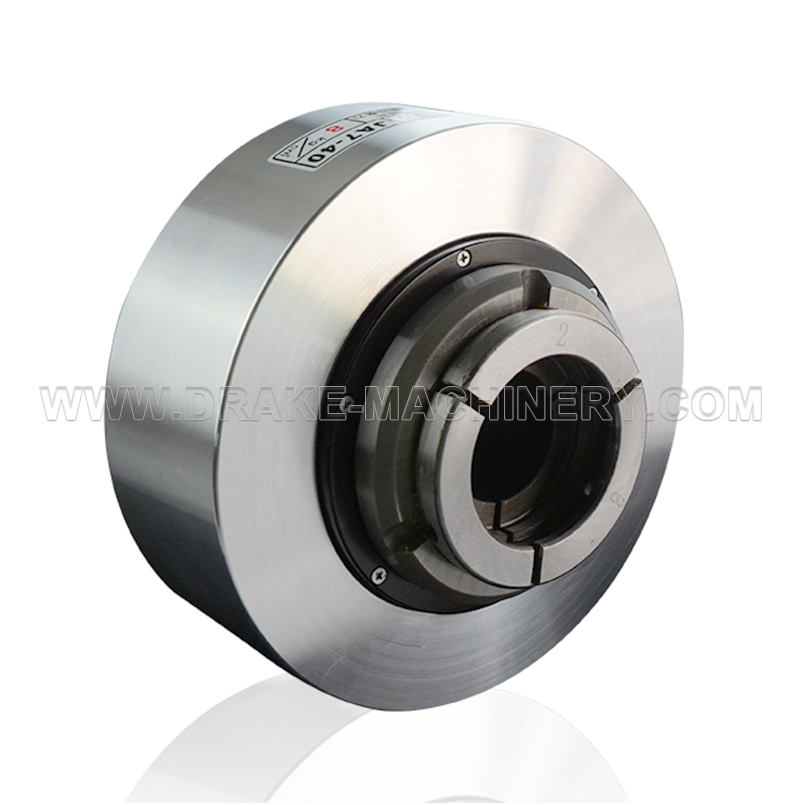

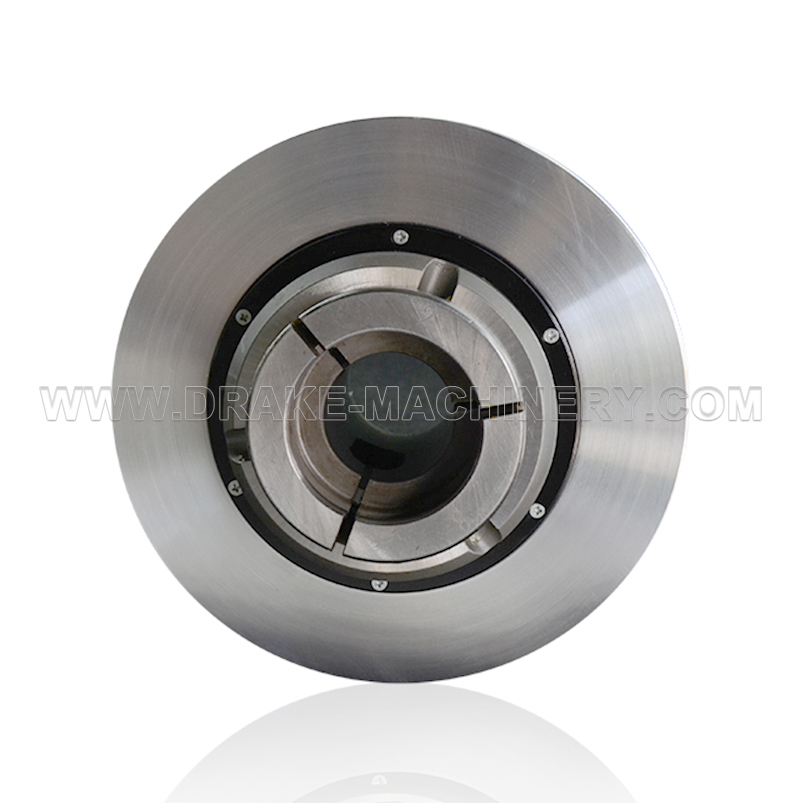

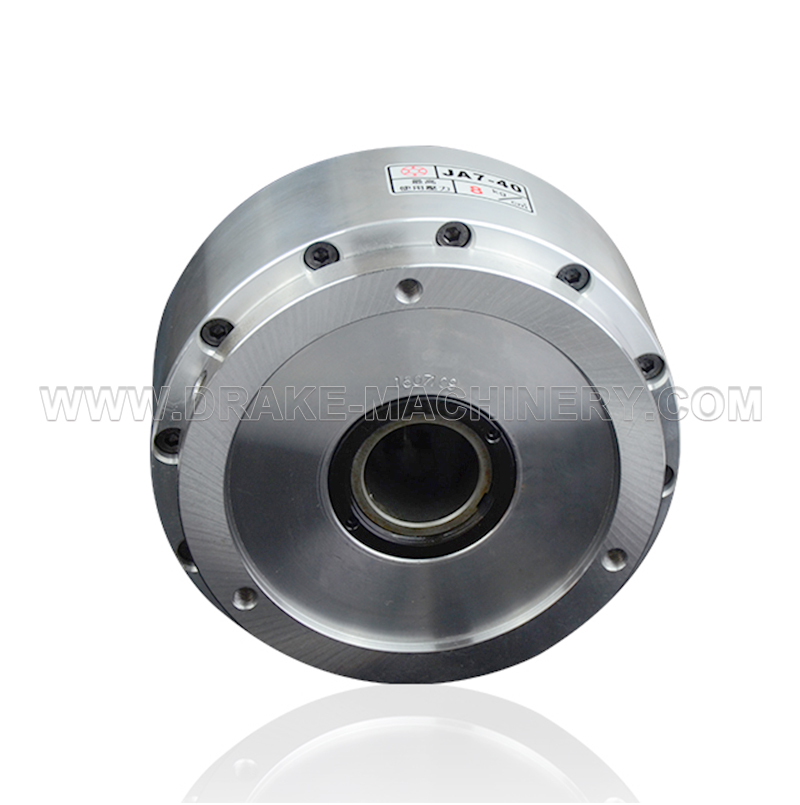

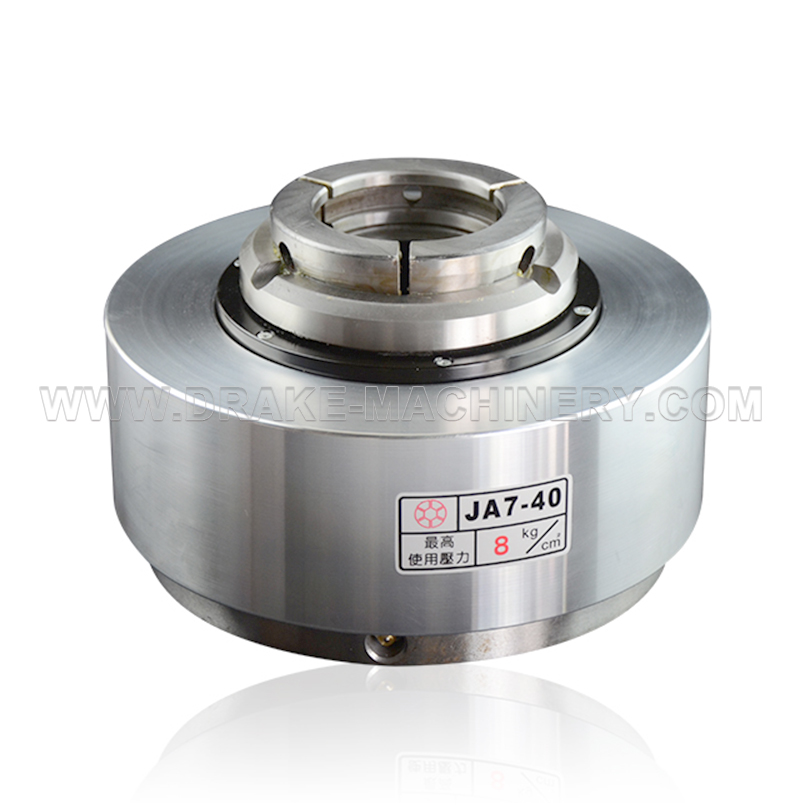

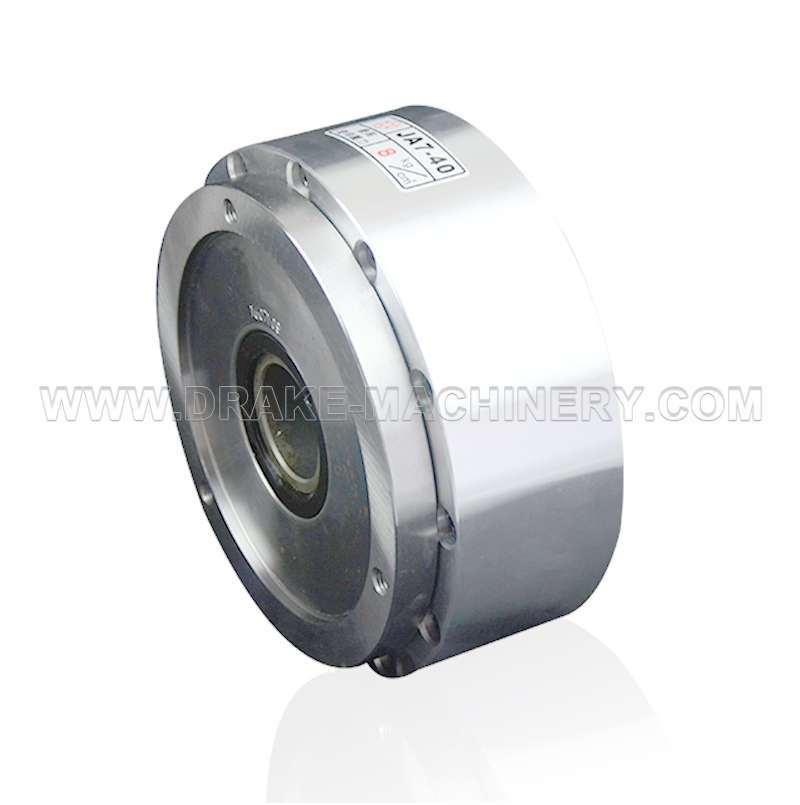

Product Details
Product Features:
Hydraulic Naito machine, free of hydraulic rotary cylinder.
Clamping accuracy 0.05 ~ 0.08mm (10mm from the end face)
The tight dustproof design confirms the applicable life of the protective bearing.
The oil pressure gauge has a strong grip and is easy to handle heavy cutting.
Simple structure, high efficiency and low cost design.
The aluminum alloy cylinder body, light weight and heat dissipation effectively reduce the temperature.
Product Suitability:
It is suitable for cutting and inner and outer diameter turning of pipe shaft products with general precision.
Precautions:
Insufficient water resistance, do not use pressurized cutting fluid for a long time.
Drake is a leading enterprise with 15+ years of factory experience, specializing in machine tool accessories and offering OEM & ODM services. We cooperate with over 60 countries and provide one-stop purchasing solutions for for Power Chuck, Collet Chuck, Turret, Tool Holder, Rotary Cylinder, Laser Chuck, Tool magazine, and more. Our strict adherence to international quality standards and comprehensive product range ensures tailored processing solutions for diverse customer needs.
Product Size
Product Parameters
Discover the CNC collet chuck model that suits your requirements from the following parameters. As a leading collet chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!
| Performance parameters | ||||||||
| Model/Spec. | Use pressure (kg/cm²) | Limit speed (rpm/min) | Clamping torque (N.m) | Clamping stroke (mm) | Through-hole aperture (mm) | Max.chuck diameter (mm) | Matching jaw | Net weight (kg) |
| JA5-25 | 2~8 | 1800 | 15 | 1.5 | ∮25 | ∮32 | C-25 | 7.6 |
| JA7-40 | 2~8 | 1800 | 25 | 1.5 | ∮40 | ∮50 | C-40 | 15.3 |
| JA7-70 | 3~8 | 1400 | 30 | 1.5 | ∮68 | ∮90 | C-70 | 25 |

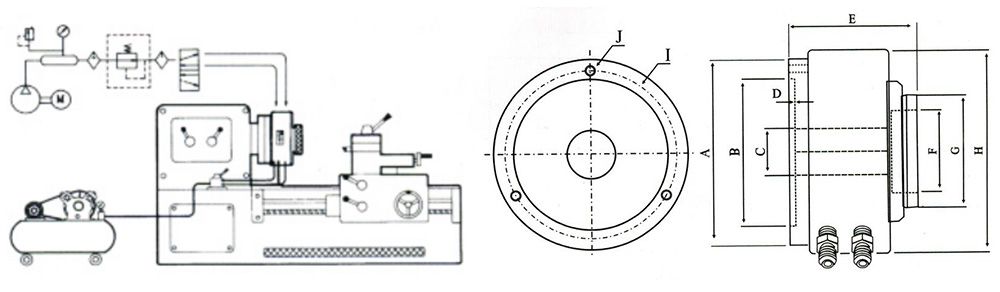

| Size parameters | ||||||||||
| Model/Spec. | A | B | C | D | E | F | G | H | I | J |
| JA5-25 | 135 | 100 | 26 | 4 | 105 | 45 | 68 | 170 | 115 | M8*1.25 |
| JA7-40 | 192 | 155 | 46 | 5 | 125 | 65 | 95 | 212 | 172 | M10*1.5 |
| JA7-70 | 192 | 155 | 69 | 5 | 140 | 105 | 136 | 266 | 172 | M10*1.5 |
| Note: The clamping torque is measured by clamping a 20mm round bar at a pressure of 6kg/cm2 | ||||||||||
-
