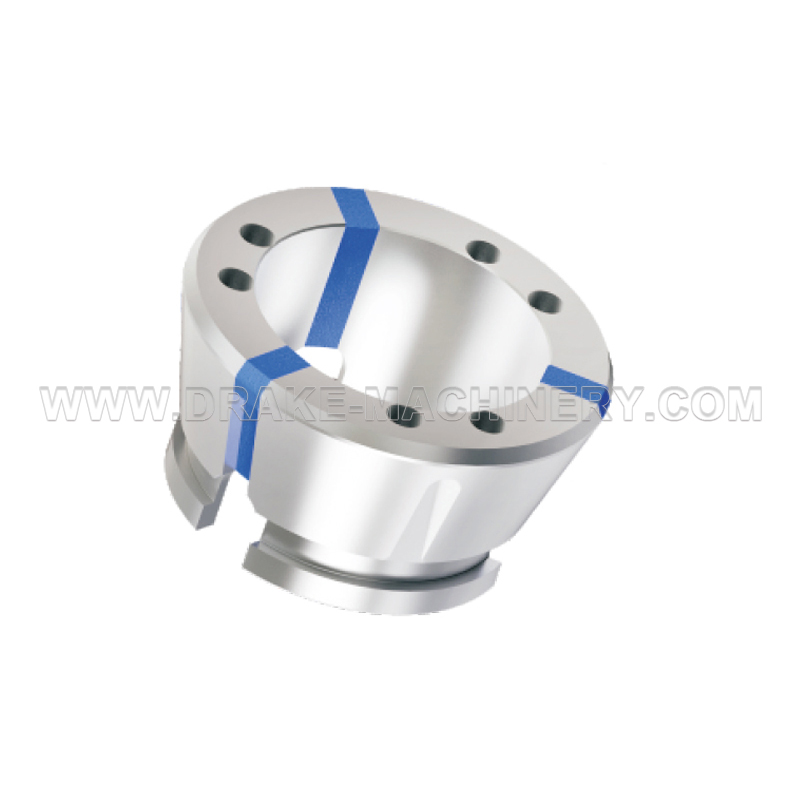

Product Details
The repeatability can reach <0.01mm.
It has parallel clamping, optimal force conversion,
strong, high clamping force, and wear resistance.

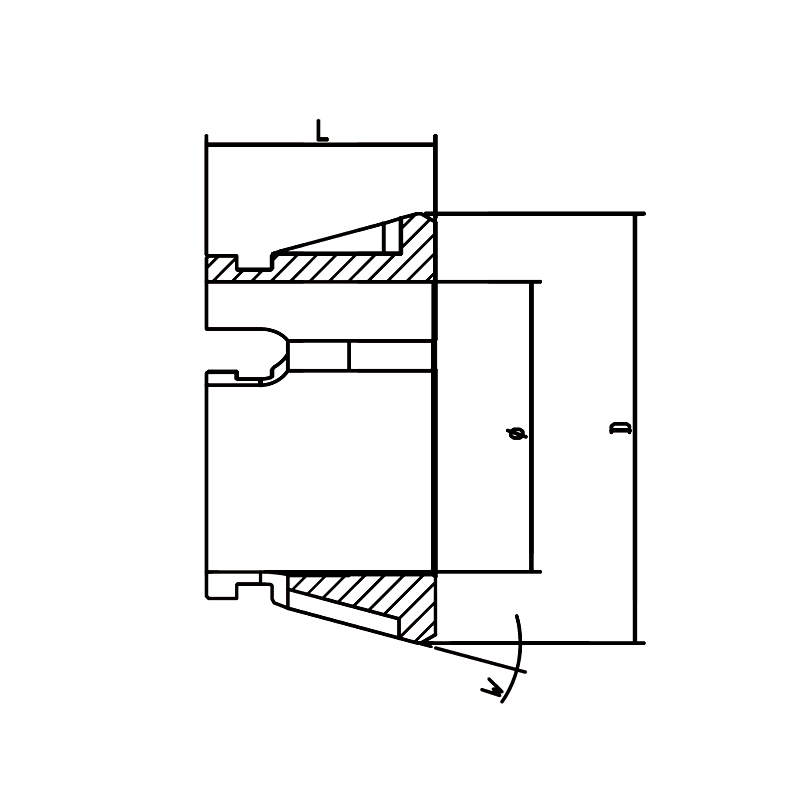

Product Size
Product Parameters
| Rubber collets EK68 | |||||||
| Type | D mm | L mm | W Unilateral angle | Clamping dia | Smooth | Smrrated | Double Smrrated |
| EK68S | 68 | 37 | 15 | 6-32 | 4-32 | -- | -- |
| EK68N | 68 | 37 | 15 | 6-32 | -- | 8-11 | 12-32 |
| Rubber collets EK93 | |||||||
| Type | D mm | L mm | W Unilateral angle | Clamping dia | Smooth | Smrrated | Double Smrrated |
| EK93S | 93 | 50 | 15 | 16-52 | 16-32 | -- | -- |
| EK93N | 93 | 50 | 15 | 16-52 | -- | -- | 16-52 |
| Rubber collets EK110 | |||||||
| Type | D mm | L mm | W Unilateral angle | Clamping dia | Smooth | Smrrated | Double Smrrated |
| EK110S | 110 | 60 | 15 | 20-66 | 20-66 | -- | -- |
| EK110N | 110 | 60 | 15 | 20-66 | -- | -- | 20-66 |
-
