Product Details
■ The data of the above products is for reference only. It can be changed according to the needs of the workpiece. Various non -standard products can be taken according to the workpiece and processing needs.
■ The product continues to improve. If there is a change in this directory parameters, please consult our company. The final confirmation parameters are subject to!

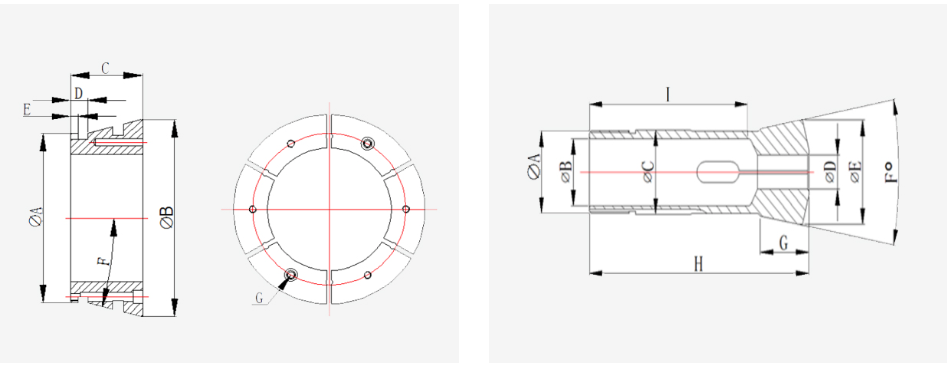

Product Size
Product Parameters
| Product Model | Product Parameters | ||||||
| A | B | C | D | E | F | G | |
| ER-95 | 113 | 131.8 | 46 | 11 | 5 | 15° | 2-M5 |
| screw hole | |||||||
| ER-120 | 135 | 146 | 46 | 11 | 5 | 8° | 2-M5 |
| screw hole | |||||||
| ER-160 | 183 | 201.8 | 46 | 11 | 5 | 15° | 2-M5 |
| screw hole | |||||||
| ER-180 | 203 | 212.8 | 50 | 15 | 7 | 15° | 2-M5 |
| screw hole | |||||||
| ER-200 | 221 | 240.8 | 46 | 11 | 5 | 15° | 2-M5 |
| screw hole | |||||||
-
