Product Details
● Adaptation to Schaublin (Schaublin) tube
● Turn accuracy ≤ 0.005mm
● Maximum use speed: 6000rpm/min

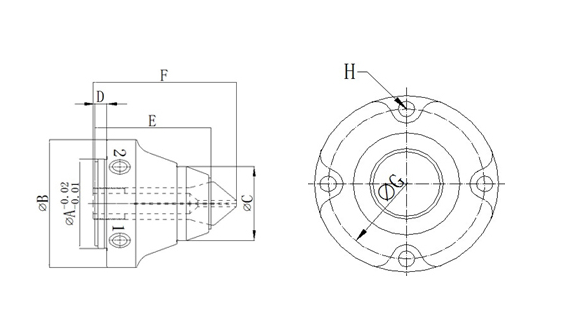

Product Size
Product Parameters
| Product Model | Product Parameters | |||||||
| A | B | C | D | E | F | G | H | |
| JT-W15 | 40 | 60 | 35 | 7 | 50 | 65 | 50 | 4-M6 |
| JT-W20 | 70 | 100 | 45 | 7 | 77 | 93 | 85 | 4-M8 |
| JT-W25 | 70 | 100 | 50 | 7 | 76 | 98 | 85 | 4-M8 |
| JT-W31.75 | 80 | 110 | 60 | 7 | 77 | 104 | 95 | 4-M8 |
-
