Product Details
● All steel design
● Adapted the standard spindle nose connection
● Establish a tube clip, the rear/front turning cylinder driver
● Easy installation, higher accuracy, and more convenient operation
● Rear pull tube clip, add axial positioning, workpiece does not move position
● 0.2mm of the spray scratch in the tube clip

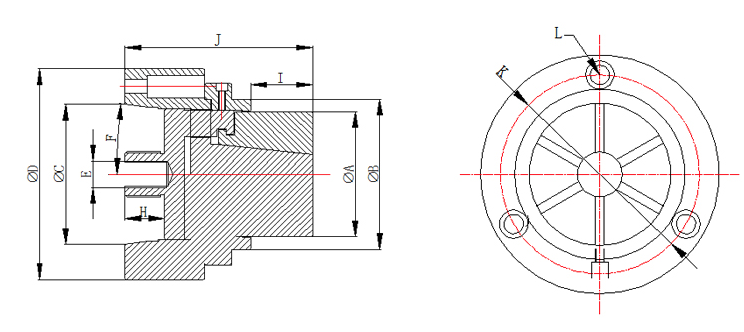

Product Size
Product Parameters
| Product Model | Product Parameters | |||||||||
| A | B | C | E | F | H | I | J | K | L | |
| JBNR50-70 | φ50-70 | φ60-80 | φ82.56 | M20*2 | 7.125° | 25-35 | 10-40 | 142.5 | φ104.8 | 3-M10 |
| Counterbore | ||||||||||
| JBNT70-95 | φ70-95 | φ80-105 | φ106.38 | M20*2 | 7.125° | 25-35 | 10-40 | 142.5 | φ133.4 | 3-M10 |
| Counterbore | ||||||||||
| JBNT95-125 | φ95-125 | φ65-85 | φ139.72 | M20*2 | 7.125° | 25-35 | 10-40 | 142.5 | φ171.5 | 6-M10 |
| Counterbore | ||||||||||
-
