Product Details
● All steel design
● Adapt to straight mouth connection
● Establish a tube clip, the rear/front turning cylinder driver
● Easy installation, higher accuracy, and more convenient operation
● Rear pull tube clip, add axial positioning, workpiece does not move position
● 0.2mm of the spray scratch in the tube clip

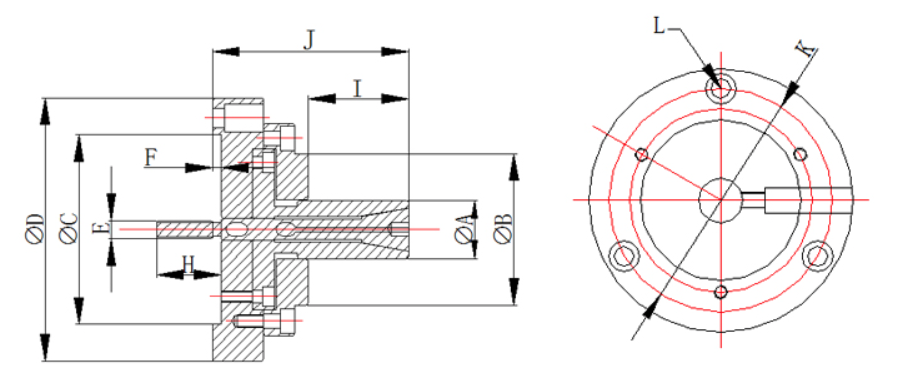

Product Size
Product Parameters
| Product Model | Product Parameters | |||||||||
| A | B | C | E | F | H | I | J | K | L | |
| JBNT25-35 | φ25-35 | φ30-60 | φ85 | M10 | 4 | 25-33 | 10-50 | 88 | φ100 | 3-M8 |
| Counterbore | ||||||||||
| JBNT35-50 | φ35-50 | φ40-60 | φ85 | M18*2 | 4 | 25-33 | 10-50 | 88 | φ100 | 3-M8 |
| Counterbore | ||||||||||
| JBNT50-75 | φ50-75 | φ65-85 | φ110 | M20*2 | 4 | 25-33 | 10-50 | 88 | φ125 | 6-M8 |
| Counterbore | ||||||||||
| JBNT75-100 | φ75-100 | φ90-110 | φ135 | M30*2 | 4 | 25-33 | 10-50 | 88 | φ150 | 6-M8 |
| Counterbore | ||||||||||
-
