Product Details
● Rear pull type, adapting CHC: NGT-60T/105T cylinder clip
● Turn accuracy ≤ 0.003mm
● Repeat clip accuracy ≤0.02mm
● Maximum use speed: 6000rpm/min

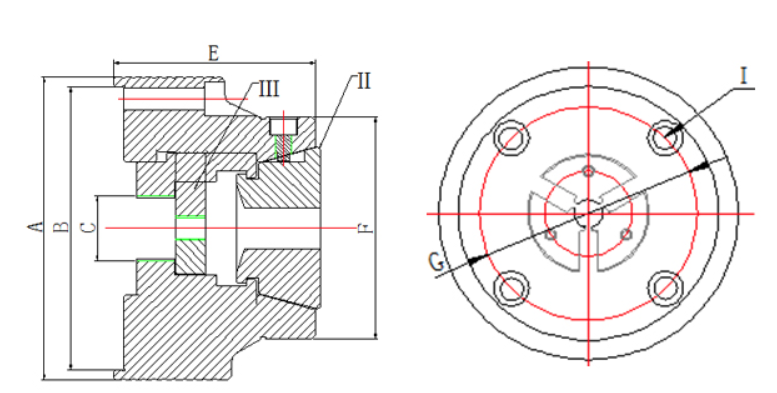

Product Size
Product Parameters
Product Model | Product Parameters | |||||||||
Connection mode | A | B | C | E | F | G | I | Ⅱ | Ⅲ | |
(Flexible bobbin clamp) | ||||||||||
JB-NGT32 | Straight Port | φ150 | φ140 | M32*1.5 | 100 | φ110 | φ104.8 | 4-M10 | NGT-60T | Locating block |
A2-5 | φ150 | φ82.563 | M32*1.5 | 115 | φ110 | Countersunk head | ||||
JB-NGT72 | Straight Port | φ180 | φ170 | M32*1.5 | 108.5 | φ130 | φ133.4 | 4-M12 | NGT-105T | Locating block |
A2-6 | φ180 | φ106.375 | M32*1.5 | 123.5 | φ130 | Countersunk head |
■ The data of the above products is for reference only. It can be changed according to the needs of the workpiece. Various non -standard products can be taken according to the workpiece and processing needs.
■ The product continues to improve. If there is a change in this directory parameters, please consult our company. The final confirmation parameters are subject to!
