Product Details
Product Features
● Rotating cylinder ontology Rotate accuracy ≤0.01mm.
● The structure of the heating treatment of steel integrated, the bearings have no overload, high steel and stability, long life, temperature rise and low
● The front end can be equipped with an inner -supported passive chip and the outer clip.
● Direct flanges are connected to the main axis, convenient and fast installation, and controlled the machine tool system through the solenoid valve
● Quickly replace the lever to facilitate product replacement, and you can control the length of the work holding normally.
● The oil pressure clamping force is large, and the relative speed is low
Product Suitability
● Heavy cutting, suitable for shaft type gear rubbing machine

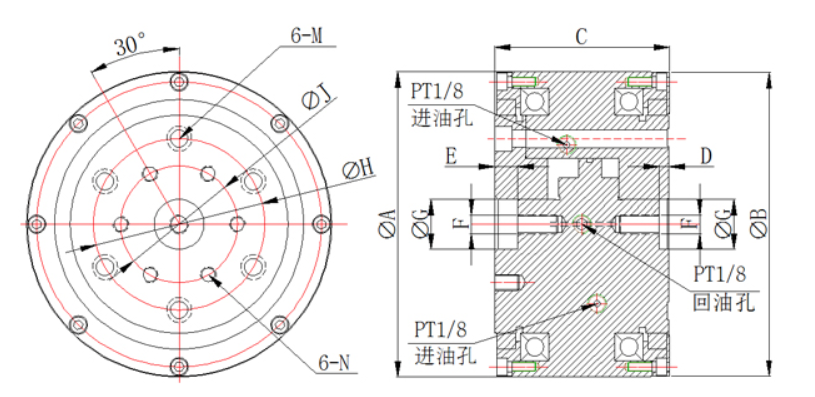

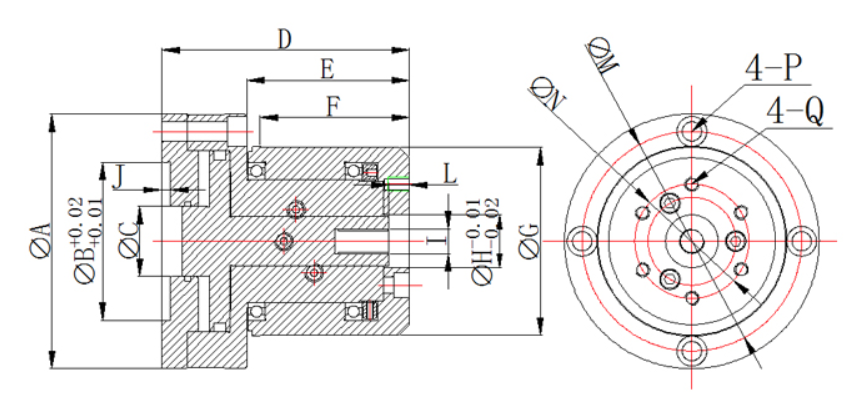

Product Size
Product Parameters
Product Model | Product Parameterss | ||||||||
A | B | C | D | E | F | G | H | I | |
JHR-135 | 135 | 80 | 36 | 91.5 | 59.5 | 51 | 84 | 20 | M8 |
JHR-145 | 145 | 90 | 40 | 141 | 92.5 | 85 | 107 | 30 | M14 |
Product Model | Product Parameterss | ||||||||
J | L | M | N | P | Q | Maximum speed | Piston stroke | Working pressure | |
rpm/min | |||||||||
JHR-135 | 5 | 8 | 120 | 70 | 4-M6 | 5-M5 | 500 | 3 | 5-18kg/cm2 |
Counterbore | |||||||||
JHR-145 | 5 | 11.5 | 125 | 65 | 4-M10 | 6-M6 | 400 | 6 | 5-18kg/cm2 |
Counterbore |
Product Model | Product Parameterss | ||||||
A | B | C | D | E | F | G | |
JHR-195 | 196 | 195 | 112.5 | 6.25 | 15 | M12 | 32 |
H | J | M | N | Maximum speed | Piston stroke | Working pressure | |
rpm/min | |||||||
110 | 75 | M10 | M10 | 200 | 8.5 | 5-18kg/cm2 | |
Counterbore |
■ The data of the above products is for reference only. It can be changed according to the needs of the workpiece. Various non -standard products can be taken according to the workpiece and processing needs.
■ The product continues to improve. If there is a change in this directory parameters, please consult our company. The final confirmation parameters are subject to!
