Product Features:
● The JA series is a high -performance dual -performance dual -piston rotating cylinder product
● Provide a strong double piston push/tension with trace air leakage
● Designed for driving CNC three -claws or tube clip head
● The rotating cylinder drives the front chip by the air pressure.
● The cylinder body is not heated when the air pressure rotation cylinder works at high speed.
● Qi source interrupt workpiece will not fall off, set up self -locking function
● Model "D" is the post -pull "P" as the front push type
Product Application:
● The maximum pore pore diameter is ∮42
● Use rear flange connection installation
● Pickled driver configuration commonly used in small and medium -scale CNC lathes
● The driver of traditional machine tools is simpler and fast.
● Piston Stroke design can increase to 25mm

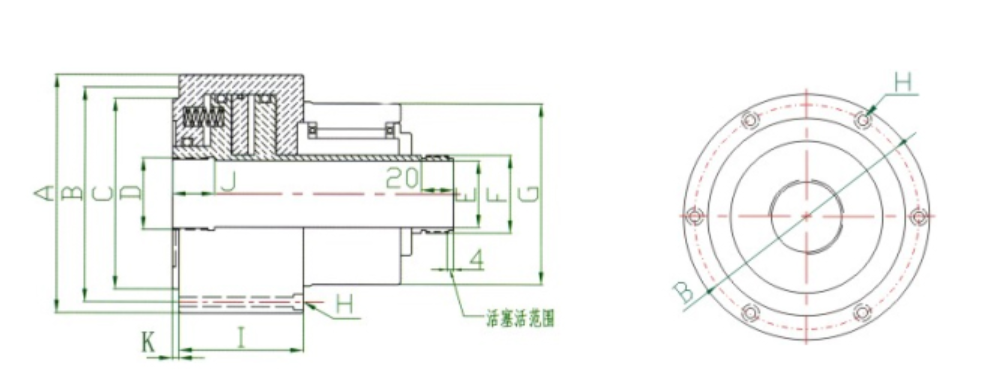

Product Size
Product Parameters
Product Model | Product Parameterss | |||||||
A | B | C | D | E | F | G | H | |
JA42D(P) | ∮175 | ∮159 | ∮140 | M55*2.0 | ∮42.2 | M49*1.5 | ∮114 | 6-M8 |
JA42D(P)-150D | ∮150 | ∮136 | ∮120 | M45*2.0 | ∮42.2 | M49*1.5 | ∮114 | 6-M6 |
JA42D(P)-150S | ∮150 | ∮136 | ∮120 | M45*2.0 | ∮42.2 | M49*1.5 | ∮114 | 6-M6 |
Product Model | Product Parameterss | |||||||
I | J | K | Maximum tension | Use high | Maximum speed | Piston stroke | Weight | |
pressure | rpm/min | |||||||
JA42D(P) | 77 | 28 | 5 | 2000kgf | 3-8kg/cm2 | 4000 | 4mm | 8.5kg |
JA42D(P)-150D | 47 | 26 | 4 | 850kgf | 3-8kg/cm2 | 4000 | 4mm | 6.2kg |
JA42D(P)-150S | 77 | 26 | 4 | 1650kgf | 3-8kg/cm2 | 4000 | 4mm | 7.6kg |
The data of the above products is for reference only. It can be changed according to the needs of the workpiece. Various non -standard products can be taken according to the workpiece and processing needs.
■ The product continues to improve. If there is a change in this directory parameters, please consult our company. The final confirmation parameters are subject to!
