JAR32/JAR60 hollow air pressure rotary cylinder

Inquire Now Next

Product Details

Product Features

JAR Return Tank is a high -performance single -piston air pressure rotating cylinder product

Provide a strong piston push/tension with a small amount of air leakage

Designed for driving CNC small three -claws or tube clip head

Drive the front chip with air pressure, there are two ways to work before pushing before.

The cylinder body is not heated when the air pressure rotation cylinder works at high speed.

Qi source interrupt workpiece will not fall off, set up self -locking function

Adopting the principle of air floating, the long life of the bearing is not difficult to use



Product Application

The maximum pore pore diameter is 63 (reference to the main axis tail pipe selection configuration hole diameter)

The installation method is the main axis tail pipe directly set

Pickled driver configuration commonly used in small and medium -scale CNC lathes

The driver of traditional machine tools is simpler and fast.

The piston stroke design can be increased to 20mm

The highest speed 4000rpm/min/min

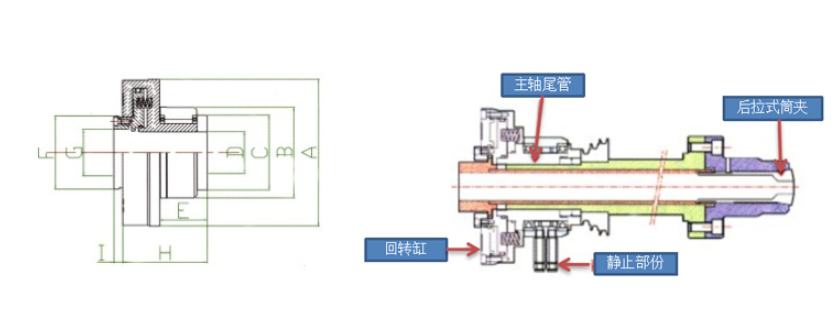

Product Size


Product Parameters

Product ModelProduct Parameterss
ABCDEFG
JAR32∮176∮109∮90∮30-∮5256∮88∮56
JAR60∮176∮118∮100∮52-∮6360∮88∮56


Product ModelProduct Parameterss
HIPiston strokeMaximum tensionWorking pressureMaximum speedWeight
rpm/min
JAR32100144mm1530kgf3-8kg/cm240006.8kg
JAR60105144mm1500kgf3-8kg/cm240006.6kg
Note: The air pressure rotary cylinder is directly manufactured according to the main shaft liner (D), and the brand must be informed or the external dimensions of the liner must be provided before purchasing
The data of the above products is for reference only. It can be changed according to the needs of the workpiece. Various non -standard products can be taken according to the workpiece and processing needs.
■ The product continues to improve. If there is a change in this directory parameters, please consult our company. The final confirmation parameters are subject to!
