Product Details
For fixed types of non -turning
● Hurry up and strong
● Long life span, high waterproof and dustproof ability
● Easily control both ends and parallelism
● Multi -segment size can be processed and reduced equipment costs
● Use a single motion grinding machine to replace CNC multi -segment processing at the same time
● You need to be equipped with a rear gap tank pull rod driver
● Applicable CNC milling diamond machine non -standard fixture, etc. It can be used as a number of bi -fixtures for rowing.
● Applicable to the machine plus of precision workpieces

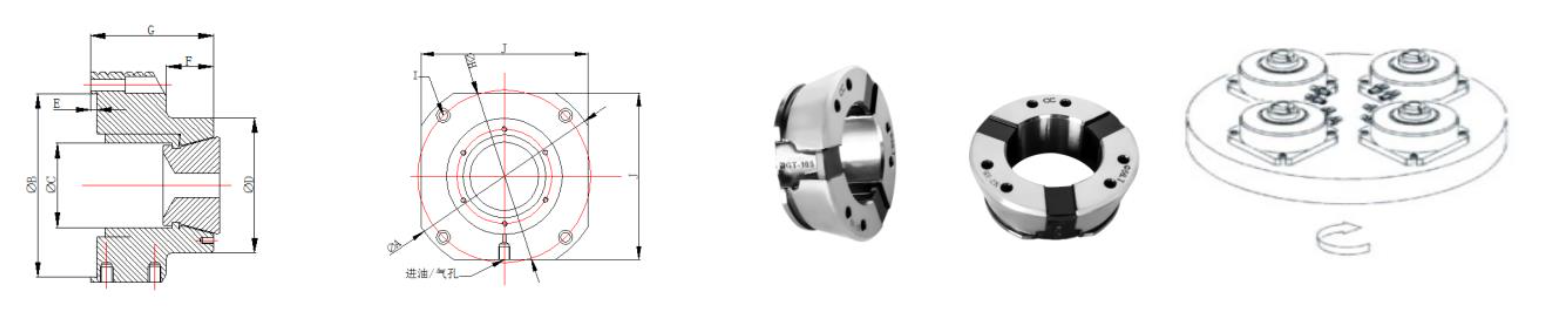

Product Size
Product Parameters
| Product Model | Product Parameters | ||||||
| A | B | C | D | E | F | G | |
| JH/AS-HBG42 | 185 | 150 | 45 | 110 | 5 | 38.5 | 100.5 |
| JH/AS-HBG52 | 185 | 150 | 55 | 110 | 5 | 38.5 | 100.5 |
| JH/AS-HBG65 | 185 | 150 | 65 | 130 | 5 | 38.5 | 100.5 |
| Product Model | Product Parameters | ||||||
| H | I | J | Drive method | Working pressure | Clamping stroke | Type of | |
| kg/cm2 | mm | gripper used | |||||
| JH/AS-HBG42 | 164 | 4-M8 | 158 | Air/oil pressure | 2～20 | 0.5 | HAINBUCH 42 |
| JH/AS-HBG52 | 164 | 4-M8 | 158 | Air/oil pressure | 2～20 | 0.5 | HAINBUCH 52 |
| JH/AS-HBG65 | 164 | 4-M8 | 158 | Air/oil pressure | 2～20 | 0.5 | HAINBUCH 65 |
-
