Product Details
Product Features:
● The structure of the heating steel processing steel is divided, the bearings have no overload, high speed, long life, and low temperature rise.
● Two -way power, forced opening the tube clip, no stuck. When the gas source is interrupted, the pinch is self -locking.
● Direct flanges are connected to the main axis, which is convenient and fast installation. Three -point combination gas valve can be connected to the machine tool system control
● Quickly replace the tube clip to facilitate product replacement.
● JAB-W20/25 on the body accuracy within 0.005mm, adjustable clip holding accuracy within 0.005.
● JAW-25 The body accuracy is within 0.005mm.
Product Application:
● NC lathe, lathe, grinding, division, 4/5 axis
● Precision workpiece, precision tool car car cutting, grinding and processing.

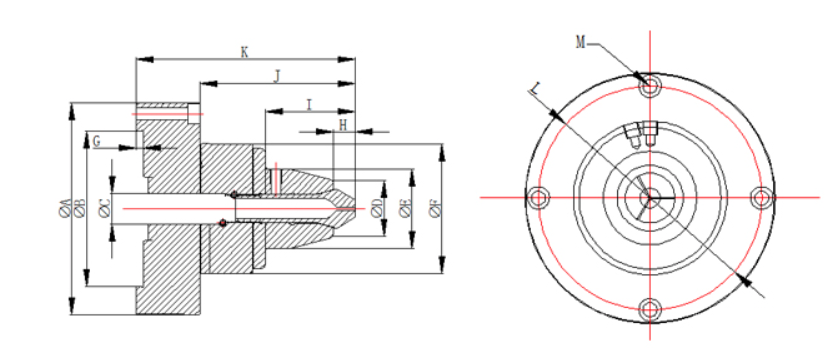

Product Size
Product Parameters
Product Model | Product Parameters | ||||||||||
A | B | C | D | E | F | G | H | I | J | K | |
JAB-W20 | 150 | 110 | 22 | 40 | 56 | 92 | 5 | 16 | 64 | 110 | 155 |
JAB-W25 | 170 | 130 | 25 | 40 | 56 | 92 | 5 | 25 | 84 | 131 | 176 |
JAW-25 | 109 | 70 | 25 | 40 | 47 | 86 | 5.5 | 20 | 45 | 92 | 132 |
Product Model | Product Parameters | ||||||||||
L | M | Maximum speed | Piston stroke | Clamping stroke | Maximum torque | Drive method | Clamping range | Using bobbins | Weight kg | Use pressure | |
mm | mm | N.m | |||||||||
JAB-W20 | 134 | 4-M8 | 4000 | 2 | 0.5 | 12N.m | Air pressure | ∮3-14 | W20 | 5.5 | 3-8kg/cm2 |
JAB-W25 | 154 | 4-M8 | 4000 | 2 | 0.5 | 15N.m | Air pressure | ∮5-19 | W25 | 6.5 | 3-8kg/cm2 |
JAW-25 | 98 | 8-M5 | 4000 | 3 | 0.5 | 15N.m | Air pressure | ∮5-19 | W25 | 6.5 | 3-8kg/cm2 |
