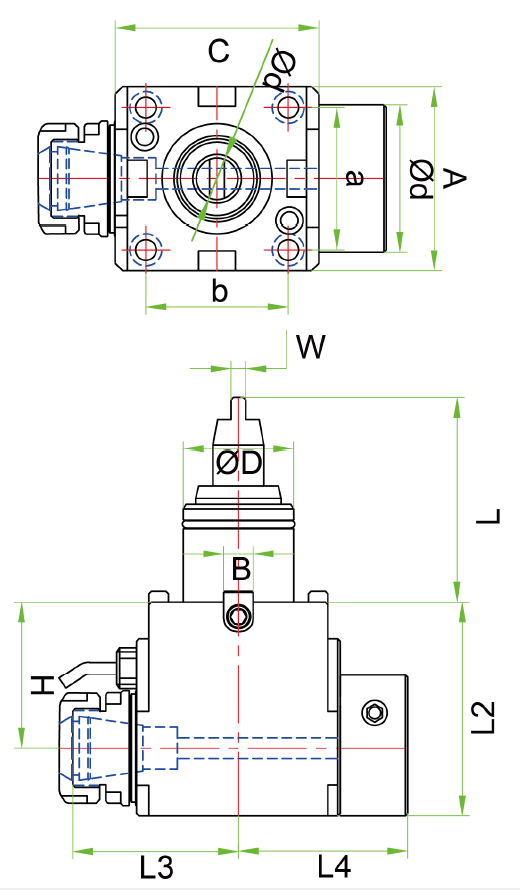

Product Size
Product Parameters
| 型号 | φD | B | φd | W | L | L2 | L3 | L4 | A | C | φd | H | Max pressure | r/min | Fixing screw | a*b |
| MT40ZXCS-90°/ER25 | 40 | 12 | 20 | 6 | 61 | 87.5 | 79 | 69 | 63 | 75 | 55 | 60 | ≤7.0MPa | ≤6000 | 4-M8 | 50*60 |
| WT45ZXCS-90°/ER25 | 45 | 15 | 20 | 6 | 83 | 87.5 | 68.5 | 69 | 75 | 83 | 55 | 60 | ≤7.0MPa | ≤6000 | 4-M8 | 58*58 |
| MIS5ZXCS-90°/ER32 | 55 | 15 | 22 | 8 | 102.5 | 92.5 | 77.5 | 76.5 | 85 | 97 | 60 | 60 | ≤7.0MPa | ≤6000 | 4-M10 | 64*64 |
| MT65ZXCS-90°/ER40 | 65 | 18 | 24 | 10 | 112 | 112 | 82.5 | 79.5 | 94 | 94 | 60 | 72 | ≤7.0MPa | ≤6000 | 4-M12 | 73*70 |
-
