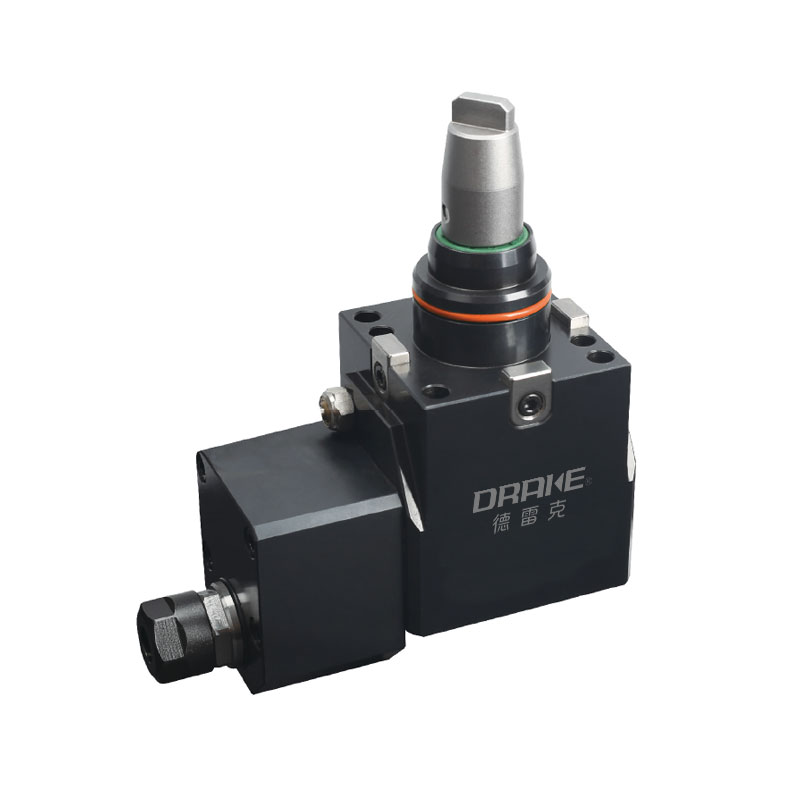

Product Size
Product Parameters
| Model | φD | B | φd | W | L | L2 | L3 | ER | H | Noise at 5000 rpm | Temperature at 5000 rpm | r/min | Fixing screw | Hole spacing |
| BMT40ZS/90°/ER16 | 40 | 12 | 20 | 6 | 61 | 109 | 112 | 16 | 90 | ≤80dB(A) | ≤70℃ | ≤12000 | 4-M8 | 50*60 |
| BMT45ZS/90°/ER16 | 45 | 15 | 20 | 6 | 83 | 109 | 116 | 16 | 90 | ≤80dB(A) | ≤70℃ | ≤12000 | 4-M8 | 58*58 |
| BMT55ZS/90°/ER16 | 55 | 15 | 22 | 8 | 102.5 | 109 | 123 | 16 | 90 | ≤80dB(A) | ≤70℃ | ≤12000 | 4-M10 | 64*64 |
| BMT65ZS/90°/ER16 | 65 | 18 | 24 | 10 | 112 | 121 | 121.5 | 16 | 102 | ≤80dB(A) | ≤70℃ | ≤12000 | 4-M12 | 73*70 |
-
