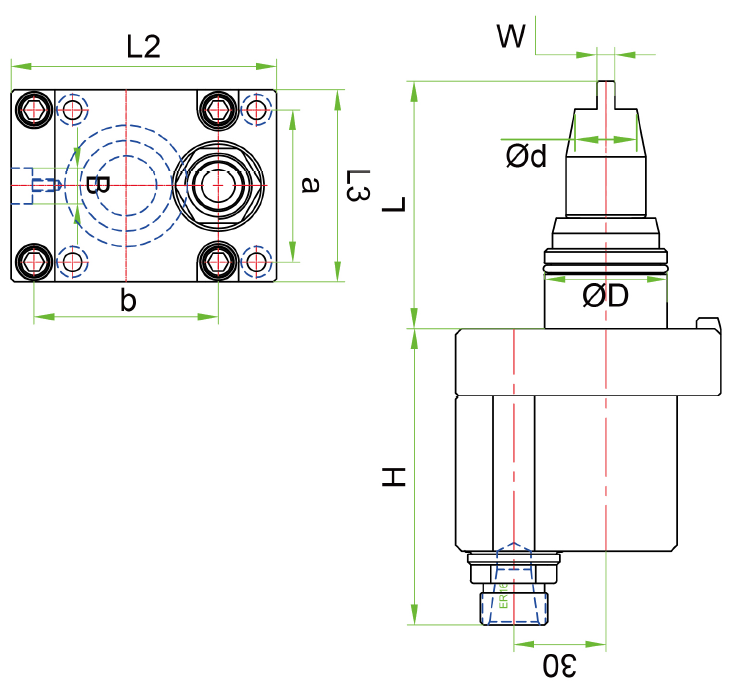

Product Size
Product Parameters
| Model | φD | B | W | L | L2 | L3 | φd | ER | H | Noise at 5000 rpm | Temperature at 5000 rpm | r/min | Fixing screw | a*b |
| BMT40ZS/0-ER16 | 40 | 12 | 6 | 61 | 86.5 | 63 | 20 | 16 | 96.5 | ≤80dB(A) | ≤70℃ | ≤12000 | 4-M8 | 50*60 |
| BMT45ZS/0-ER16 | 45 | 15 | 6 | 83 | 83 | 75 | 20 | 16 | 107.5 | ≤80dB(A) | ≤70℃ | ≤12000 | 4-M8 | 58*58 |
| BMT55ZS/0-ER16 | 55 | 15 | 8 | 102.5 | 97 | 85 | 22 | 16 | 109.5 | ≤80dB(A) | ≤70℃ | ≤12000 | 4-M10 | 64*64 |
| BMT65ZS/0-ER16 | 65 | 18 | 10 | 112 | 94 | 94 | 24 | 16 | 111.5 | ≤80dB(A) | ≤70℃ | ≤12000 | 4-M12 | 73*70 |
-
