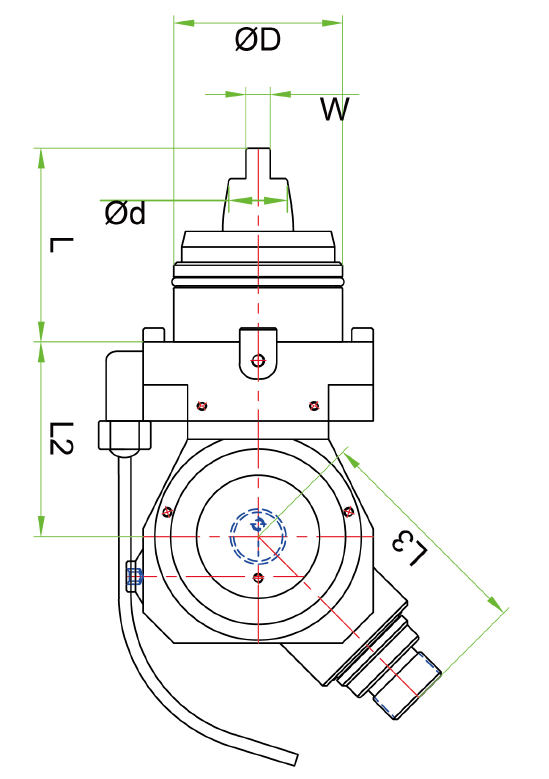

Product Size
Product Parameters
| Mode | φD | B | W | L | L2 | L3 | φd | peed rati | Max angle | Concentircil | r/min | Fixing scr | Hole spacing |
| BMT40W/ER16 | 40 | 12 | 6 | 61 | 56 | 75 | 20 | 1:1 | ±90° | ≤0.005 | ≤6000 | 4-M8 | 50*60 |
| BMT45W/ER16 | 45 | 15 | 6 | 83 | 61 | 75 | 20 | 1:1 | ±90° | ≤0.005 | ≤6000 | 4-M8 | 58*58 |
| BMT55W/ER20 | 55 | 15 | 8 | 102.5 | 56 | 77 | 22 | 1:1 | ±90° | ≤0.005 | ≤6000 | 4-M10 | 64*64 |
| BMT65W/ER20 | 65 | 18 | 10 | 112 | 56 | 77 | 24 | 1:1 | ±90° | ≤0.005 | ≤6000 | 4-M12 | 70*73 |
-
Chuck Maintenance and inspection
Feb. 28, 2025
-
Chuck Installation Precautions
Feb. 28, 2025
-

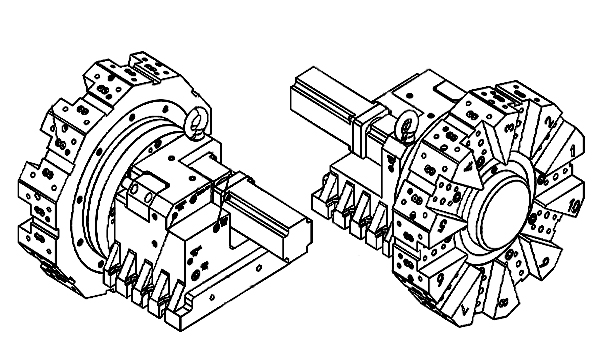

NC Turret Introduction to external functions
Feb. 28, 2025
-

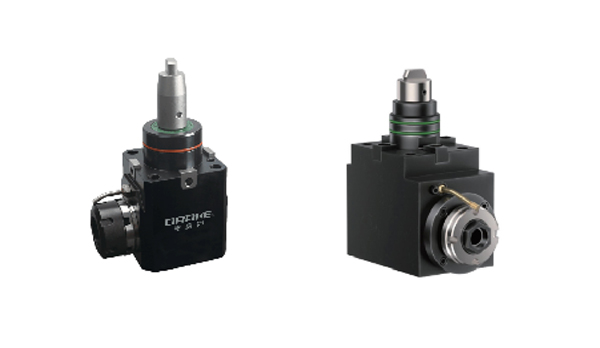

BMT - 90 DEGREE DRIVEN TOOL HOLDER Technical advantages
Feb. 11, 2025
-

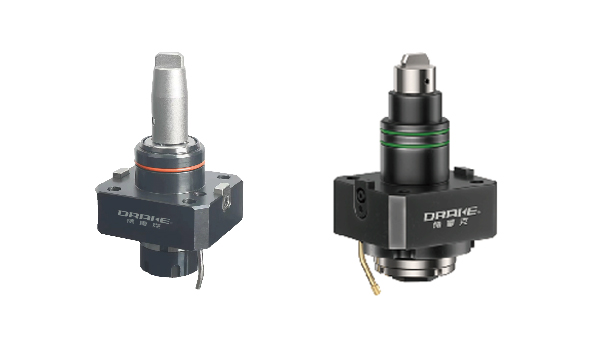

BMT - O DEGREE DRIVEN TOOL HOLDER Technical advantages
