Home > Products > Tool Holder > BMT SERIES

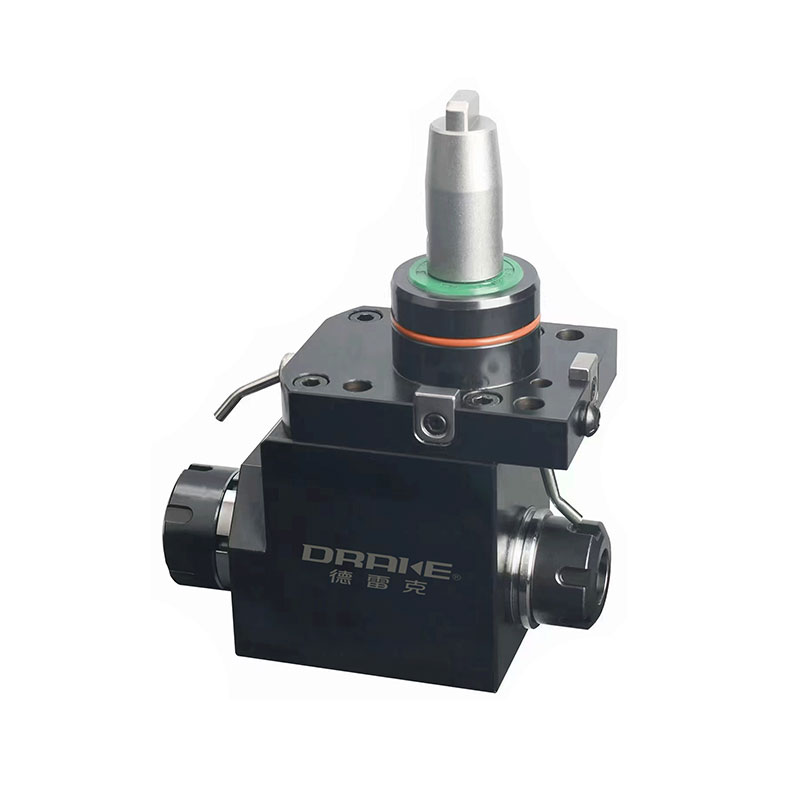

BMT40-65LR/90° Left and right double-outlet power tool holder

Inquire Now Next

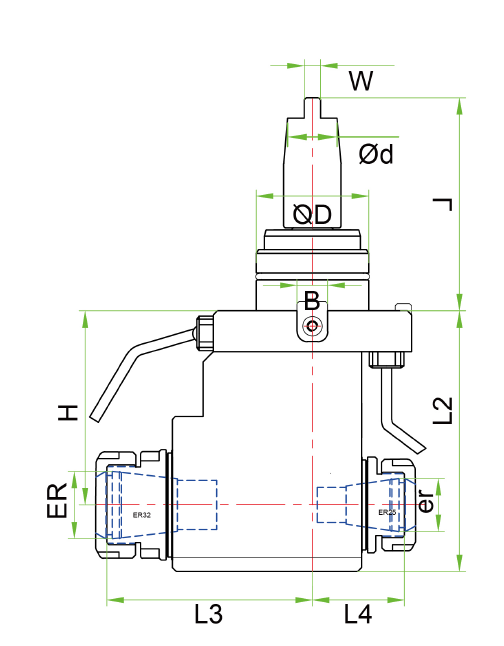

Product Size

Product Parameters

Model	φD	B	W	L	L2	L3	L4	ER	er	H	Noise at 2500 rpm	Temperature at 2500 rpm	r/min	Fixing screw	Hole spacing
MT40LR-75H/ER20	40	12	6	61	117.5	103.5	43.5	20	20	75	≤80dB(A)	≤70℃	≤6000	4-M8	50*60
BMT45LR-85H/ER25	45	15	6	83	117.5	103.5	43.5	25	25	85	≤80dB(A)	≤70℃	≤6000	4-M8	58*58
BMT55LR-85H/ER32-25	55	15	8	102.5	117.5	112.5	43.5	32	25	85	≤80dB(A)	≤70℃	≤6000	4-M10	64*64
MT65LR-85H/ER32-25	65	18	10	112	117.5	112.5	43.5	32	25	85	≤80dB(A)	≤70℃	≤6000	4-M12	73*70
