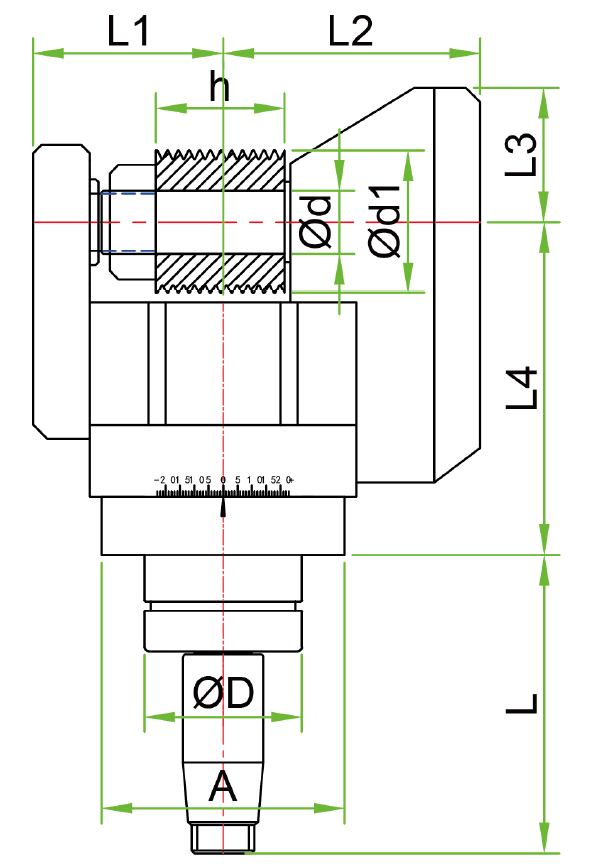

Product Size
Product Parameters
| Model | φD | L | L1 | L2 | L3 | L4 | φd | φd1 | h | A | Reduction ratio | Max module | Max diameter | Fixing screw | Hole spacing |
| BMT40GC | 40 | 61 | 46.5 | 61.5 | 31.5 | 101.25 | 13 | 3235 | 25-30 | 63 | 2:1 | 2 | ≤85 | 4-M8 | 50*60 |
| BMT45GC | 45 | 83 | 56.5 | 69.5 | 31.5 | 101.25 | 13 | 32~35 | 25-30 | 75 | 2:1 | m 2.0 | ≤125 | 4-M8 | 58*58 |
| BMT55GC | 55 | 102.5 | 66.5 | 89.5 | 47 | 116.5 | 22 | 50~55 | 45-50 | 85 | 2:1 | m 2.5 | ≤220 | 4-M10 | 64*64 |
| BMT65GC | 65 | 112 | 66.5 | 89.5 | 47 | 116.5 | 22 | 50~55 | 45-50 | 94 | 2:1 | m 3.0 | ≤220 | 4-M12 | 73*70 |
-
