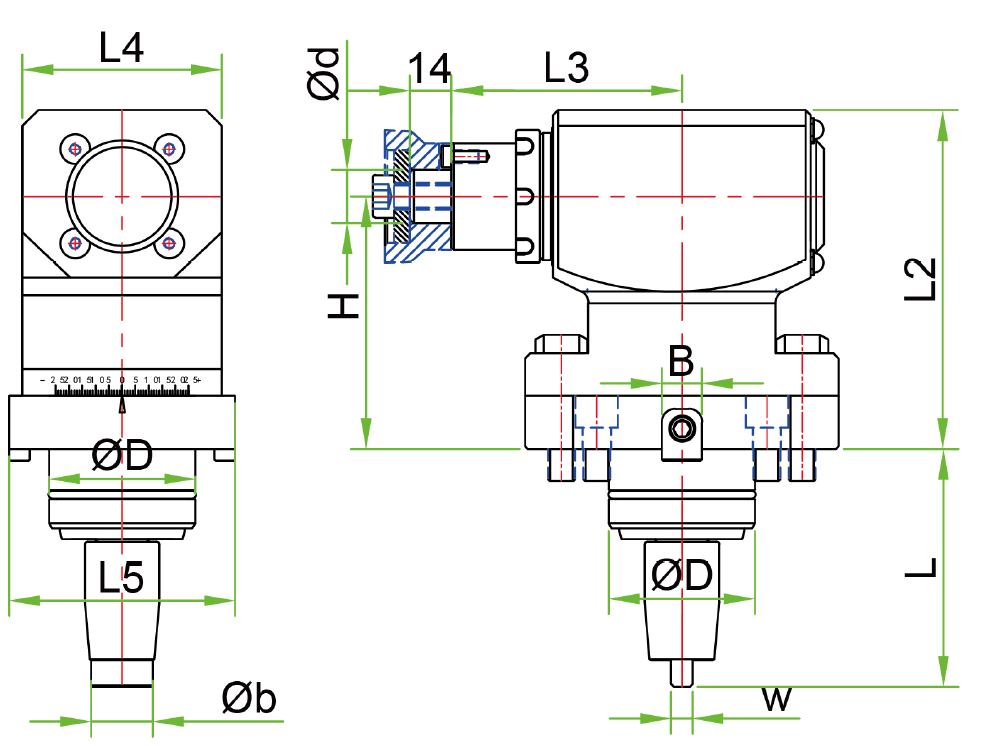

Product Size
Product Parameters
| Model | φD | B | W | L | L2 | φb | L3 | L4 | L5 | φd | H | Noise at 2500 rpm | Temperature at 2500 rpm | r/min | Fixing screw | Hole spacing |
| BMT40CGC-D | 40 | 12 | 6 | 61 | 87.5 | 20 | 79 | 63 | φ108 | ER25 | 60 | ≤80dB(A) | ≤70℃ | ≤6000 | 4-M8 | 50*60 |
| BMT45CGC-D | 45 | 15 | 6 | 83 | 107.5 | 20 | 61 | 75 | 75 | 13~25.4 | 80 | ≤80dB(A) | ≤70℃ | ≤6000 | 4-M8 | 58*58 |
| BMT55CGC-D | 55 | 15 | 8 | 102.5 | 127.5 | 22 | 86.4 | 75 | 85 | 18~31.75 | 95 | ≤80dB(A) | ≤70℃ | ≤6000 | 4-M10 | 64*64 |
| BMT65CGC-D | 65 | 18 | 10 | 112 | 127.5 | 24 | 86.4 | 85 | 94 | 18~31.75 | 95 | ≤80dB(A) | ≤70℃ | ≤6000 | 4-M12 | 73*70 |
-
