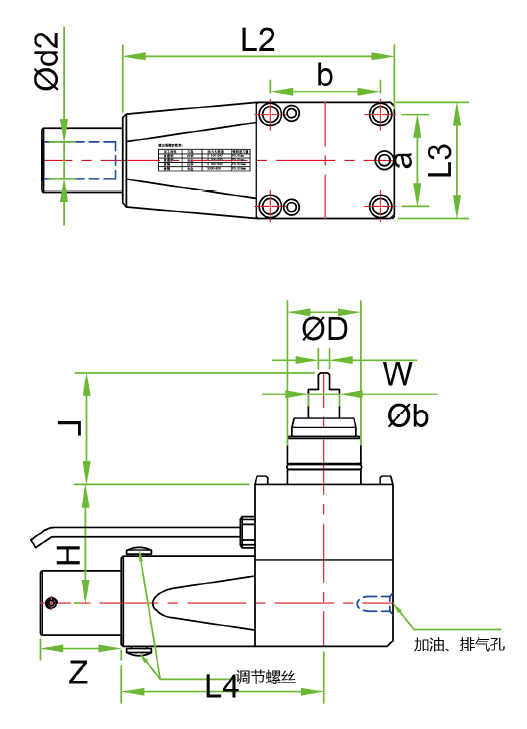

Product Size
Product Parameters
| Model | φD | L | L2 | φb | L3 | L4 | φd | H | Machining stroke | Temperature at 1000 rpm | r/min | Fixing screw | a*b | |
| BMT40C-20DL32 | 40 | 6 | 61 | 148 | 20 | 63 | 110 | 20 | 64.5 | Z=32 | ≤70℃ | ≤1000 | 4-M8 | 50*60 |
| BMT45C-20DL32 | 45 | 6 | 83 | 148 | 20 | 75 | 110 | 20 | 64.5 | Z=32 | ≤70℃ | ≤1000 | 4-M8 | 58*58 |
| BMT55C-20DL35 | 55 | 8 | 102.5 | 164 | 22 | 85 | 115 | 20 | 60.5 | Z=35 | ≤70℃ | ≤1000 | 4-M10 | 64*64 |
| BMT65C-20DL38 | 65 | 10 | 112 | 170 | 24 | 94 | 122 | 20 | 72 | Z=38 | ≤70℃ | ≤1000 | 4-M12 | 73*70 |
-
