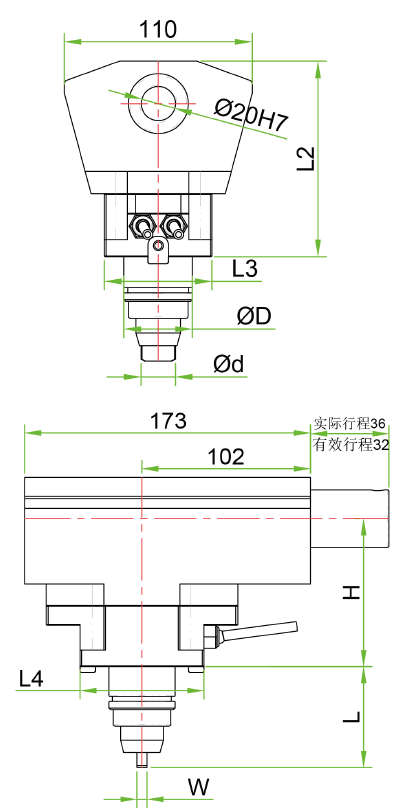

Product Size
Product Parameters
| Model | φD | W | L | L2 | L3 | L4 | φd | H | Machining stroke | Temperature at 1000 rpm | r/min | Fixing screw | a*b |
| BMT40TC-35L | 40 | 6 | 61 | 114.5 | 63 | 75 | 20 | 90 | Z=36 | ≤50℃ | ≤600 | 4-M8 | 50*60 |
| BMT45TC-35L | 45 | 6 | 83 | 114.5 | 75 | 83 | 20 | 90 | Z=36 | ≤50℃ | ≤600 | 4-M8 | 58*58 |
| BMT55TC-35L | 55 | 8 | 103 | 114.5 | 85 | 97 | 22 | 90 | Z=36 | ≤50℃ | ≤600 | 4-M10 | 64*64 |
| BMT65TC-35I | 65 | 10 | 112 | 114.5 | 94 | 103 | 24 | 90 | Z=36 | ≤50℃ | ≤600 | 4-M12 | 73*70 |
-
