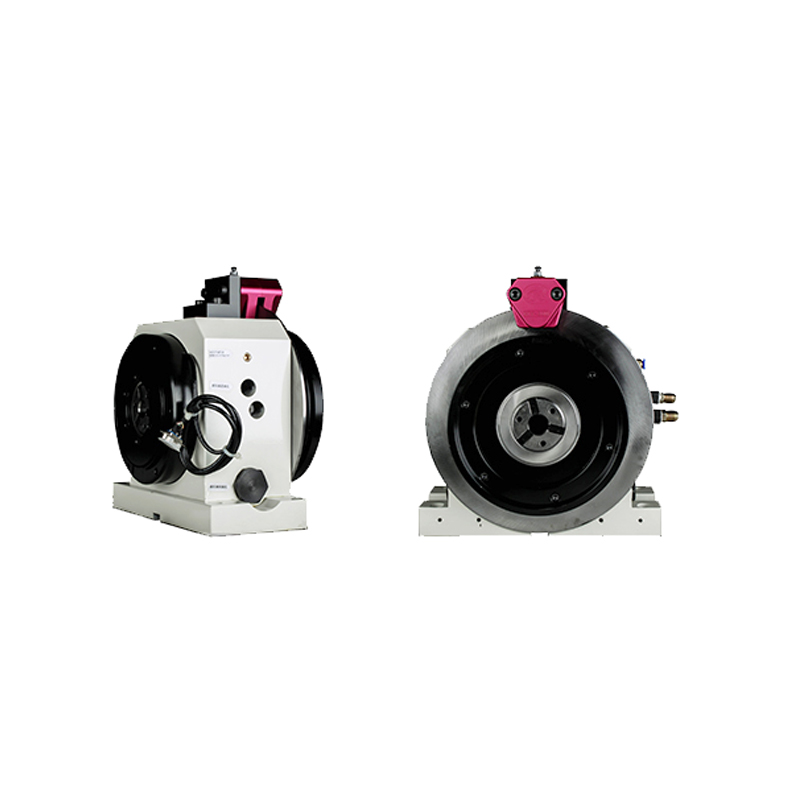

JHP-32 Turning-Milling compound. Double-barrel clamp type bi-directional spindle holder. Double-headed main axle clamp (Extension sleeve)
Product Details
Product Features：
● The double tube clip holds, the accuracy of the holding body is 0.005mm, and the repeated accuracy of the workpiece is ≤0.03mm.
● The maximum use pressure is 20kg/cm2;, the maximum speed 3000rpm/min.
● The preparation of the clip can be installed according to the requirements of the design level, ≤45°, and 90°.
● Pistons area: 138cm2; Pistons move to the left, the workpiece is clamped, the piston itinerary: 6mm
● Synchronous wheel: 72-8m-25-bs
● "0" concentric bases ensure concentricity. Let the knife design easily solve the short -term workshot into the knife.
● Compound waterproof mechanism design ensures waterproof performance.
Product Application：
● Two -ends of rotary special planes, heart shafts, shaft sleeve pipe processing; widely used in manufacturing industries involving shaft applications such as automotive, electromechanical, etc.
● Double -sided processing of two -headed workpiece of 160mm long -holding. You can support automatic feeding.
Product Size
None
Product Parameters
| Product Model | Product Parameters | ||||||||||||||||||
| A | B | C | D | E | F | G | H | I | K | L | M | N | S | R | J (Clamping length) | Extension sleeve Clamping length | Maximum through hole | Adapter cartridge clip | |
| JHP-32（175） | 135 | 240 | 210 | 113 | 34.5 | 198.3 | 67 | 178 | 25 | 240 | 100 | 280 | 130 | 174.8 | 11 | 175 | 320 | 32 | NGT-60T |
-
![JHP-32 (D) Single Cylinder Clamp Bi-directional Main Shaft Clamp. Double-head Main Shaft Clamp]( "JHP-32 (D) Single Cylinder Clamp Bi-directional Main Shaft Clamp. Double-head Main Shaft Clamp")

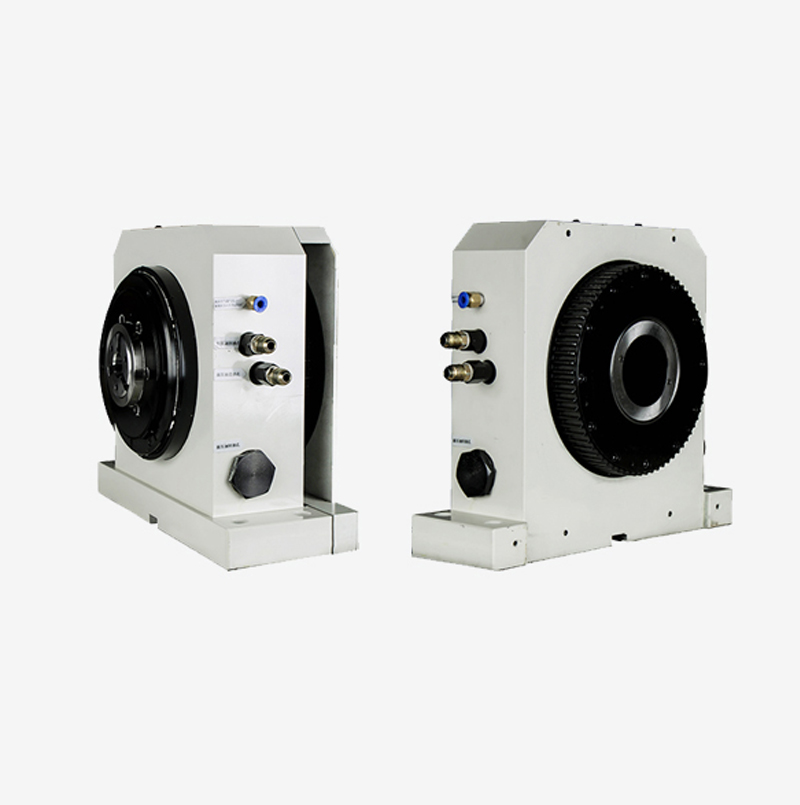

JHP-32 (D) Single Cylinder Clamp Bi-directional Main Shaft Clamp. Double-head Main Shaft Clamp
-
![JHP-32 (D) Single Cylinder Clamp Bi-directional Main Shaft Clamp. Double-head Main Shaft Clamp]( "JHP-32 (D) Single Cylinder Clamp Bi-directional Main Shaft Clamp. Double-head Main Shaft Clamp")
JHP-32 (D) Single Cylinder Clamp Bi-directional Main Shaft Clamp. Double-head Main Shaft Clamp
-
![JHP-32 (D) Single Cylinder Clamp Bi-directional Main Shaft Clamp. Double-head Main Shaft Clamp]( "JHP-32 (D) Single Cylinder Clamp Bi-directional Main Shaft Clamp. Double-head Main Shaft Clamp")
JHP-32 (D) Single Cylinder Clamp Bi-directional Main Shaft Clamp. Double-head Main Shaft Clamp
-
![JHP-32 (D) Single Cylinder Clamp Bi-directional Main Shaft Clamp. Double-head Main Shaft Clamp]( "JHP-32 (D) Single Cylinder Clamp Bi-directional Main Shaft Clamp. Double-head Main Shaft Clamp")
JHP-32 (D) Single Cylinder Clamp Bi-directional Main Shaft Clamp. Double-head Main Shaft Clamp
-
