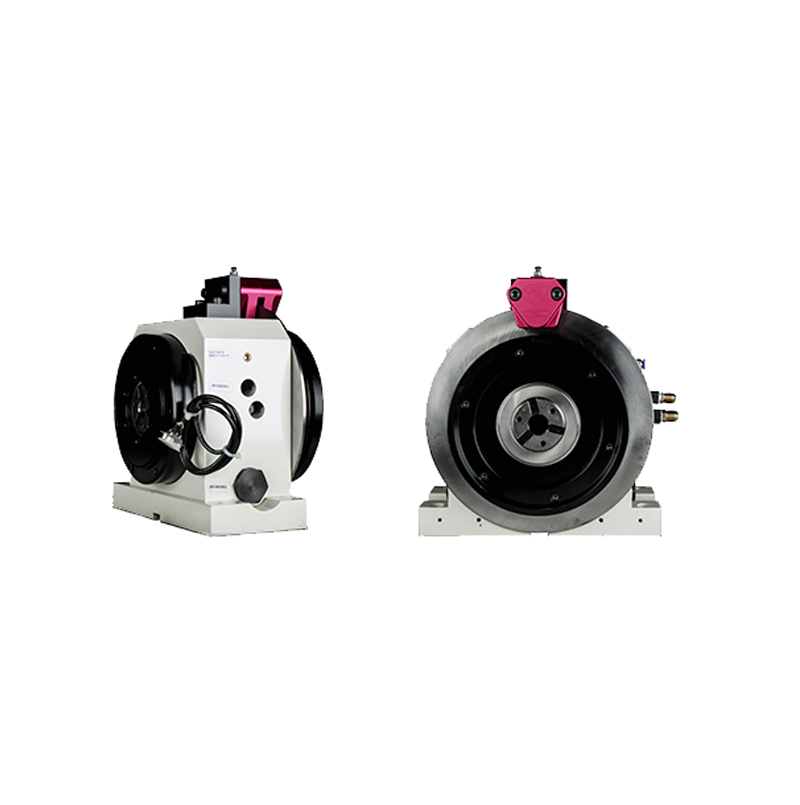

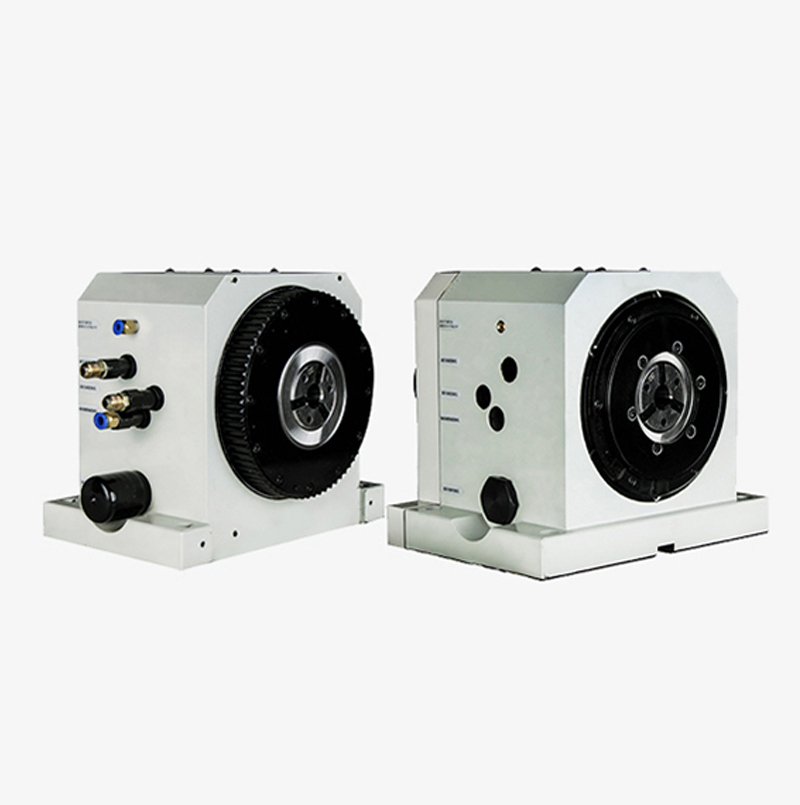

JHP-32 Standard Double Cylinder Clamp Bi-directional Main Shaft Clamp. Double-head Main Shaft Clamp (Extension sleeve can be added)

Add.: Yaoguan, WuJin District, Changzhou, Jiangsu, China 213000
Contact Person: Joanna Zhou
Mobile/Whatsapp/Wechat: <a href="https://api.whatsapp.com/send?phone=613815018181Joanna zhou 8618861119906Jane zhang" target="_blank"> 8613815018181Joanna zhou 8618861119906Jane zhang

Inquire Now Next

Product Details

Product Features：
● The double tube clip holds, the accuracy of the holding body is 0.005mm, and the repeated accuracy of the workpiece is ≤0.03mm.
● The maximum use pressure is 20kg/cm2;, the maximum speed 3000rpm/min.
● The preparation of the clip can be installed according to the requirements of the design level, ≤45°, and 90°.
● Pistons area: 138cm2; Pistons move to the left, the workpiece is clamped, the piston itinerary: 6mm.
● Synchronous wheel: 72-8m-25-bs.
● "0" concentric bases ensure concentricity. Let the knife design easily solve the short -term workshot into the knife.
● Compound waterproof mechanism design ensures waterproof performance.

Product Application：
● Two -ends of rotary special planes, heart shafts, shaft sleeve pipe processing; widely used in manufacturing industries involving shaft applications such as automotive, electromechanical, etc.
● Double -sided processing of two -headed workpiece of 160mm long -holding. You can support automatic feeding.

Product Size

None

Product Parameters

Product Model	Product Parameters
	A	B	C	D	E	F	G	H	I	J	K	L	N	S	R	M (Clamping length)	Extension sleeve Clamping length	Maximum through hole	Adapter cartridge clip
JHP-32（170）	135	240	210	108	26	172	16	185	240	100	280	130	11	167	11	170	320	32	NGT-60T
JHP-32（210）	135	240	210	148	26	212	16	185	240	130	280	159	11	196	0	210	360	32	NGT-60T
JHP-32（260）	135	240	210	198	26	262	16	185	240	180	280	209	11	246	0	260	410	32	NGT-60T
