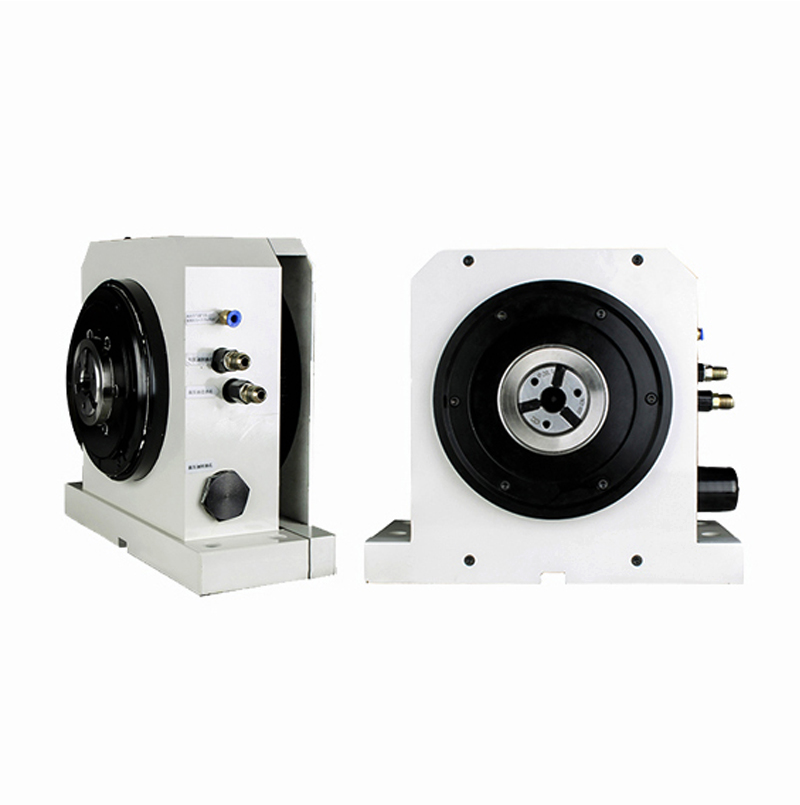

JHP-32 (retracted) double-barrel clamp bi-directional spindle holder.Double-head spindle holder

Add.: Yaoguan, WuJin District, Changzhou, Jiangsu, China 213000
Contact Person: Joanna Zhou
Mobile/Whatsapp/Wechat: <a href="https://api.whatsapp.com/send?phone=613815018181Joanna zhou 8618861119906Jane zhang" target="_blank"> 8613815018181Joanna zhou 8618861119906Jane zhang

Inquire Now Next

Product Details

Product Features:
1.The double tube clip holds, the accuracy of the holding body is 0.005mm, and the repeated accuracy of the workpiece is ≤0.03mm.
2.The maximum use pressure is 20kg/cm2;, the maximum speed 3000rpm/min.
3.The preparation of the clip can be installed according to the requirements of the design level, ≤45°, and 90°.
4.Pistons area: 138.4cm2; Pistons move to the left, the workpiece is clamped, the piston itinerary: 6mm.
5.Synchronous wheel: 72-8m-25-bs.
6."0" concentric bases ensure concentricity. Let the knife design easily solve the short -term workshot into the knife.
7.Compound waterproof mechanism design ensures waterproof performance.

Product Application：
1.Two -ends of rotary special planes, heart shafts, shaft sleeve pipe processing; widely used in manufacturing industries involving shaft applications such as automotive, electromechanical, etc.
2.80-150mm long -holding short -holding short -holding of the two -sided processing. It can support automatic feeding.

Product Size

None

Product Parameters

Product Model	Product Parameters
	A	B	C	D	E	F	G	H	I	J	K	L	N	S	R	M (Clamping length)	Maximum through hole	Adapter cartridge clip
JHP-32（80）	155	280	240	83	26	163	32	185	280	60	320	100	68.5	137	6	80	32	NGT-60T
JHP-32（90）	155	280	240	83	26	163	32	185	280	60	320	100	58.5	137	6	90	32	NGT-60T
JHP-32（100）	155	280	240	83	26	163	32	185	280	60	320	100	48.5	137	6	100	32	NGT-60T
JHP-32（110）	155	280	240	83	26	163	32	185	280	60	320	100	38.5	137	6	110	32	NGT-60T
JHP-32（120）	155	280	240	83	26	163	32	185	280	60	320	100	28.5	137	6	120	32	NGT-60T
JHP-32（130）	155	280	240	83	26	163	32	185	280	60	320	100	18.5	137	6	130	32	NGT-60T
JHP-32（140）	155	280	240	83	26	163	32	185	280	60	320	100	8.5	137	6	140	32	NGT-60T
JHP-32（150）	155	280	240	83	26	163	32	185	280	60	320	100	0	137	6	150	32	NGT-60T
