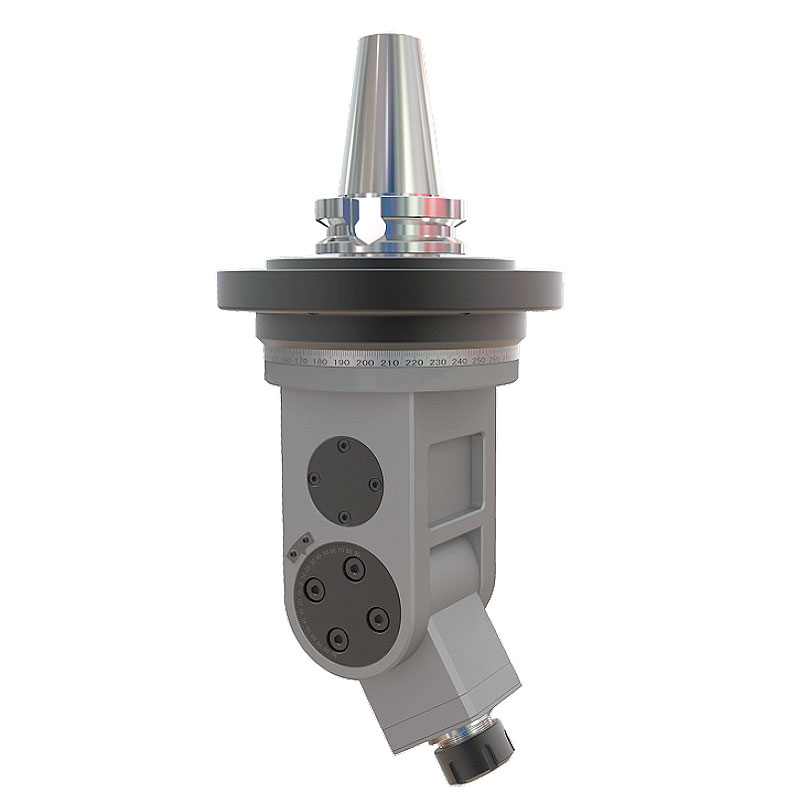

Product Details

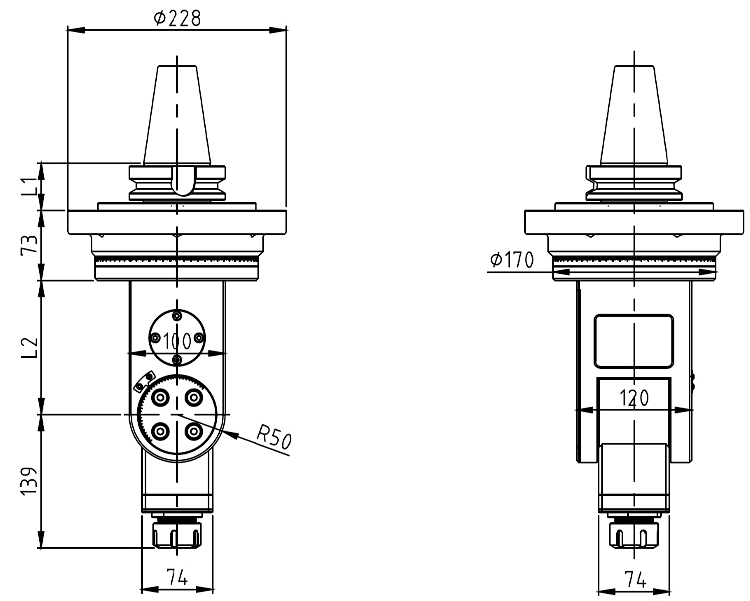

Product Size
Product Parameters
| Model | Output | L1 | L2 | L3 | Power | Maximum speed | Maximum torque | Speed ratio |
| AGU-ER32-140 | ER32 | 42/49 | 140 | 60 | 4Kw | 3500RPM | 45Nm | 1:1 |
| AGU-ER32-220 | ER32 | 42/49 | 220 | 130 | 4Kw | 3500RPM | 45Nm | 1:1 |
| AGU-ER32-300 | ER32 | 42/49 | 300 | 200 | 4Kw | 3500RPM | 45Nm | 1:1 |
-
