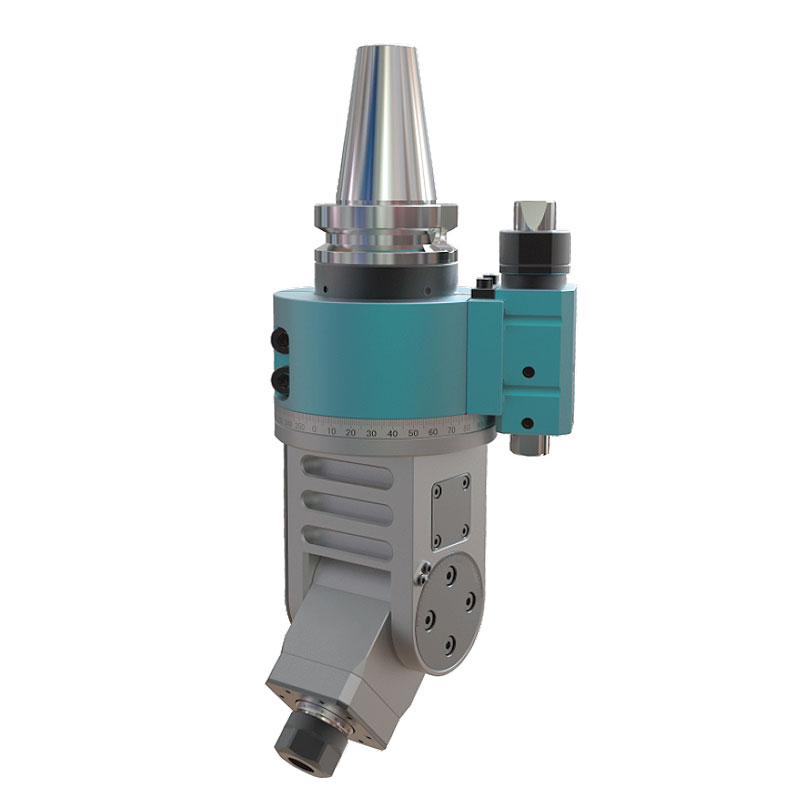

AGU-ER16

Inquire Now Next

Product Details

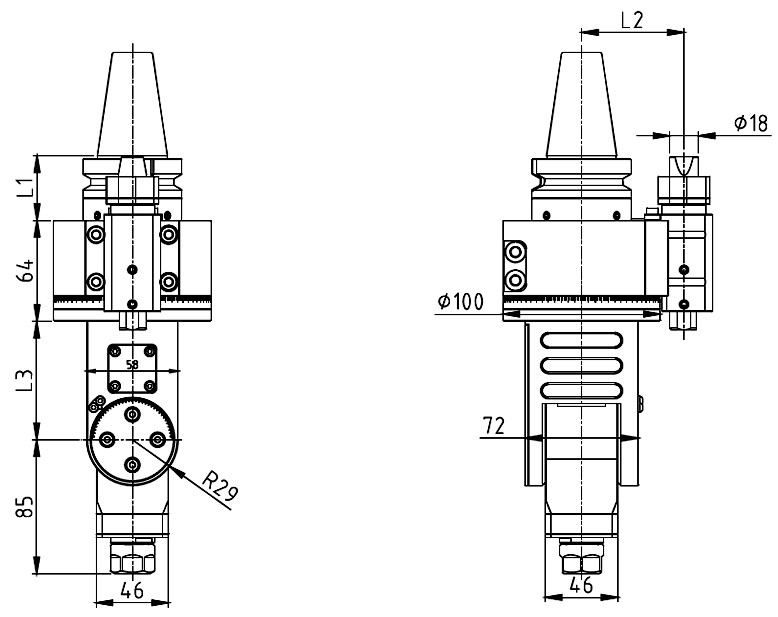

Product Size

Product Parameters

Model	Output	L1	L2	L3	Power	Maximum speed	Maximum torque	Speed ratio
AGU-ER16-75	ER 16	41/48	65/80	75	1.5Kw	4500RPM	12Nm	1:1
AGU-ER16-125	ER 16	41/48	65/80	125	1.5Kw	4500RPM	12Nm	1:1
AGU-ER16-175	ER 16	41/48	65/80	175	1.5Kw	4500RPM	12Nm	1:1
