Home > Products > Angle head

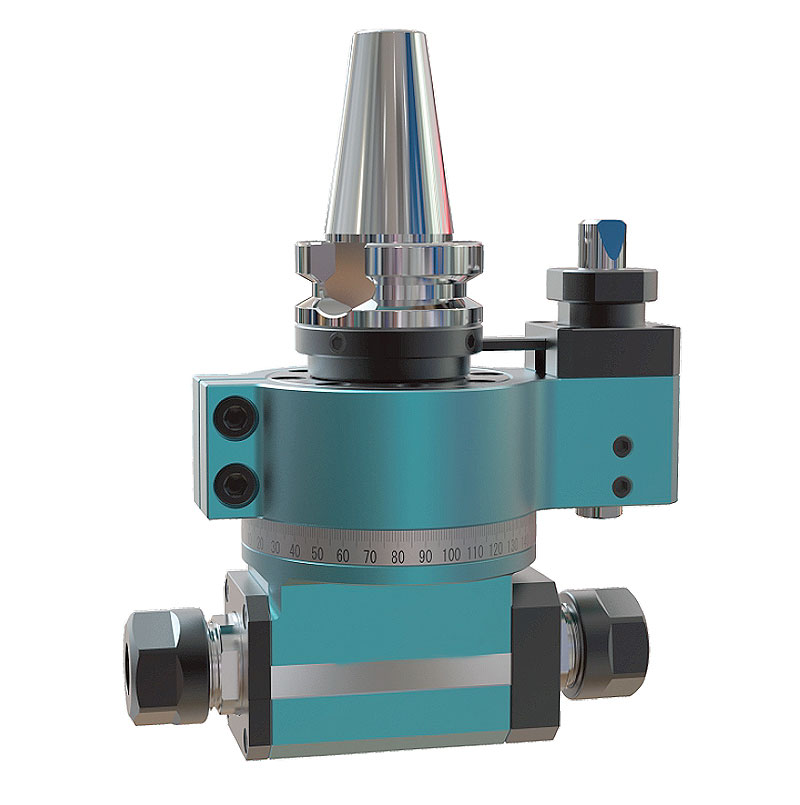

AGS90-ER16x2

Inquire Now Next

Product Details

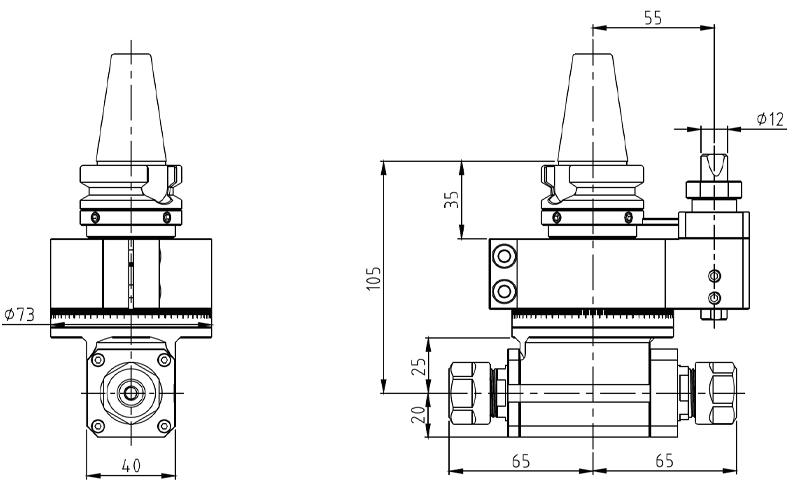

Product Size

Product Parameters

Model	Output	Power	Maximum speed	Maximum torque	Speed ratio	Weight
AGS90-ER16x2	ER16	1.5Kw	4500RPM	12Nm	1:1	2.2Kg
