Home > Products > Angle head

AG90-F63

Inquire Now Next

Product Details

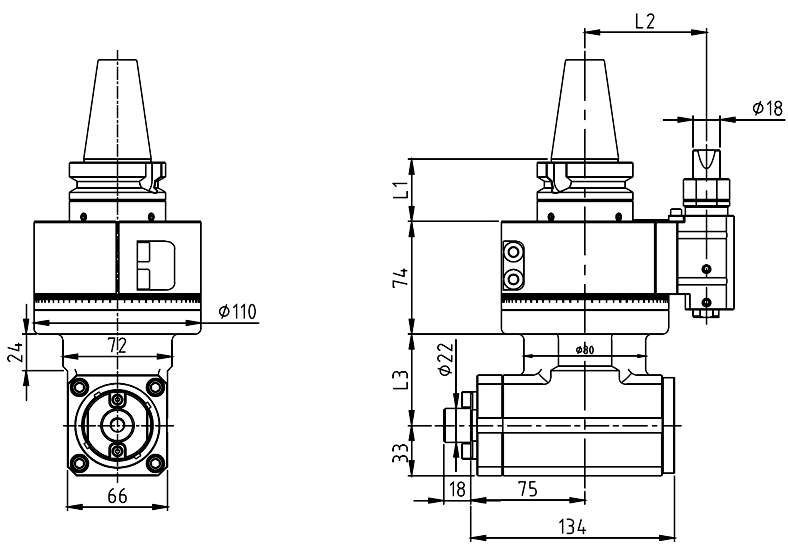

Product Size

Product Parameters

Model	Output	L1	L2	L3	Power	Maximum speed	Maximum torque	Speed ratio
AG90-F63-60	FMB22	41/48	80	60	4Kw	3500RPM	45Nm	1:1
AG90-F63-130	FMB22	41/48	80	130	4Kw	3500RPM	45Nm	1:1
AG90-F63-200	FMB22	41/48	80	200	4Kw	3500RPM	45Nm	1:1
