Home > Products > Angle head

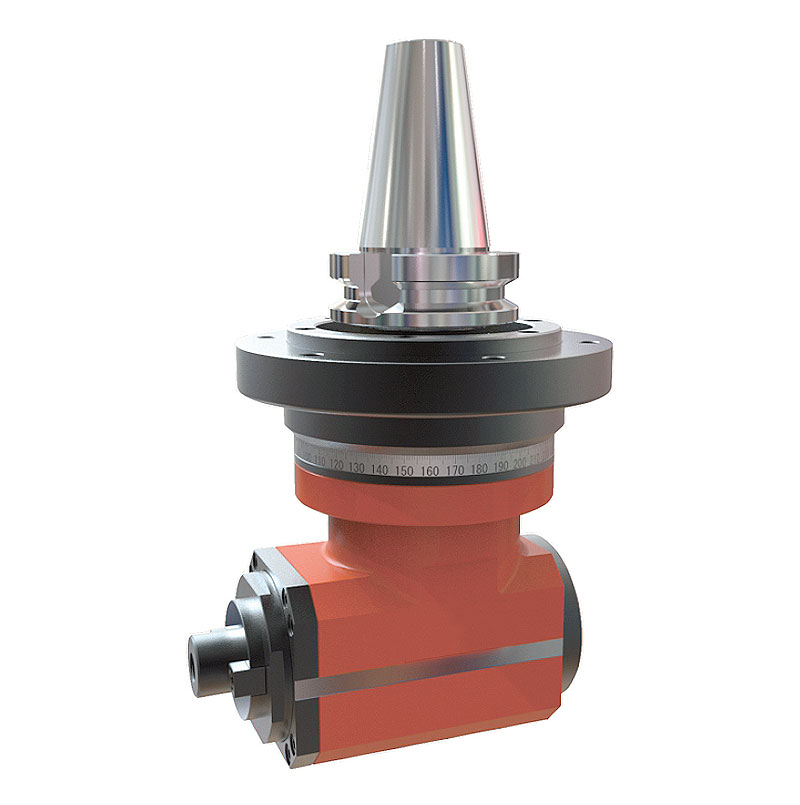

AG90-F100

Inquire Now Next

Product Details

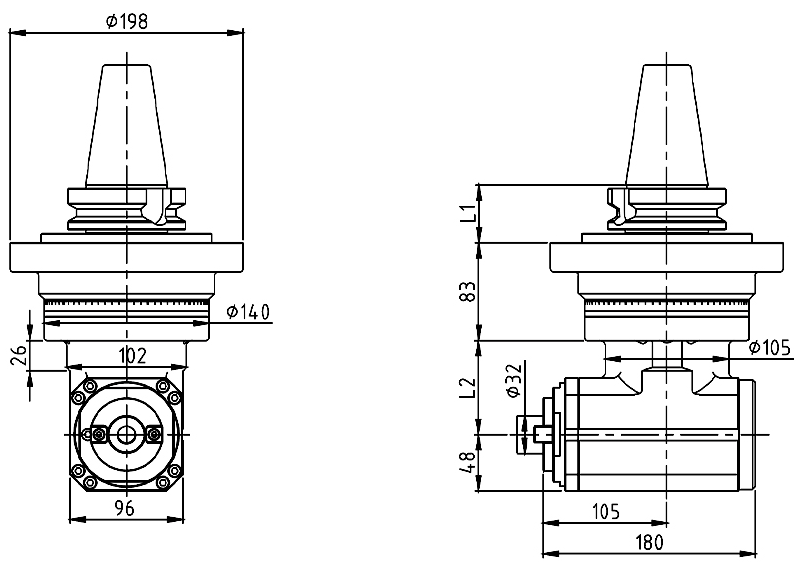

Product Size

Product Parameters

Model	Output	L1	L2	Power	Maximum speed	Maximum torque	Speed ratio
AG90-F100-80	FM B32	42/49	80	8Kw	3000RPM	100Nm	1:1
AG90-F100-160	FM B32	42/49	160	8Kw	3000RPM	100Nm	1:1
AG90-F100-240	FM B32	42/49	240	8Kw	3000RPM	100Nm	1:1
