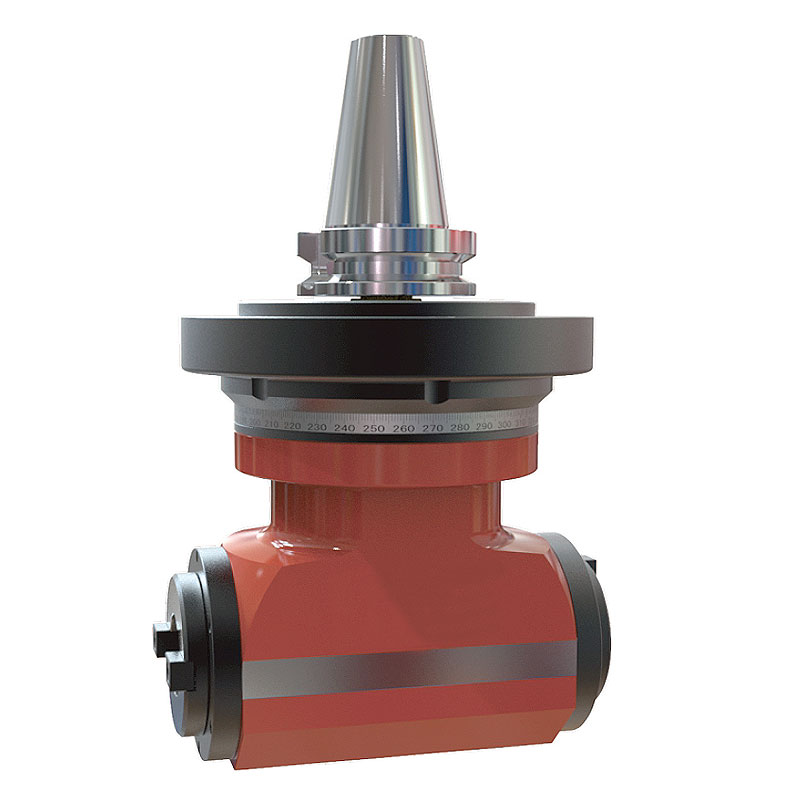

Product Details

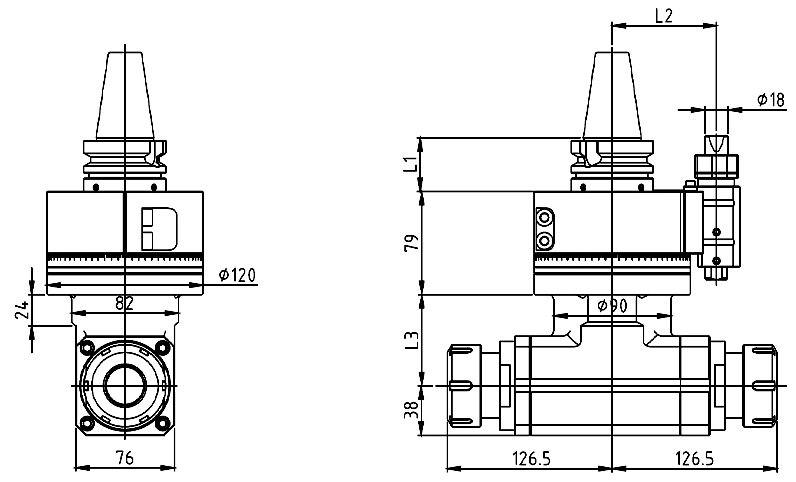

Product Size
Product Parameters
| Model | Output | L1 | L2 | L3 | Power | Maximum speed | Maximum torque | Speed ratio |
| AG90-ER40x2-70 | ER40 | 41/48 | 80 | 70 | 6Kw | 3500RPM | 75Nm | 1:1 |
| AG90-ER40x2-150 | ER40 | 41/48 | 80 | 150 | 6Kw | 3500RPM | 75Nm | 1:1 |
| AG90-ER40x2-230 | ER40 | 41/48 | 80 | 230 | 6Kw | 3500RPM | 75Nm | 1:1 |
-
