Home > Products > Angle head

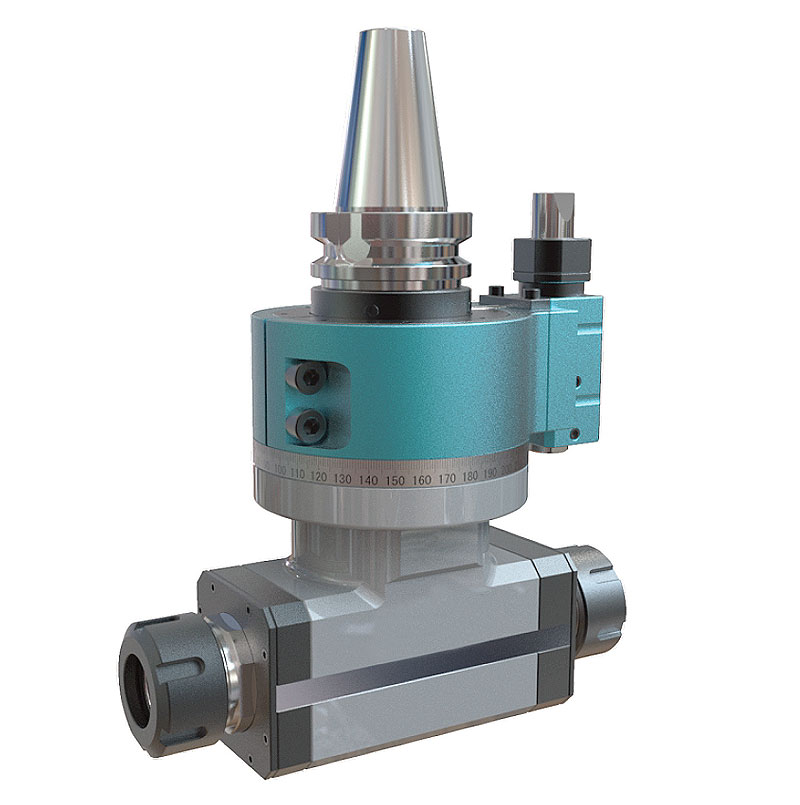

AG90-ER32*2

Inquire Now Next

Product Details

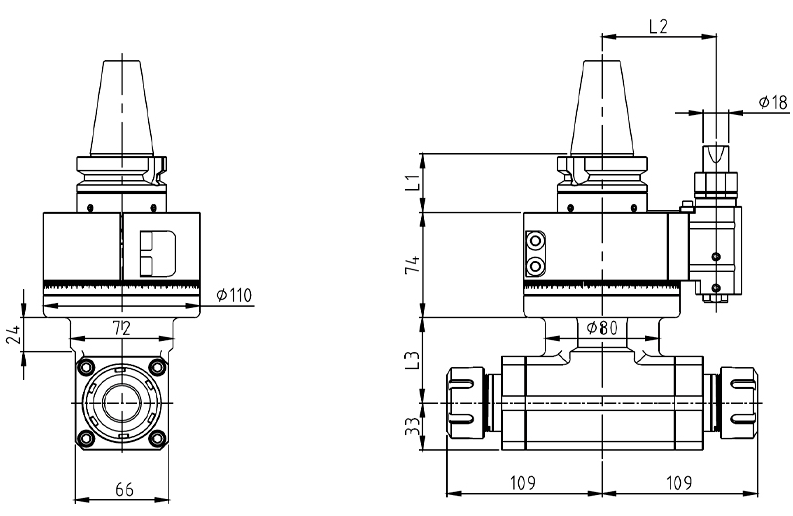

Product Size

Product Parameters

Model	Output	L1	L2	L3	Power	Maximum speed	Maximum torque	Speed ratio
AG90-ER32x2-60	ER32	41/48	80	60	4Kw	3500RPM	45Nm	1:1
AG90-ER32x2-130	ER32	41/48	80	130	4Kw	3500RPM	45Nm	1:1
AG90-ER32x2-200	ER32	41/48	80	200	4Kw	3500RPM	45Nm	1:1
