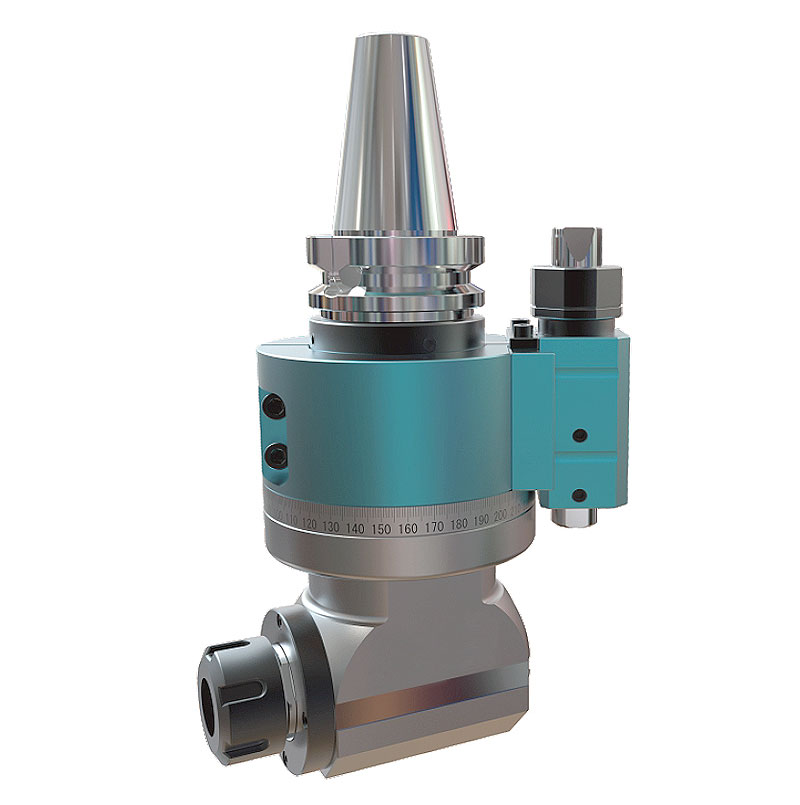

Product Details

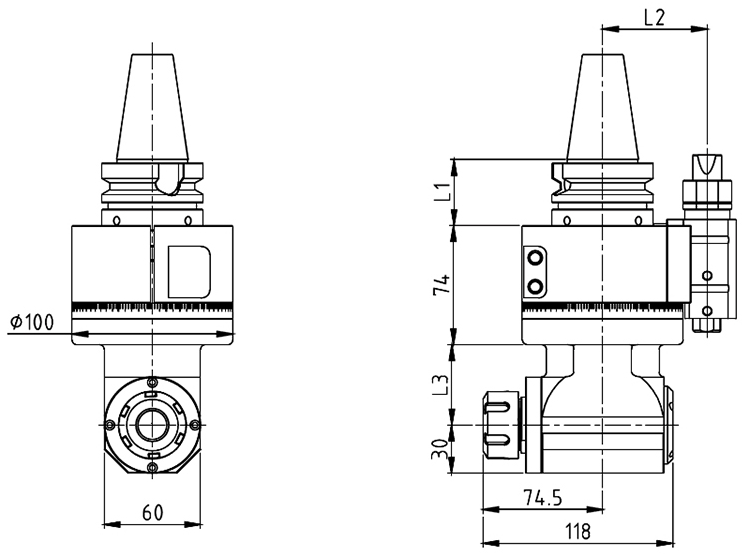

Product Size
Product Parameters
| Model | Output | L1 | L2 | L3 | Power | Maximum speed | Maximum torque | Speed ratio |
| AG90-ER25M-50 | ER25 | 41/48 | 65/80 | 50 | 3Kw | 4500RPM | 32Nm | 1:1 |
| AG90-ER25M-120 | ER25 | 41/48 | 65/80 | 120 | 3Kw | 4500RPM | 32Nm | 1:1 |
| AG90-ER25M-170 | ER25 | 41/48 | 65/80 | 170 | 3Kw | 4500RPM | 32Nm | 1:1 |
-
