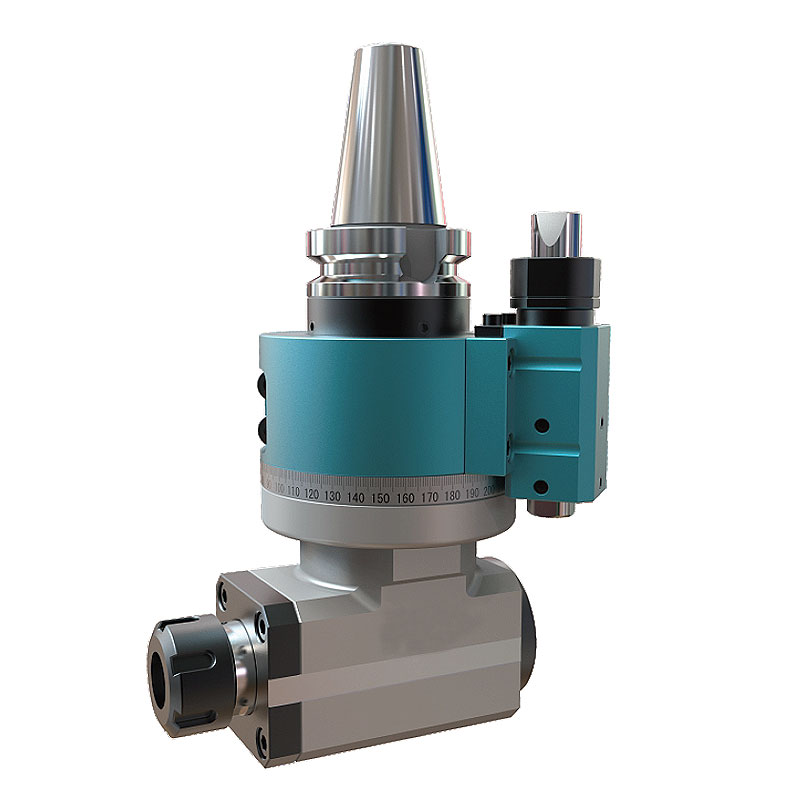

AG90-ER25

Inquire Now Next

Product Details

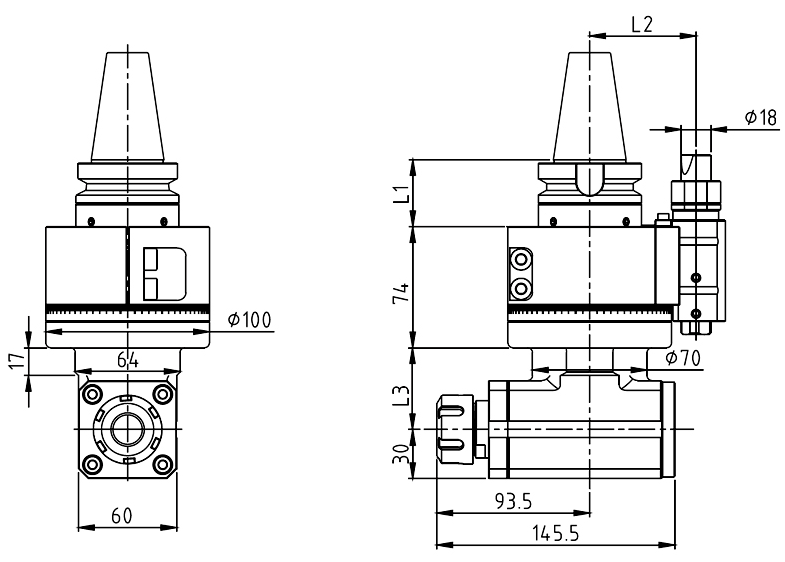

Product Size

Product Parameters

Model	Output	L1	L2	L3	Power	Maximum speed	Maximum torque	Speed ratio
AG90-ER25-50	ER25	41/48	65/80	50	3Kw	4500RPM	32Nm	1:1
AG90-ER25-120	ER25	41/48	65/80	120	3Kw	4500RPM	32Nm	1:1
AG90-ER25-170	ER25	41/48	65/80	170	3Kw	4500RPM	32Nm	1:1
