Home > Products > Angle head

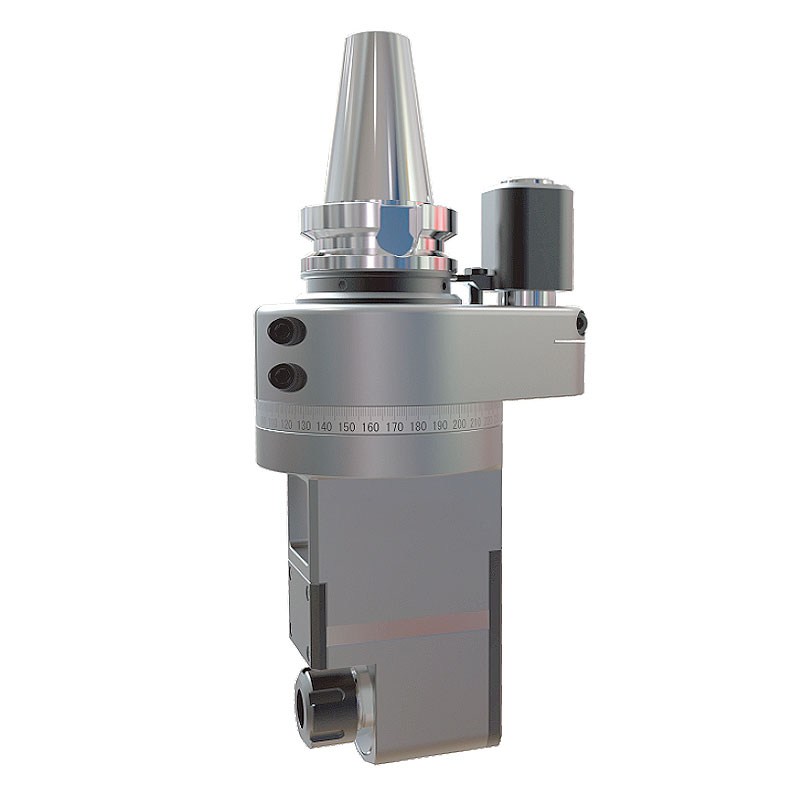

AG90-ER20F

Inquire Now Next

Product Details

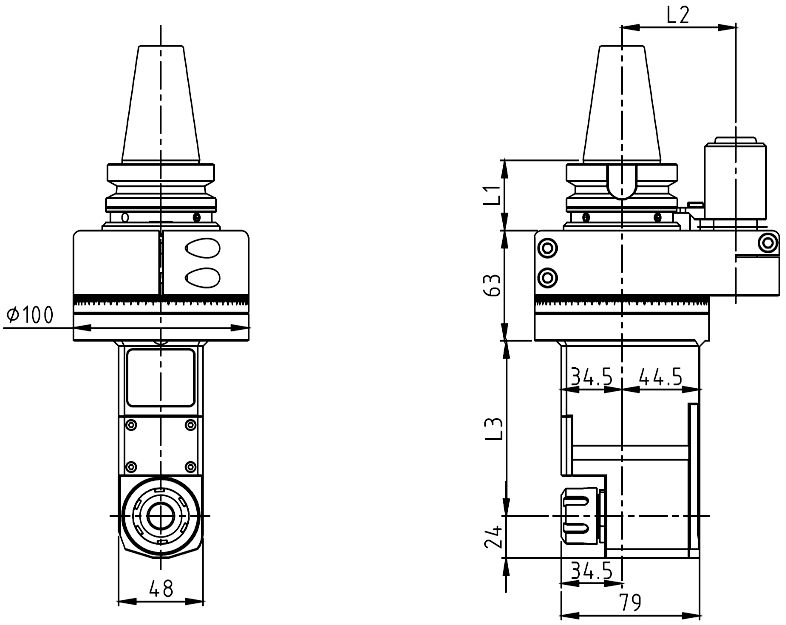

Product Size

Product Parameters

Model	Output	L1	L2	L3	Power	Maximum speed	Maximum torque	Speed ratio
AG90-ER20F-100	ER20	41/48	65/80	100	2Kw	4500RPM	20Nm	1:1
AG90-ER20F-150	ER20	41/48	65/80	150	2Kw	4500RPM	20Nm	1:1
AG90-ER20F-200	ER20	41/48	65/80	200	2Kw	4500RPM	20Nm	1:1
