Product Details

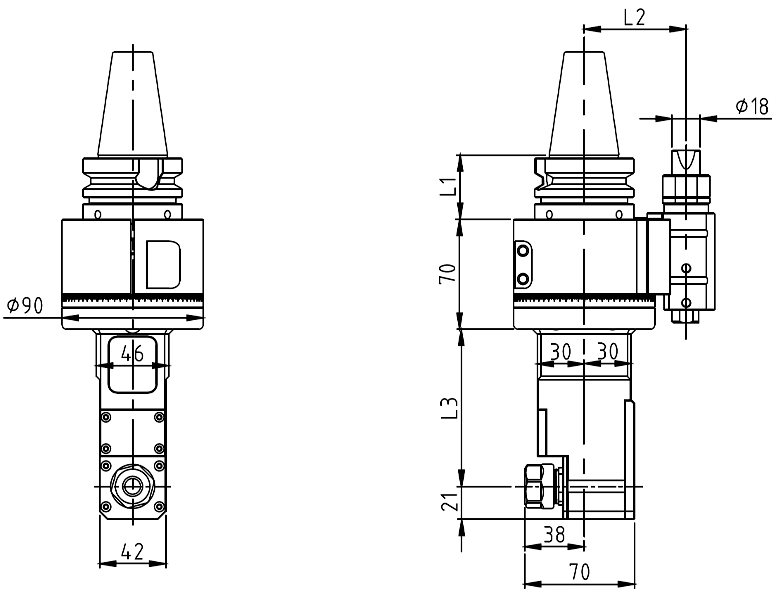

Product Size
Product Parameters
| Model | Output | L1 | L2 | L3 | Power | Maximum speed | Maximum torque | Speed ratio |
| AG90-ER16F-100 | ER 16 | 41/48 | 65/80 | 100 | 1.5Kw | 4500RPM | 12Nm | 1:1 |
| AG90-ER16F-150 | ER 16 | 41/48 | 65/80 | 150 | 1.5Kw | 4500RPM | 12Nm | 1:1 |
| AG90-ER16F-200 | ER 16 | 41/48 | 65/80 | 200 | 1.5Kw | 4500RPM | 12Nm | 1:1 |
-
