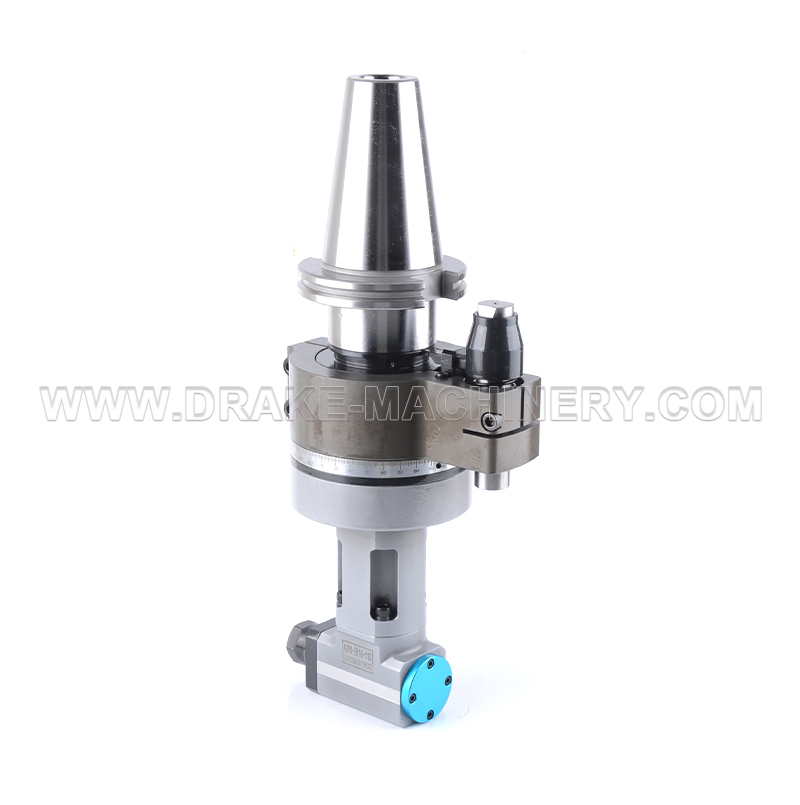

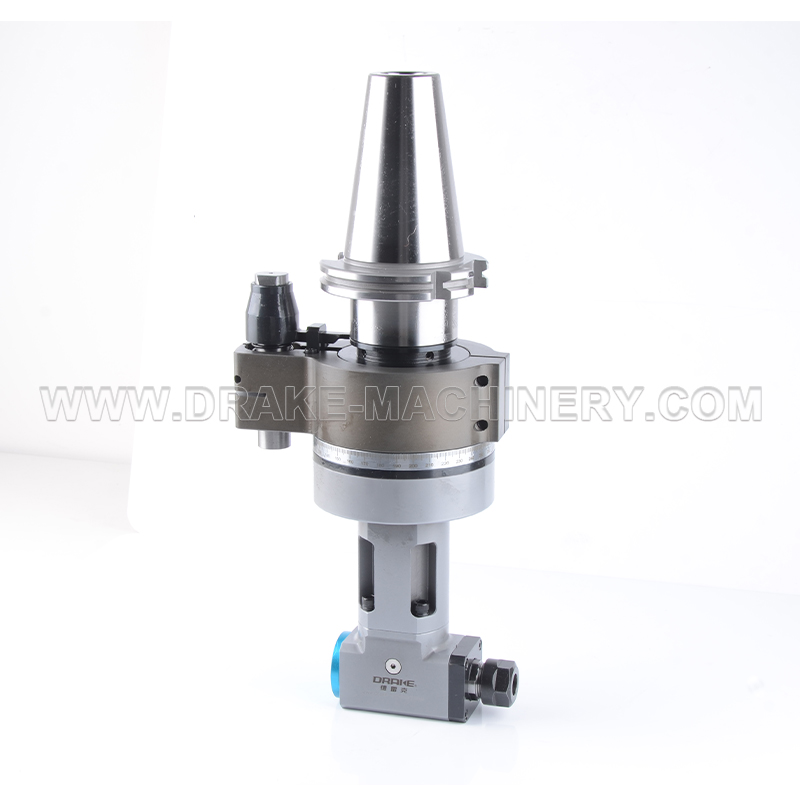

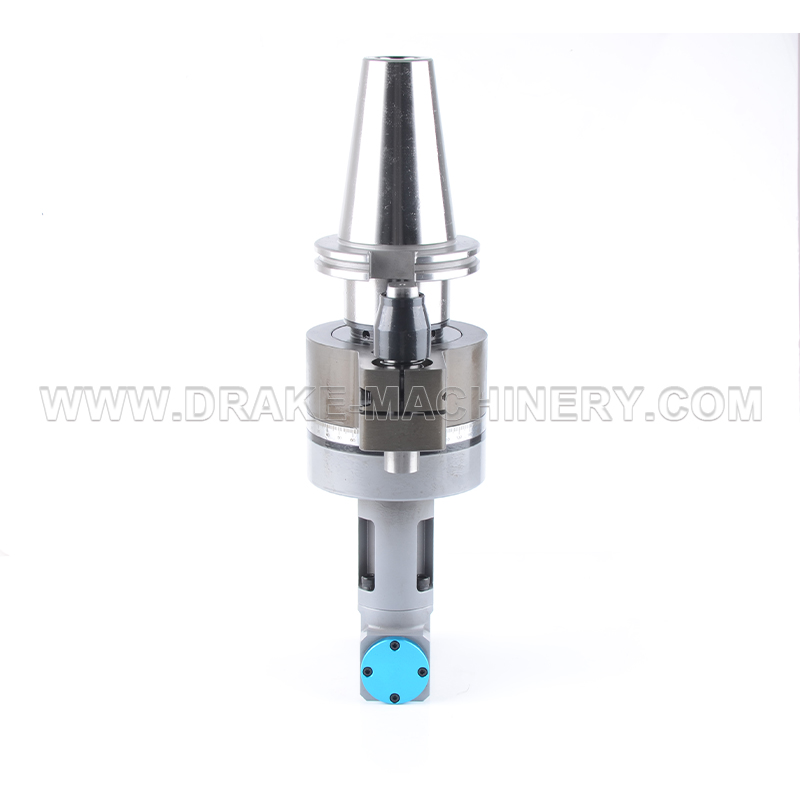

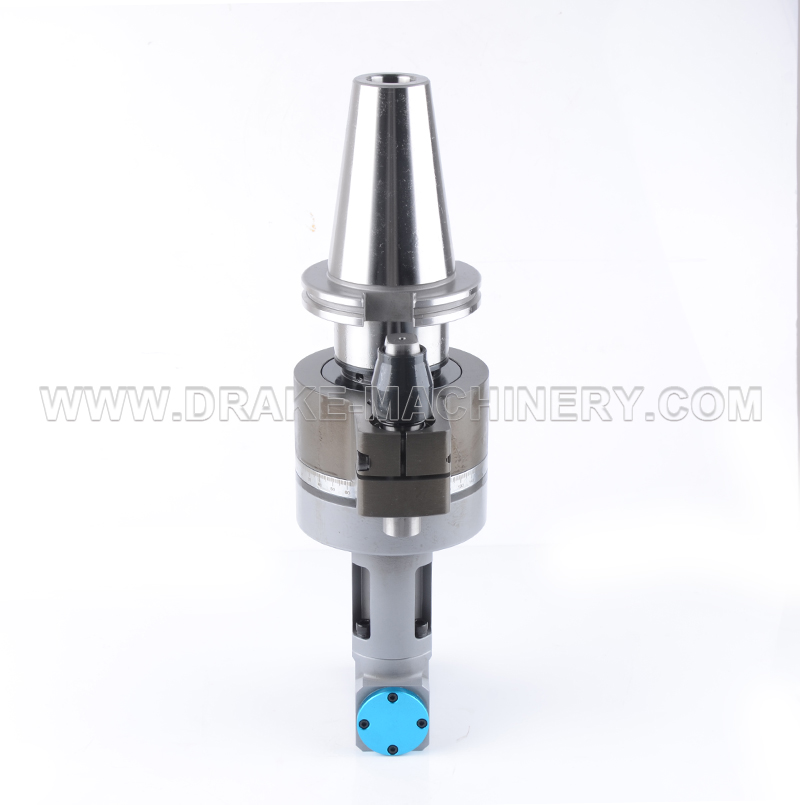

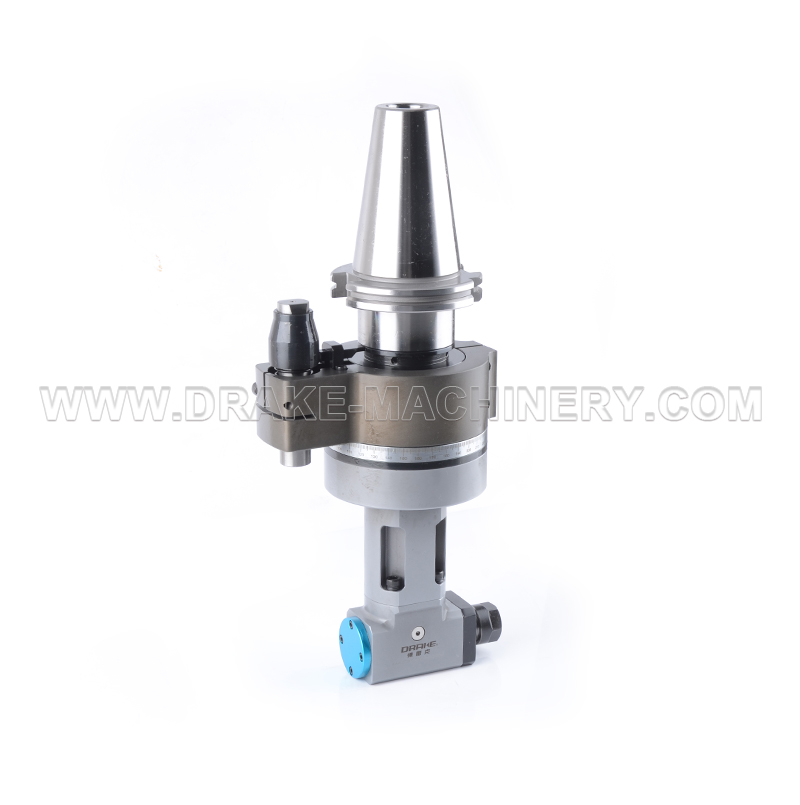

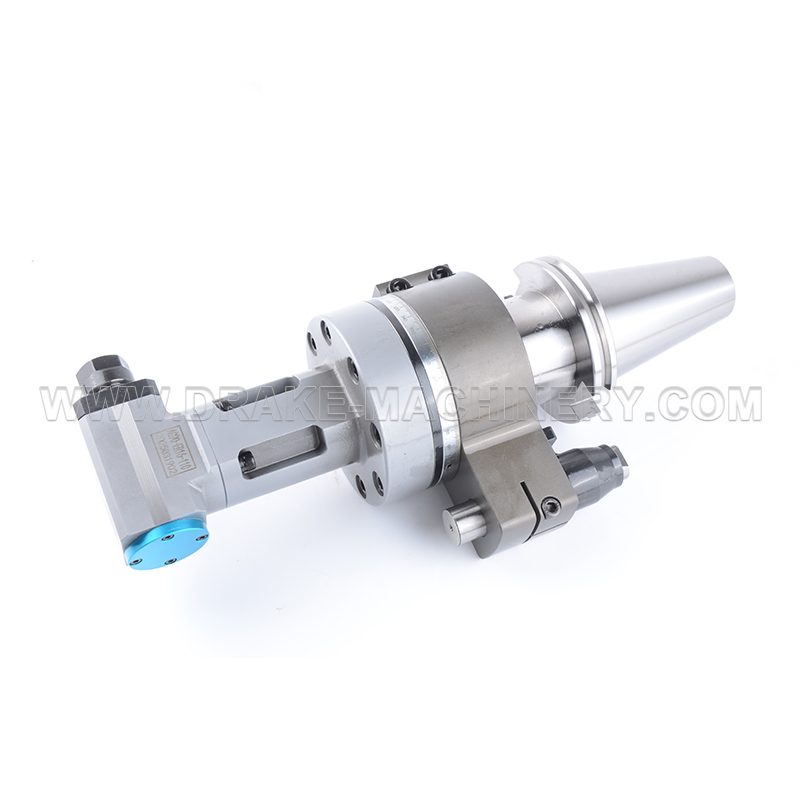

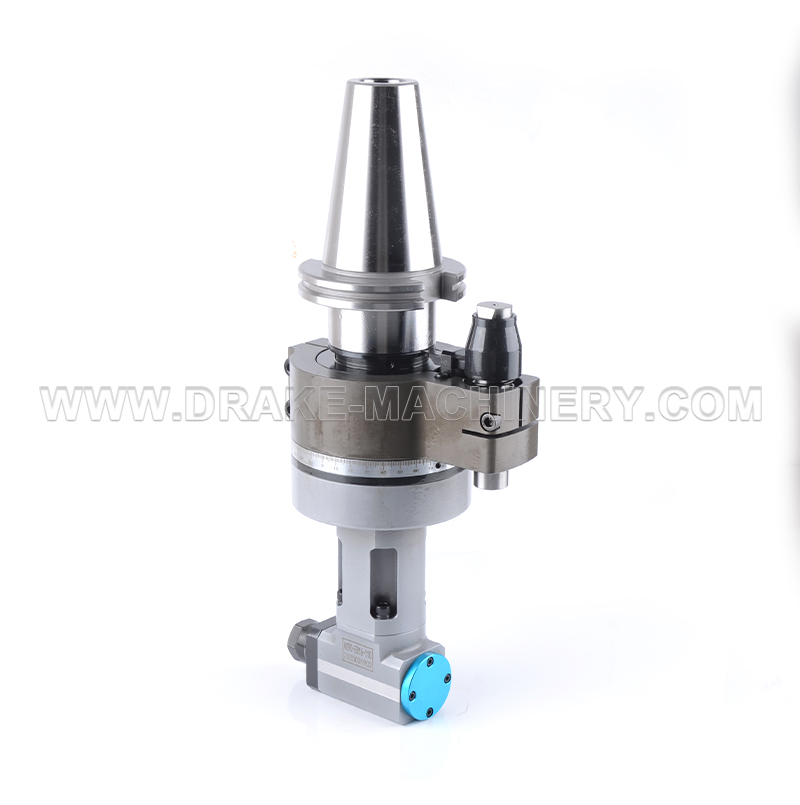

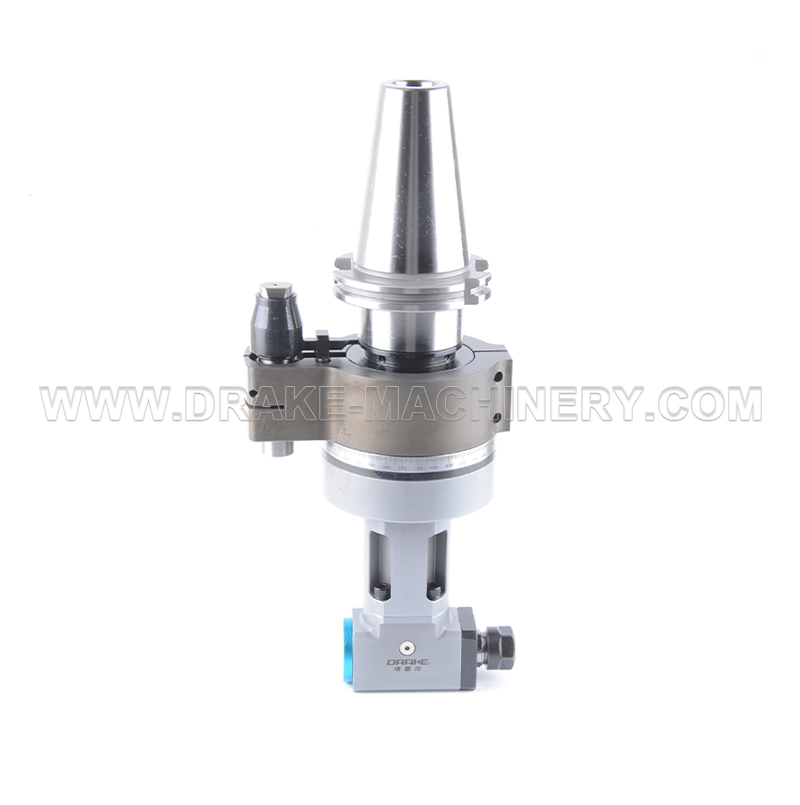

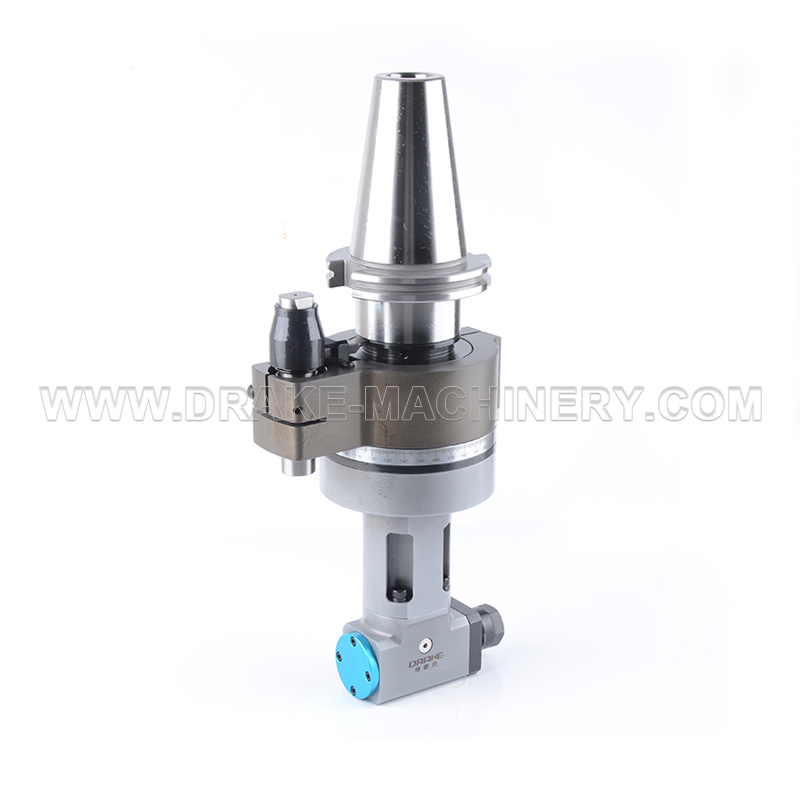

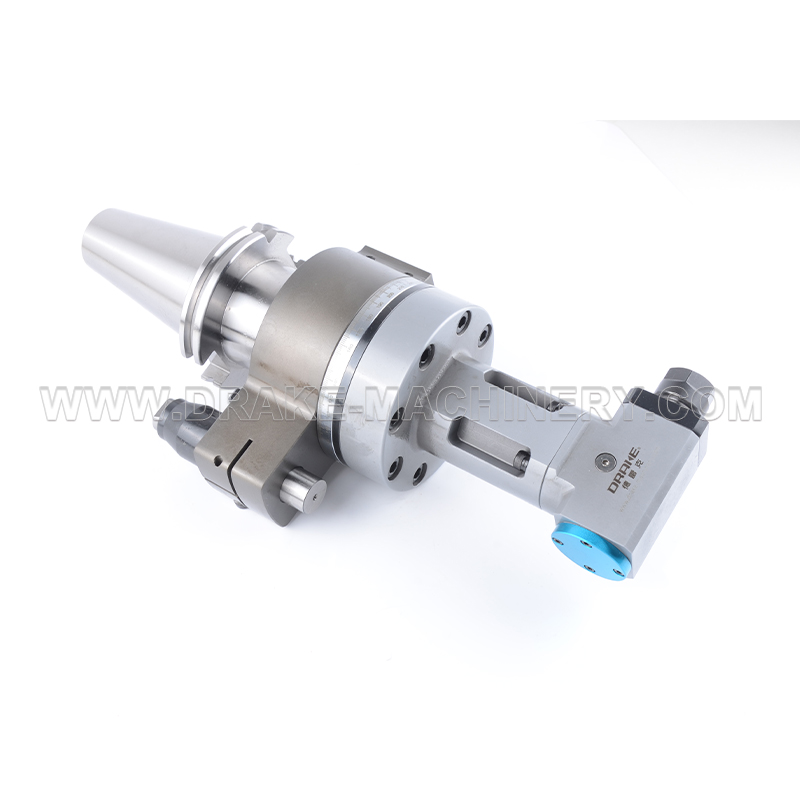

AG90-ER16

Inquire Now Next

Product Details

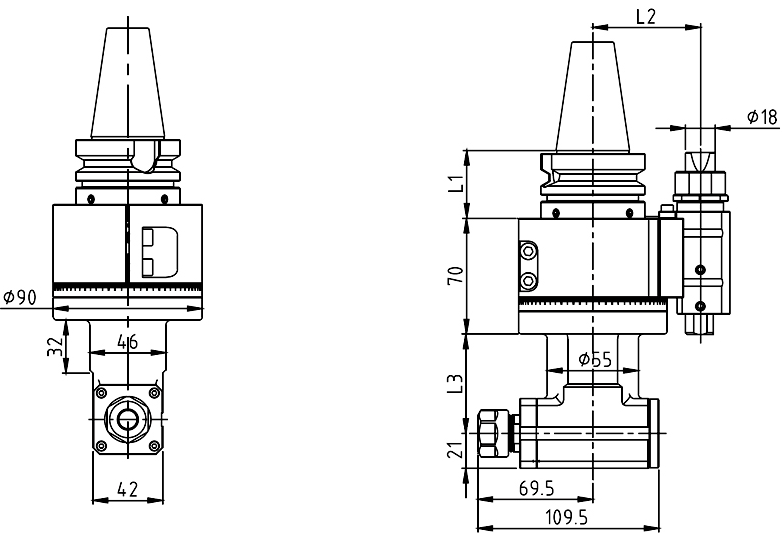

Product Size

Product Parameters

Model	Output	L1	L2	L3	Power	Maximum speed	Maximum torque	Speed ratio
AG90-ER16-60	ER 16	41/48	65/80	60	1.5Kw	4500RPM	12Nm	1:1
AG90-ER16-120	ER 16	41/48	65/80	120	1.5Kw	4500RPM	12Nm	1:1
AG90-ER16-180	ER 16	41/48	65/80	180	1.5Kw	4500RPM	12Nm	1:1
